    0.3 - 0.8mm Versatile Roof Panel Roll Forming Machine Galzed Tile Making 6m / Min

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SM-GT
    Certification : CE, SGS, ISO
    Price : negociate
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets/month
    Delivery Time : About 75 days
    • Product Details
    • Company Profile

    0.3 - 0.8mm Versatile Roof Panel Roll Forming Machine Galzed Tile Making 6m / Min

    0.3-0.8mm Thickness Versatile Roof Panel Roll Forming Machine Galzed Tile Making Machine

    Glazed tile roll forming machine metal roofing tile making machine for building material machinery is used for making the color glazed tiles in batch.This machine adopted PLC control cabinet achieved full automatic easy operation produce.

    The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance.
    The Versatile, Roman Profile, Eurotile Glazed Tile are Hot Sale in South Africa Area.

    Glazed tile Technical Parameter

    Technical Parameter
    Main Motor Power7.5kw
    Sheet Thickness0.3-0.8mm
    Sheet Width1000mm
    Roller Stations16 stations
    Way Of Drive1.2 inch single chain
    Roller Material5# forge steel, coated with chrome
    Shaft Material and DIA¢76mm, material is 45# forge steel
    Hydraulic Station Power5.5kw
    Size of the press parts2000*1800*1500mm



    Glazed tile Main Components

    S.NEquipment nameQuantity
    1.Feeding and leveling device1 set
    2.Main roll forming machine1 set
    3.5 tons passive decoiler1 set
    4.Hydraulic station1 set
    5.Control system (including control box)1 set
    6.Spare parts1 package







    0.3 - 0.8mm Versatile Roof Panel Roll Forming Machine Galzed Tile Making 6m / Min0.3 - 0.8mm Versatile Roof Panel Roll Forming Machine Galzed Tile Making 6m / Min





    Glazed tile working flow

    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 0

    Profile Drawing


    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 1
    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 2

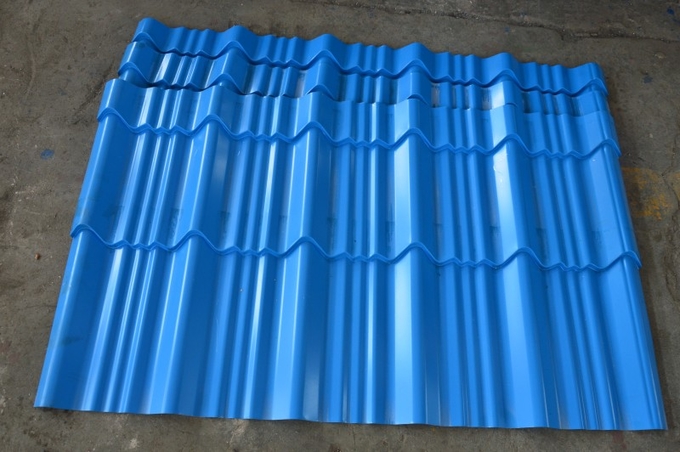

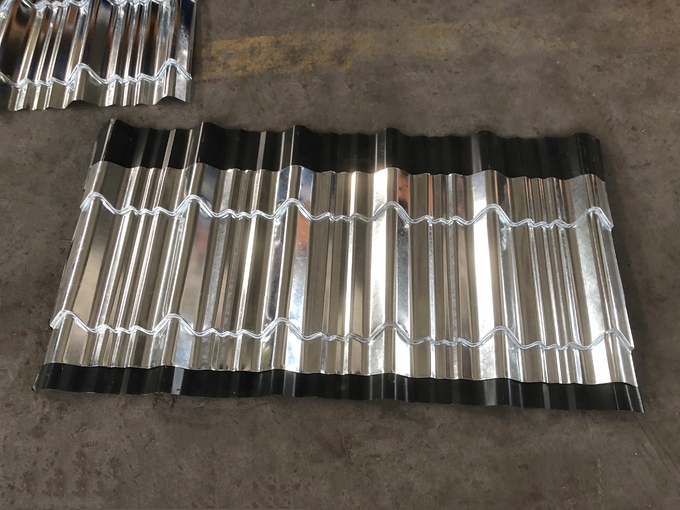

    Finished Products:

    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 3

    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 4

    Application


    The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.
    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 5
    Glazed Tile Roof Panel Roll Forming Machine 0.3mm - 0.8mm Romantile Orientile 6


    Maintance and the service of the machine


    Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily

    1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
    2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
    3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
    machine and lube in the roller surface and you need clean it when you use next time.
    4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
    rain and damp, especially electrical controlling box
    5. Cutting device should add lube to the places where need lube to the request
    6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
    shortage
    7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
