1.5-2.0mm Thickness Metal Door Frame Roll Forming Machine Steel Door Making Machine

Door Frame Technical Parameter:

1. Steel Sheet Thickness: 1.5-2mm (depend on requirement )
2. Transmission way: gear box
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 3 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 18 stations upper and 16 stations down
8. Roller Material: GCr15, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 15 Kw

12. Hydraulic power: 5.5Kw

Machine List:

Product Description

Coil inner Diameter: ￠460mm~520mm

Max out diameter of the coil: ￠800mm

Expansion: Manual with brake

Max Coil Width: 500mm

Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)

It adopts welded steel and supported roller to transmit the products.

Size:4000*1350*1000mm

Profile Drawing

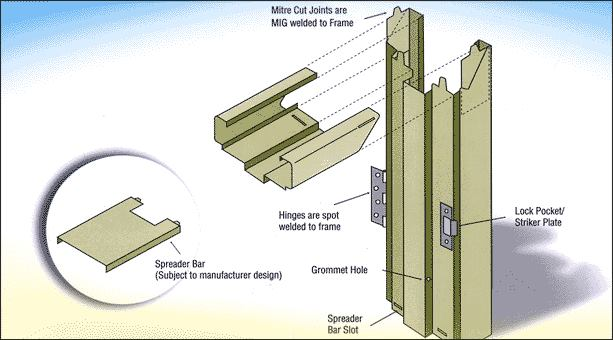

Product Application

Quality Control

1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
