Gauge18-Gauge 24 Flush Soffit Panel Metal Siding Clip Lock Roll
Forming Machine with 8Inches-12 Inches Width Adjustable

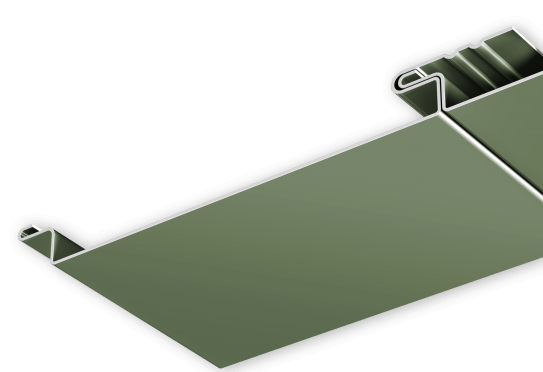

Flush Panel metal siding is ideal for, siding, soffit, fascia, and
mechanical screen applications as they have a low profile. This
product is a concealed fastened panel available in flat and vented
options, which provide a distinct design for any project. Flush
Panel is an excellent metal profile for civic, commercial, retail,
and other institutional projects.
With this long-lasting, durable, and sustainable metal siding,
you'll find it also comes in several energy-efficient colors and
paint systems. Flush Panel offers architects and building owners a
unique yet flexible design when the product is installed vertically
or combined with other building materials.
Flush Metal Soffit creates clean lines with little interruption.
Flush Soffit is traditionally used to finish out the eaves of a
roof and as part of a roof venting system with a ridge cap.
However, interior designers, builders and architects have been
drawn to the low profile, minimalist lines of this panel. Flush
Metal Soffit has started being used for everything from ceiling
panels to wall coverings to wainscots. With a large selection of
colors and finishes, Flush Metal Soffit can match almost any
project.
Technical Data:
| Item NO |
Description | UnitType | RF-RP |
| 1 | Material Thickness | mm | 0.7-1.2mm for Color coated steel
0.5-0.8mm for aluminum sheet |
| 2 | Width | mm | 8’’-12’’ adjustable by PLC automatically |
| 2 | Forming Speed | m/min | 0-12 |
| 3 | Roller stands | stands | About 16 -18 |
| 4 | Roller Material | | 45# steel, coated with chrome, fire treated, HRC 58-62 |
| 5 | Shaft diameter and materail | | Ф70, 45# steel, fire treated, HRC 58-62 |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | | According to client’s requiry |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | | Cr12mov |
| 11 | Control system | | PLC with touch screen |
| 12 | Main machine weight | T | 6-7 Ton |
| 13 | Outer specification | m | 7*1.2*1.2 |
| 14 | Transmission Type | | 1 inch chain drive |
| 15 | Voltage | | 220V, 60hz, 3 phases |
Working Flow:
Uncoiling—Feeding&Leveling&Punching—Roll
forming—Cutting—Products collecting
Machine List:
| 5 ton passive de-coiler | 1 set |
| Main roll forming machine with wheels | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 1 unit |
Profile drawing:
Application:
