Hydraulic Punching Ridge Cap Roll Forming Machine 10m / Min With Perforated Holes

10m/min Hydraulic Punching Ridge Cap Roll Forming Machine With Perforated Holes

This ridge capping roll forming machine is hot sale in South America area.

The ridges Capping were designed to cover the parting of roofs with
two slopes, and have the purpose of unifying the roof. so the ridge
capping is manufactured in the same material as the roof panels.
This means that the buildings retain their aesthetics and design.

As usual, the ridge capping is about 0.3 mm-0.8 mm thickness. This
ridge capping with perforation is hottest sale in South America.
The ridge capping can be together with the IBR 686 , R 72, R 101,
PV 4, PV 6, 5 V , Corrugated, TR 4 roof panels. If you are
interested in it, please contact us.

The Main Description:

	Items	Specifications
Material of coil	Material Thickness	0.3—0.8mm
	Un Coiler	3 tons manual
Forming system	Rolling Speed	5-10m/min
	Roller Stations	18 stations
	Roller material	45# steel, coated with chrome
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	7.5kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy customer’s require
	Control System	PLC with touch screen
	Way Of Drive	1.2 inch single chain
Packing information	Color of the machine	blue

Machine List:

3 ton passive de-coiler	1 set
Hydraulic Punching device	1 set
Main roll forming machine	1 set
Punching press mould	1 set
Control box	1 unit
Hydraulic station	1 unit
Out table	1 unit

Working Flow:

Uncoiling—Feeding—Punching— Roll forming—Cutting—Products collecting

3 Tons Passive Decoiler

* 3tons passive decoiler
* Coil inner Diameter: ￠460-520mm
* Max out diameter of the coil: ￠800mm
* Max Coil Width:500mm

Hydraulic Punching

Hydraulic Cutting

* Cutting after forming: Cut the sheet after roll forming to
required length
* Cutting motion: The main machine automatically stops and the
cutting will take place. After the cutting, the main machine will
automatically start.
* Material of blade: CR12mov with heat treatment
* Length measuring: Automatic length measuring
* Tolerance of length: 10m+/- 2mm

Output Tables

It adopts welded steel and supported roller to
transmit the products.
Size:2 meters length 2 units

Control System

* Power supplier: 220V, 60 Hz, 3Phase (adjusted with
therequestment)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)

Profile Drawing:

Hydraulic Punching Ridge Cap Roll Forming Machine Perforation 10m/Min 0

Machine Pictures:

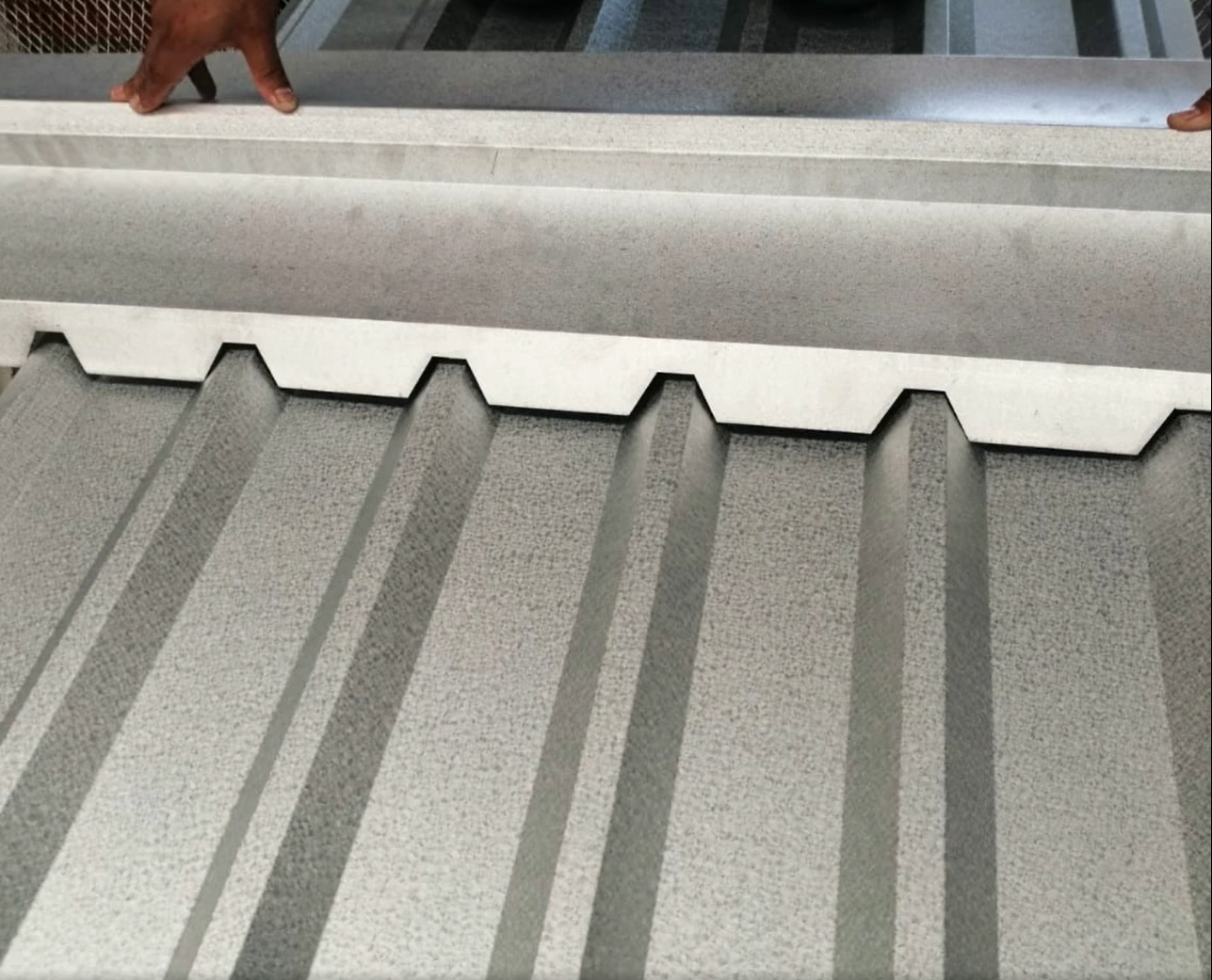

Finished Products:
