1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable

Ask Lasest Price
Brand Name :	SUSSMAN
Model Number :	SS-RS
Certification :	CE.SGS.ISO
Price :	USD65000-85000 Per Set
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	Shipped in 90 days after payment

Add to Cart

Product Details
Company Profile

1.2mm Racking Shelf Box Panel Roll Forming Machine Automatic Width Adjustable

0.7mm-1.2mm Thickness Automatically Width Adjustable Racking Shelf Box Panel Roll Forming Machine

Technical Data:
1. Materials to form: According to the customers’ requirement width
200-610mm, adjustable by PLC automatically, thickness 0.5-1.0mm,
length is variable from 0-10000mm
2. Forming steps: About 18 steps
3. Material of rollers:GCr15 steel, precision-machined, high
frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Chains’ material: 45# steel, high frequency quenching, circular
pitch: 38.1; number of teeth: 13
6. Cutting: Hydraulic cutting; quenching HRC58-62
7. Electronic control: PLC control
8. Dimension of machine: 10000mmX1000mmX900mm
10. Drive system: Chain drive, 11KW main motor power, working
speed: 3-5m/min;
11. Welding structure: material of fixed beam and walking beam:
hot-rolled steel, the base and rack are be gantry planer processing
after welded, work platform is not allowed stress deformation; main
machine table-board’s plainness ＜2mm/1000mm
12. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of
Harbin
13. Punching: Punching the holes at the press machine before
forming the shapes
14. Bending: Bending after the hydraulic cutting
Machine List:
name
quantity (set)
5 ton electrical De-coiler
1 set
Servo feeder
1 set
Hydraulic punching device
1 set
Hydraulic cutting&bending machine
1 set
Main roll forming machine
1 set
Run out table
2 sets
Control box
2 sets
Working Flow:De-coiler—→Level device —→Servo feeding—→ Hydraulic punching
notch—→Punching press —→Main roll forming machine—→Hydraulic
cutting—→Bending—→ Run out table
Profile Drawing:
Sample pictures:

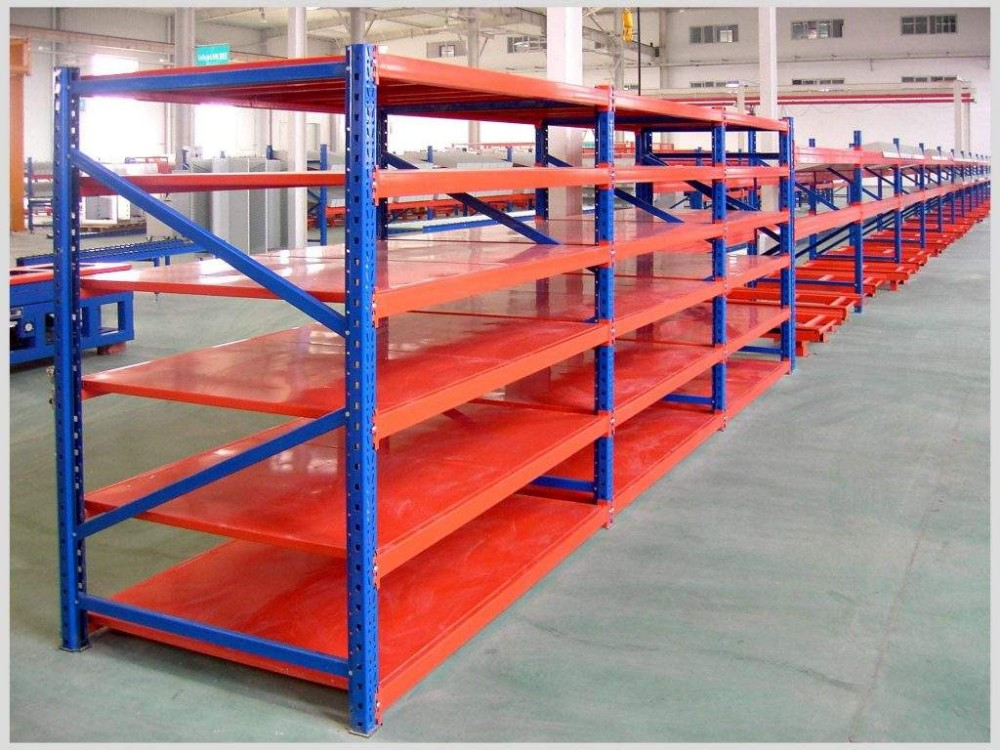

Application:

Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.

Product Tags:

Automatic Rack Panel Roll Forming Machine

1.2mm Shelf Box Roll Forming Machine

20 stations Rack Roll Forming Machine
