C Purlin Roll Forming Machine
Purlin roll forming machine is the most popular and has an
extensive use in Metal Building Systems, Roofing Solutions,
Construction and Renovation Projects etc.
This roll forming machine could produce C purlin, the profile size
can be maded Width:80-300mm, Height: 50-100mm, Thickness:2.0-3mm.
Raw material could be: cold-rolled steel, Galvanized steel,
high-tensil steel.
The finished purlins meet JIS G standard, ASTM International
Standard, AS/NZS International Standard etc.
According to your section profile, size range, thickness range we
could provide you different solutions of purlin roll forming
machine to manufacturer a complete range of structual
purlins(height and width change using automatic system by motors
The processing of Punching & Cutting has different type for
choosing: Post-Punching & Post-Cutting, Pre-Punching & Post
Cutting, Pre-Punching & Pre-Cutting.Applications of C Purlin Roll Forming MachineThe finished products are widely used as the supporter of roof and
wall in large-scale and mid-scale construction, such as factory,
warehouse, garage, exhibition center, cinema, theatre, garden and
so on.Technical Parameters:
| Features | Specifications |
|---|
| Color | Customized |
| Thickness | 2.0-3.0mm |
| Length Measurement | Encoder Measurement |
| Forming Speed | 8-12m/min |
| Total Power | About 18.5KW |
| Cutting Type | Hydraulic Cutting |
| Roller Stations | 20 Stations |
| Cutting Tolerance | ±0.5mm |
| Power Supply | 380V/3Phase/50Hz |
| Roller Material | 45# Steel |
Applications:

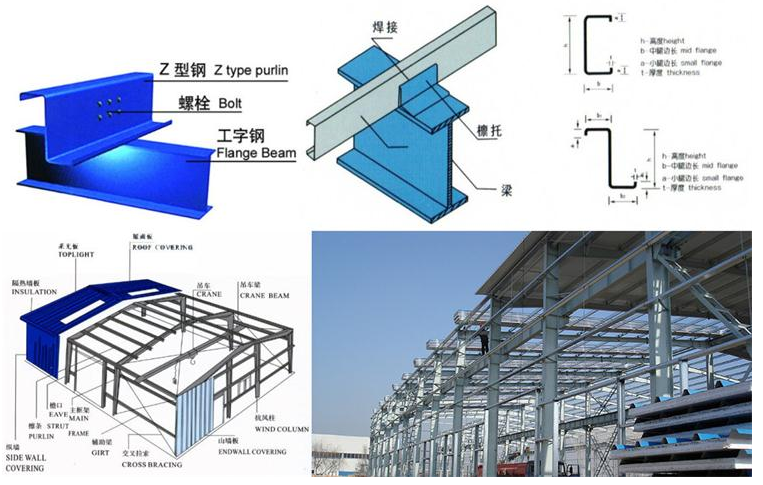

Purlins are used for building the roofs and walls to help the deck.
Bunch of rollers are used to shape the level sheet into the
necessary Purlin shape.
Structural C section Purlins are made using great tractable tensile
galvanized steel. The C purlins are in the shape of a ‘C’,
Purlin frames suit modest sheds that are of below 12 meters. It
also has less labor costs that result in maximum investments. It is
very exceptionally simple to build a shed with the help of a purlin
sheet.
Everything on the site is bolted and screwed jointly It is a
reasonably way of construction. The greatest capability of a C
Purlin shed is 24 meters. Manufactures use two C sections to brace
the shed and give increased toughness.
C purlin sheets are most appropriate for industrial buildings,
balcony, and garages. It is as well used wherever dependable steel
framing is required. It gives flexibility in selecting designs,
hence allowing customers an assortment of designing options.
Machine photo
Process Flow of C Purlin Roll Forming MachineUncoiler --- Feeding --- Straightening --- Pre-punching ---
Pre-cutting --- Roll Forming --- Exit Rack
Uncoiler --- Feeding --- Straightening --- Roll Forming --- Post
Punching --- Post Cutting --- Exit Rack
