0.5mm-0.7mm Thickness Dura Garden Fence Panel Roll Forming Machine
Sipca Metalica gard – alternative to traditional fence slats.
Like wood, the metal slat fence looks nice, but its technical
features give it a much longer lifespan.
Very low maintenance (does not require repainting, varnishing),
except for quick hose washing.
Folded edges for increased durability to mechanical deformation.
The assembly can be performed even by the final client, without the
help of a professional and without specific advanced knowledge.
It can be mounted both on flat areas and on sloping ground at any
time of the year.
The zinc layer protects the steel against corrosion and keeps the
paint layer unaffected for a long time.
Resistant to weather, direct sunlight and mechanical damage.
One of the most advantageous PRICE-QUALITY ratios.
Easy to transport, easy to assemble, easy to store.
This fence will serve you reliably for many years, without the need
for special care, does not rust and retains its appearance
throughout its life.
our roll forming machine makes Sipca Metalica gard or metal fence
slats automatically.
The fencing post consists of decoiler, notching punching, roll
forming system, and cut to length by hydraulic cutting,etc.
Technical Data
| Items | Specifications |
| Material of coil | Material Thickness | 0.5-0.7mm galvanized, G235-350Mpa |
| Un Coiler | 3 tons manual |
| Forming system | Rolling Speed | About 10-20 m/min |
| Roller Stations | About 10 stations |
| Roller Material | 45# Steel with quenching 60mm shaft
|
| Maim Motor Power | 7.5 kw |
| Hydraulic cutting Power | 3 kw |
Cutting system | Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 |
| Tolerance | +-1.5mm |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC with touch screen |
| Weight | About 3.5 tons |
| Way Of Drive | 1 inch single chain |
Machine List:
| 3 ton manual de-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting device | 1 set |
| PLC Control box | 1 set |
| Hydraulic station | 1 set |
| 4m out table | 1 set |
| Safety cover | 1 set |

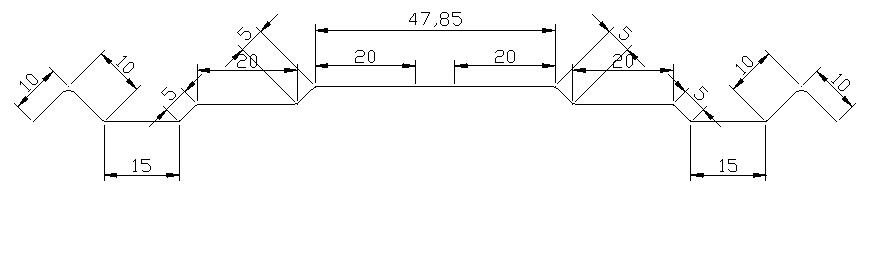

Profile Drawing:
Application:
After-sale Serive
- The seller take responsibility to installation and commissioning
of the equipment and free training. After machine arrive the
destination, by the request of the buyer , the seller will provide
1 technical engineer to guide installation and training , and the
buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation
by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should
pay for installation and commissioning fee 100$/day to the point
account of the seller. The two-way ticket,visa, food, hotel , the
translator and insurance are all should provide by buyer with full
responsibility.
-The seller supply technical data (including forming mould drawing,
electrical elements drawing and equipment drawing etc.)
