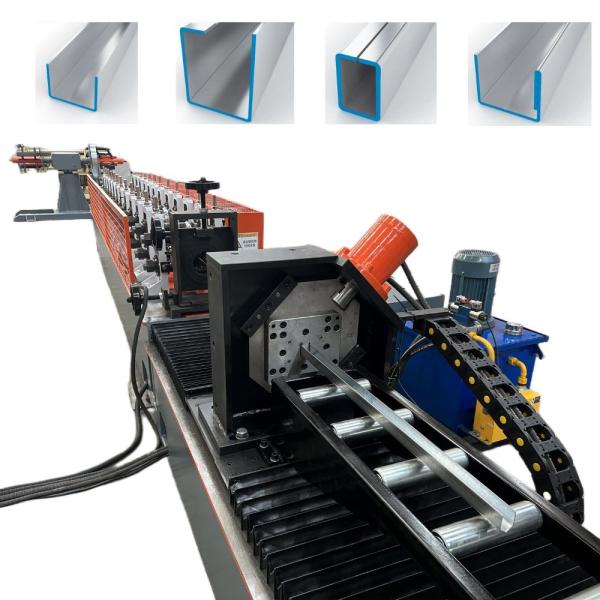

    Reinforcement Profiles Roll Forming Machine 1.0mm - 2.0mm Galvanized Steel For PVC Doors

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SS-RS
    Certification : CE.SGS.ISO
    Price : USD65000-85000 Per Set
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : Shipped in 90 days after payment
    • Product Details
    • Company Profile

    Reinforcement Profiles Roll Forming Machine 1.0mm - 2.0mm Galvanized Steel For PVC Doors


    1.0mm-2.0mm Thickness Galvanized Steel Reinforcement Profiles Roll Forming Machine for PVC UPVC Windowns Doors


    Reinforcing profile for PVC windows provides stiffness and stability of window frames and door assemblies. A steel load-bearing member installed in inner chamber of plastic extrusions increases a performance property of PVC-windows, compensates temperature changes in geometry of plastic or metal, prevents deformation.
    Items
    Specifications
    Material of coil
    Material Thickness
    1.5-2.0mm Galvanized steel
    Forming system
    Rolling Speed
    0-30m/min
    Roller Stations
    About 11 stations
    Roller Material
    Gcr15 Steel with quenching
    60mm shaft
    Shaft
    60mm
    Maim Motor Power
    11kw
    Hydraulic cutting Power
    7.5kw
    Electrical parts
    Schneider
    Cutting
    Material Of Cutting
    CR12mov with quench treatment
    system
    Hardness
    HRC58-62
    Tolerance
    +-1.5mm
    Electrical control system
    Electric Source
    220V, 60HZ,3 phase
    Control System
    PLC Delta
    Weight
    About 4 tons
    Way Of Drive
    2 inches chain
    Size of machine
    Length 8000mm* Width 800mm* Height 1000m
    Technological process:
    Uncoiling—feedingwithguide—Rollforming——servo followingCutting—Products collecting
    Machine List:
    2 tonne double heads de-coiler
    1 set
    Main roll forming machine
    1 set
    PLC Control box
    1 set
    Hydraulic station
    1 unit
    Servo following cutting device
    1 unit
    3 meters auto stacker
    1 unit

    Application:


    Main Features

    1) Easy in installation and maintenance.

    2) Hardened structural steel and components provide long life and safe operational stability.

    3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

    4) Running in an automation, high durability and stability.

    5) Compact design, meet custom demands.
