Solar Panel PV Rack Making Machine Photovoltaic Support C Channel Strut Roll Forming Machine

Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.

The C profile strut channel machine is to make size 85x150 mmm, 85x180mm, 110x120mm, 110x150mm and 110x180mm, material thickness thicknesses: 2.00 and 2.50 mm hot-dip galvanized

1, Technical data:

2, Profile Drawing:

3, Sample Pictures:

5. Machine Layout

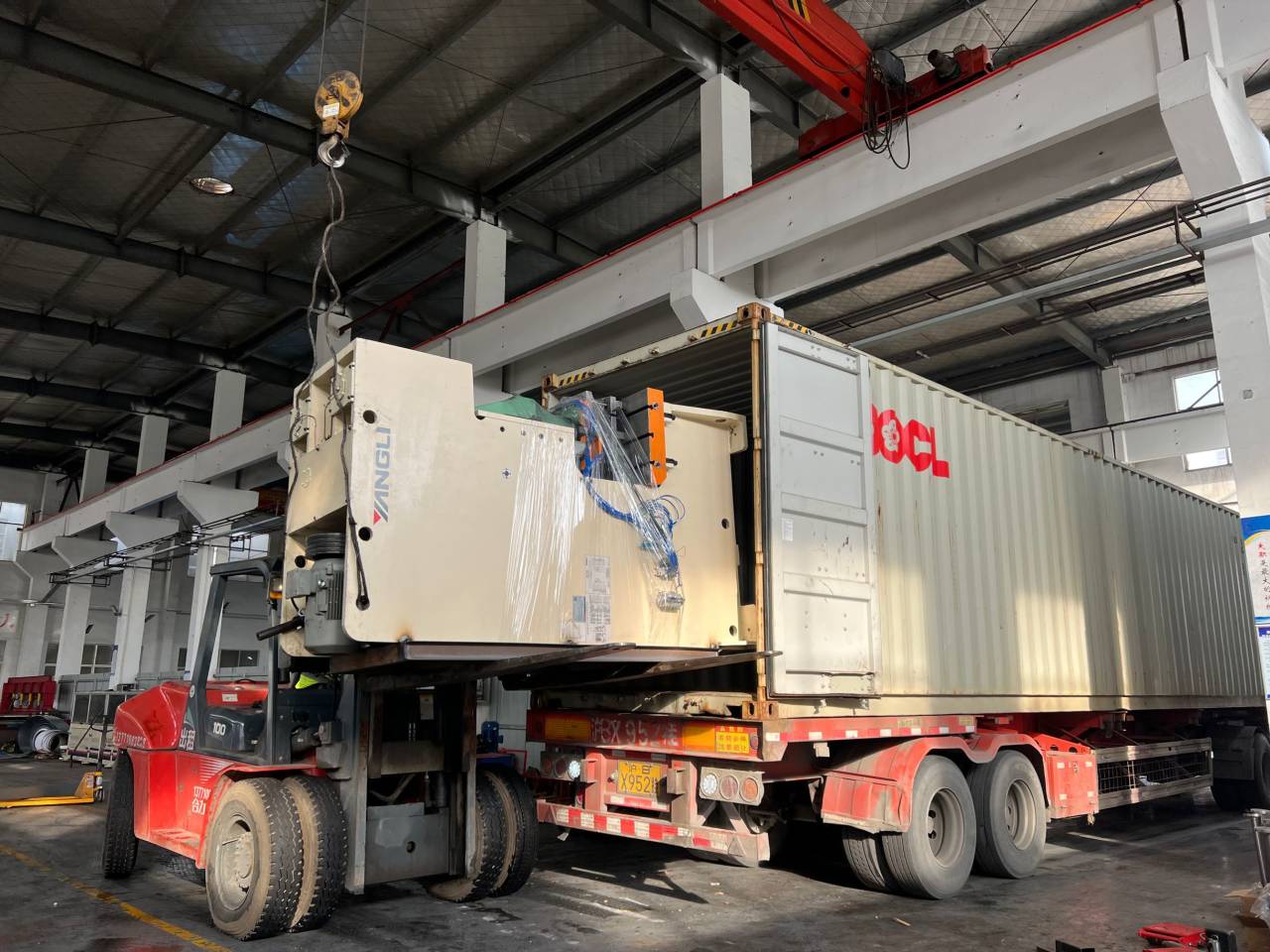

4, Loading Pictures:

5, Our Services

Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period during the production process.
4. We finish the machine within the confirmed date, and shipping the goods to customers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for installation and operation.
7. If the buyer can not make the installation or machine appeared the problems, if possible, we will arrange our engineer to debug within one week. The charge for technician include the visa, round tickers, food, accommodation and USD100/person/day for salary.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
