GI PPCGI RC-1 RC-2 Resilient Sound Furring Channel Roll Forming Machine with Punching Holes

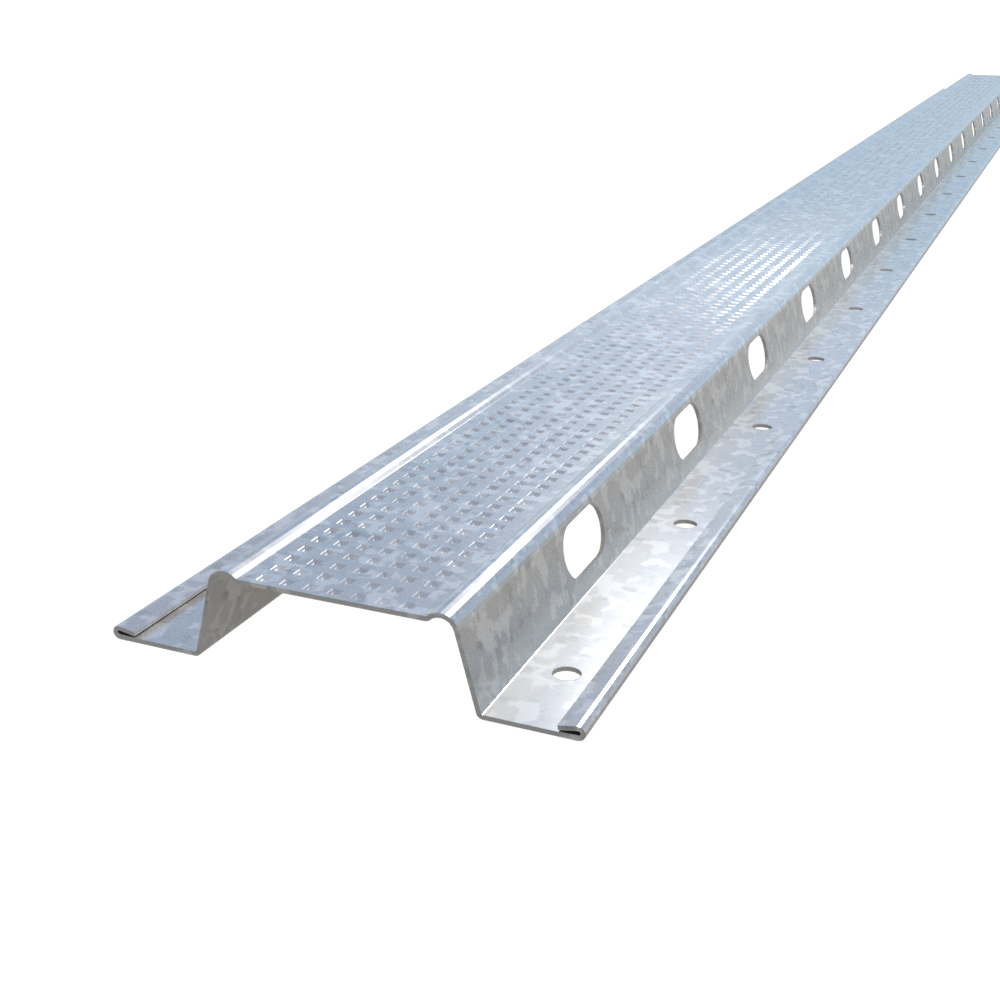

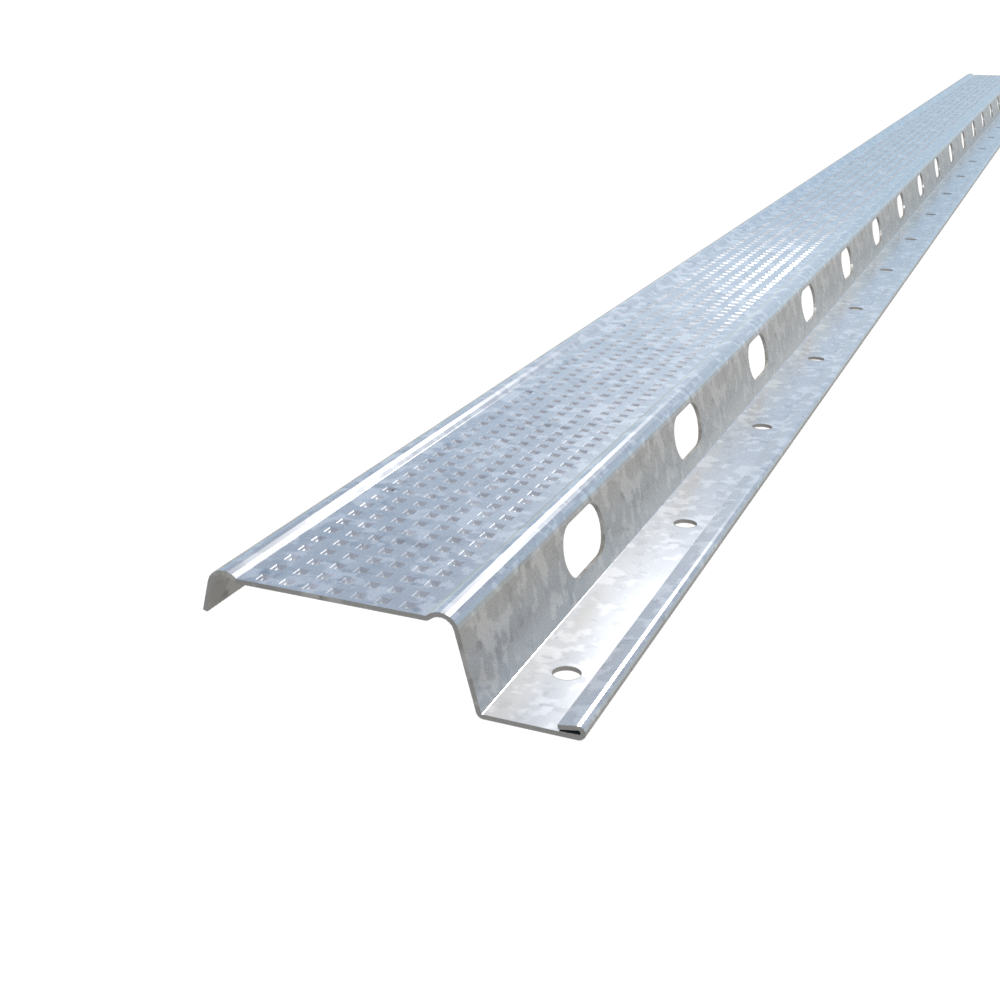

Resilient channel is a thin metal channel that is intelligently designed to substantially improve the sound insulation of drywall, sheetrock, plasterboard walls and ceilings. The channel effectively isolates drywall from the framing studwork, which results in the weakening of sound waves substantially.

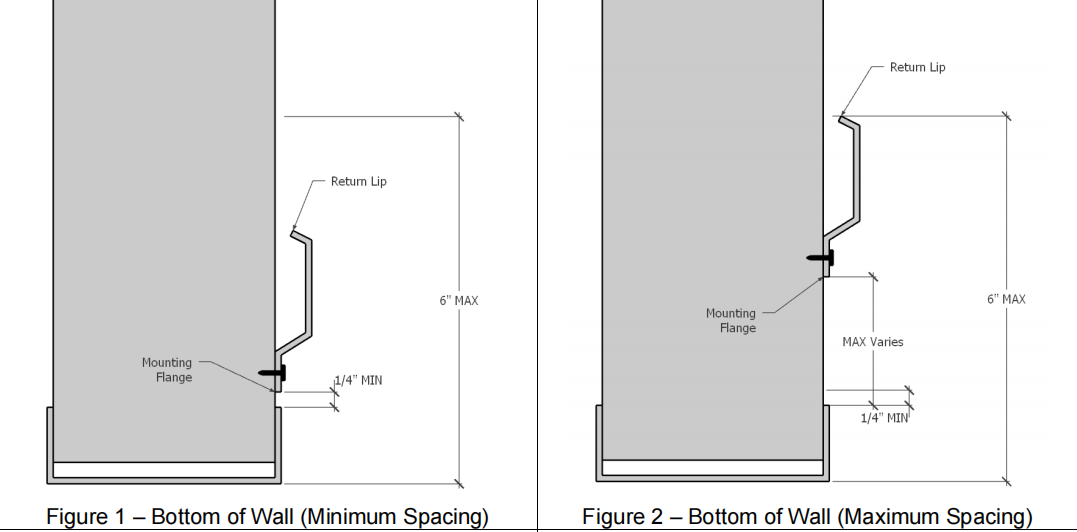

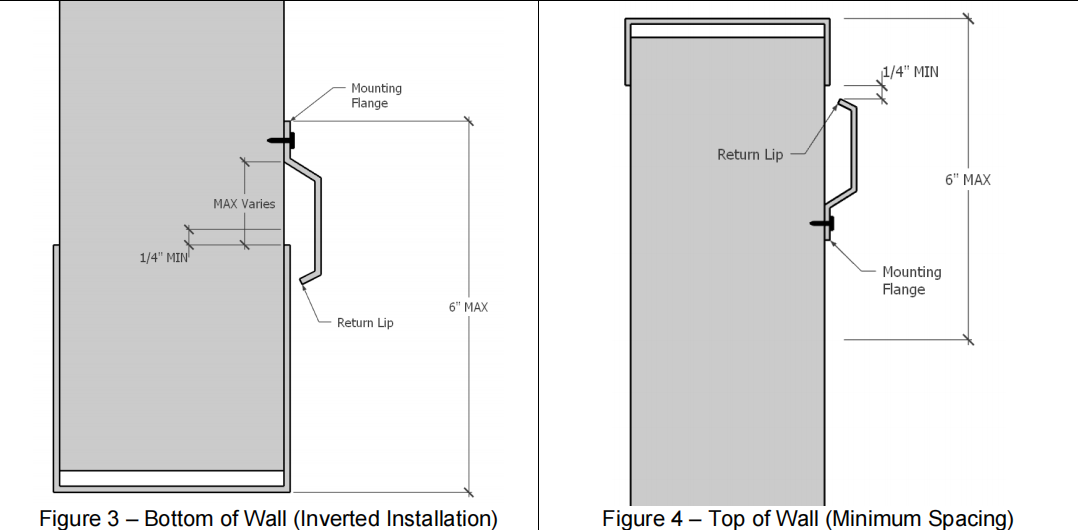

Resilient channel should be installed perpendicular to the framing members with the attachment flange of the RC-1 Pro installed along the bottom edge. Channel is pre-punched for screw attachments to wood or steel framing members. Nails are not recommended for attaching RC-1 Pro resilient channel to framing members.

RC-1,RC-2 are the most effective, low-cost methods of improving sound transmission loss through wood and steel frame partitions. It is used as a cross-furring member for resilient attachment of gypsum. Knurled face makes screw attachment of wallboard easier.

Technical Data:

Machine List:

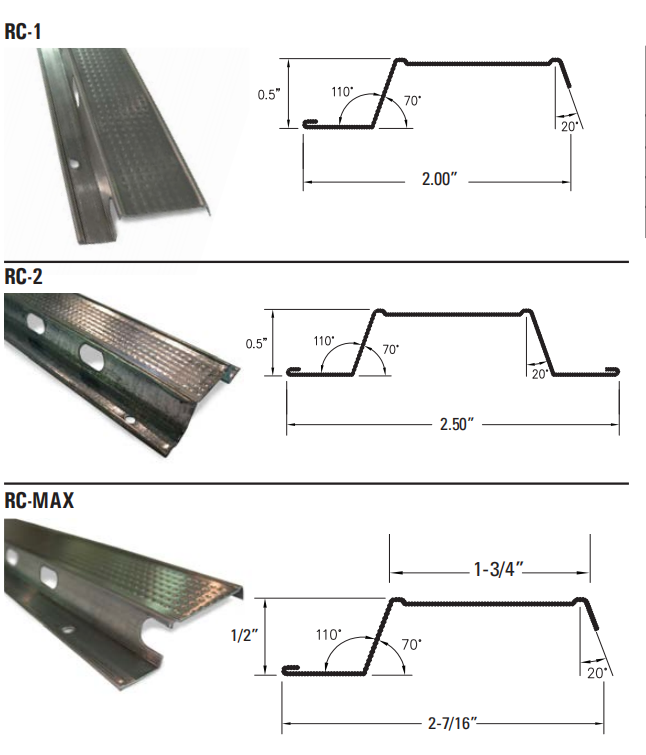

Profile Drawing:

Application:

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
