    G400 Z350 1.5-2.5mm Thicknkess Galvanized Steel Strut Channel Roll Forming Machine C Shaped Channel Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    G400 Z350 1.5-2.5mm Thicknkess Galvanized Steel Strut Channel Roll Forming Machine C Shaped Channel Roll Forming Machine

    1.5-2.5mm Thicknkess Galvanized Steel Strut Channel Roll Forming Machine C Shaped Channel Roll Forming Machine


    1. Solar Strut Channel Technical Parameter


    The strut channel machine is to make size 85*150mm, 85*180mm, and 110*150mm


    Material thickness thicknesses: 2.00 and 2.50mm hot-dip galvanized, G400 Z350


    Also can do inturned edges with teeth And the machine is according to the EN 2081:2011 or EN ISO 4042:2001


    Machine Specifications
    WeightAbout 10000kgs
    SizeAbout 20m x 1.0m x 1.0m (length x width x height)
    ColorMain color: blue
    Warning color: yellow
    Suitable Raw Material
    MaterialGalvanized steel
    Thickness1.5-2.5mm
    Yield Strength235Mpa
    Main Technical Parameters
    Quantity of forming rollers stations18-20
    Diameter of forming rollers shafts75mm
    Working Speed8-12m/min
    Forming rollers materialGr15 mould steel, with quenched treatment
    Cutter materialCR12 mould steel, with quenched treatment
    Controlling systemPLC and Converter
    Electric Power requirementMain motor power: about 22 kw
    Hydraulic stationMotor 5.5kw

    2. Solar Strut Channel Machine Components


    Solar photovoltaic strut roll forming machine can produce several shape products as profile.


    The different size of channel is adjusted automatically.


    When change different specification, need to change the cutting mould.


    S.NEquipment nameQuantity
    15T hydraulic un-coiler with coil car1 set
    2Welder & cutting device1 set
    3Main roll forming machine1 unit
    4Punching press machine with servo feeder1 set
    5Hydraulic cutting1 set
    6control box1 set
    7Out tables2 units

    4. Solar Strut Channel Application


    1.These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

    2.Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. S

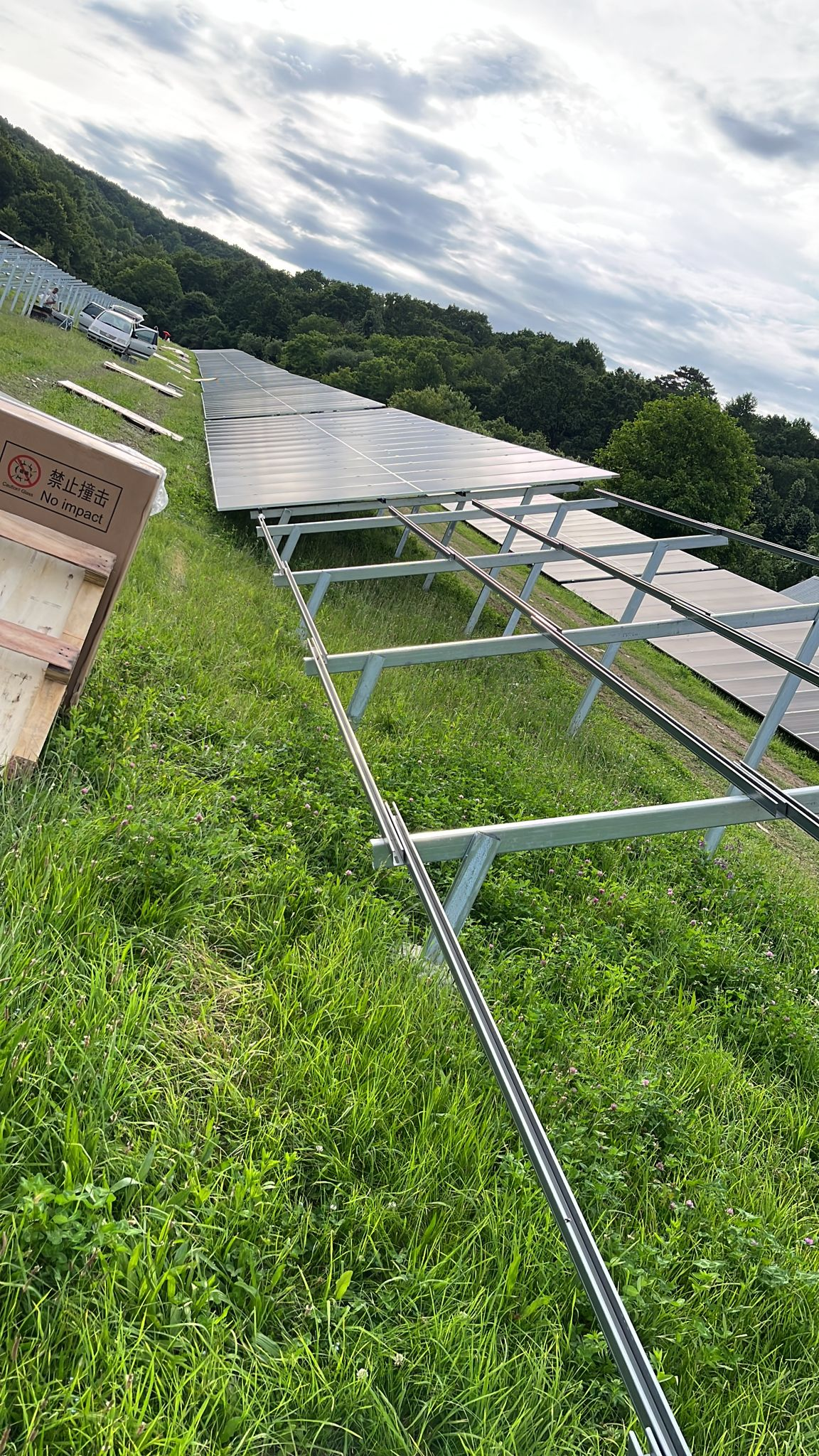

    3.Solar frame panel is used to mount, brace, support, and connect lightweight structural loads in building construction.


    5. Machine photo
