    Automatically Punching PU Shutter Door Roll Forming Machine Flat Injection 24 * 0.6 * 0.9m

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SS-PUSD
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 65-75 days after deposit
    • Product Details
    • Company Profile

    Automatically Punching PU Shutter Door Roll Forming Machine Flat Injection 24 * 0.6 * 0.9m

    24*0.6*0.9m 8 - 15m/min Automatically Punching PU Shutter Door Roll Forming Machine Flat Injection

    Automatically Punching PU Shutter Door Roll Forming Machine Flat Injection 24 * 0.6 * 0.9m


    PU Shutter Door Technical Parameter

    item
    value
    Condition
    New
    Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    Weight (KG)
    5000
    Showroom Location
    Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Nigeria, Japan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand
    Video outgoing-inspection
    Provided
    Machinery Test Report
    Provided
    Marketing Type
    Ordinary Product
    Warranty of core components
    1 Year
    Core Components
    报警锁
    Place of Origin
    China
    Jiangsu
    Brand Name
    SUSSMAN
    Warranty
    1 Year
    Name
    Metal Shutter Door Roll Forming Machine
    Material Thickness
    0.27-0.4mm galvanized
    Decoiler
    3 Tons
    Rolling Speed
    8-12 m/min
    Roller Stations
    About 36 stations
    Roller Material
    Gcr15# Steel with quenching 60mm shaft
    Maim Motor Power
    7.5KW
    Hydraulic cutting Power
    4KW
    Control System
    PLC with touch screen
    Way Of Drive
    Chain Driving

    1. Steel Sheet Thickness: 0.27-0.4mm (depend on requirement )

    2. Cutting: fly saw cutting

    3. Transmission way: chain

    4. Material of blad: Cr12, quenching treatment

    5. Capacity of Decoiler: 3 ton hydraulic decoiler

    6. Forming Speed: 8-15m/min

    7. Roller Groups: 46 stations

    8. Roller Material: GCr15 grade steel, quenching treatment

    9. Material: color-coated galvanized steel

    10. Principal Axis: 45# high grade steel with quenching treatment

    11. Main Motor Power: 11 Kw


    PU Shutter Door Main Components


    S.N

    Equipment name


    Quantity
    1.

    3T manual un-coiler


    1 set
    2.

    Guide and leveling device


    1 set
    3.

    Main roll forming machine


    1 set
    4.

    Foaming machine(just foamed one owned)


    1 set
    5.

    Straighten device


    1 set
    6.

    Control system (including control box)


    1 set
    7.

    Out tables


    2 sets
    8.

    Fly saw cutting


    1 set
    9.

    Spare parts and tools


    1 set

    Advantage for PU Shutter Door


    1. Reasonable Price

    2. High Quality

    3. 12 Months Warranty

    4. More Than 10 Years Experience

    5. Durable

    6. Reliable


    Working Flow of PU Shutter Door


    Decoiler--feedingdevice--mainforming--PU injection--straightendevice--punching--FlysawCutting ---run out table



    Profiles of PU Shutter Door








    Loading Pic.


    Packing & Delivery
    1. A 40 feet container is required

    2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film

    3. Spare parts and some small parts packed in plastic tooling box

    4. All Components Fixed by steel wire with Container.


    42mm Cutting Power 4KW PU Foam Rolling Shutter Door Forming Machine With Material Thickness 0.7-1.0mm 442mm Cutting Power 4KW PU Foam Rolling Shutter Door Forming Machine With Material Thickness 0.7-1.0mm 5

    42mm Cutting Power 4KW PU Foam Rolling Shutter Door Forming Machine With Material Thickness 0.7-1.0mm 642mm Cutting Power 4KW PU Foam Rolling Shutter Door Forming Machine With Material Thickness 0.7-1.0mm 7

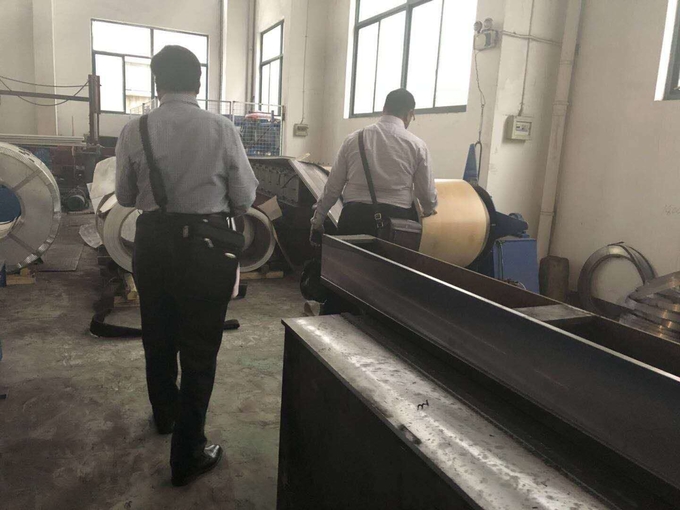

    Customes Visiting


    Aluminum Alloy 55mm PU Foam Roller Shutter Door Roll Forming Machine With Hydraulic Cutting 7Aluminum Alloy 55mm PU Foam Roller Shutter Door Roll Forming Machine With Hydraulic Cutting 8

    A PU (polyurethane) garage door refers to a type of insulated garage door that utilizes polyurethane foam as the insulating material. Polyurethane is a highly effective insulator, providing several benefits for garage doors:

    Benefits of PU Garage Doors

    1. Energy Efficiency:
    - Polyurethane has a high R-value (a measure of thermal resistance), which means it provides excellent insulation. This helps to keep your garage and home warmer in the winter and cooler in the summer, reducing energy costs.

    2. Strength and Durability:
    - Polyurethane foam adds strength to the door panels, making them more resistant to dents and damage. This results in a longer lifespan for the door.

    3. Noise Reduction:
    - The insulation provided by polyurethane can also reduce noise, both from the operation of the garage door and from outside sources. This can be especially beneficial if you have living spaces adjacent to or above the garage.

    4. Aesthetic Appeal:
    - PU-insulated garage doors often have a more substantial, solid feel and can be finished with a variety of materials and designs to enhance the curb appeal of your home.

    Types of PU Garage Doors

    1. Sectional Garage Doors:
    - Made up of several horizontal sections hinged together, these doors are typically well-suited for insulation with polyurethane. They offer a smooth, quiet operation and are available in various styles and finishes.

    2. Roll-Up Garage Doors:
    - These doors roll up into a coil above the opening and can be insulated with polyurethane to improve thermal performance and durability.

    Choosing a PU Garage Door

    When selecting a polyurethane garage door, consider the following:

    1. R-Value:
    - Look for a high R-value to ensure maximum insulation performance.

    2. Material and Finish:
    - Decide on the exterior finish, which can range from steel, wood, or composite materials, depending on your aesthetic preferences and budget.

    3. Size and Fit:
    - Ensure that the door fits properly in your garage opening to maximize insulation benefits.

    4. Cost:
    - While PU-insulated doors may be more expensive initially, the energy savings and durability can make them cost-effective in the long run.

    5. Professional Installation:
    - Proper installation is crucial for the performance of an insulated garage door. Consider hiring a professional to ensure the door is installed correctly.

    Maintenance Tips

    1. Regular Cleaning:
    - Keep the door clean by washing it with mild detergent and water to remove dirt and debris.

    2. Lubrication:
    - Lubricate the moving parts of the garage door, such as hinges, rollers, and tracks, to ensure smooth operation.

    3. Inspection:
    - Periodically inspect the door for any signs of wear or damage and address any issues promptly to maintain its performance.

    4. Weatherstripping:
    - Check and replace weatherstripping around the door to ensure a tight seal and prevent drafts.

    By choosing a polyurethane-insulated garage door, you can enjoy improved energy efficiency, noise reduction, and enhanced durability, making it a valuable addition to your home.
