Product Description:

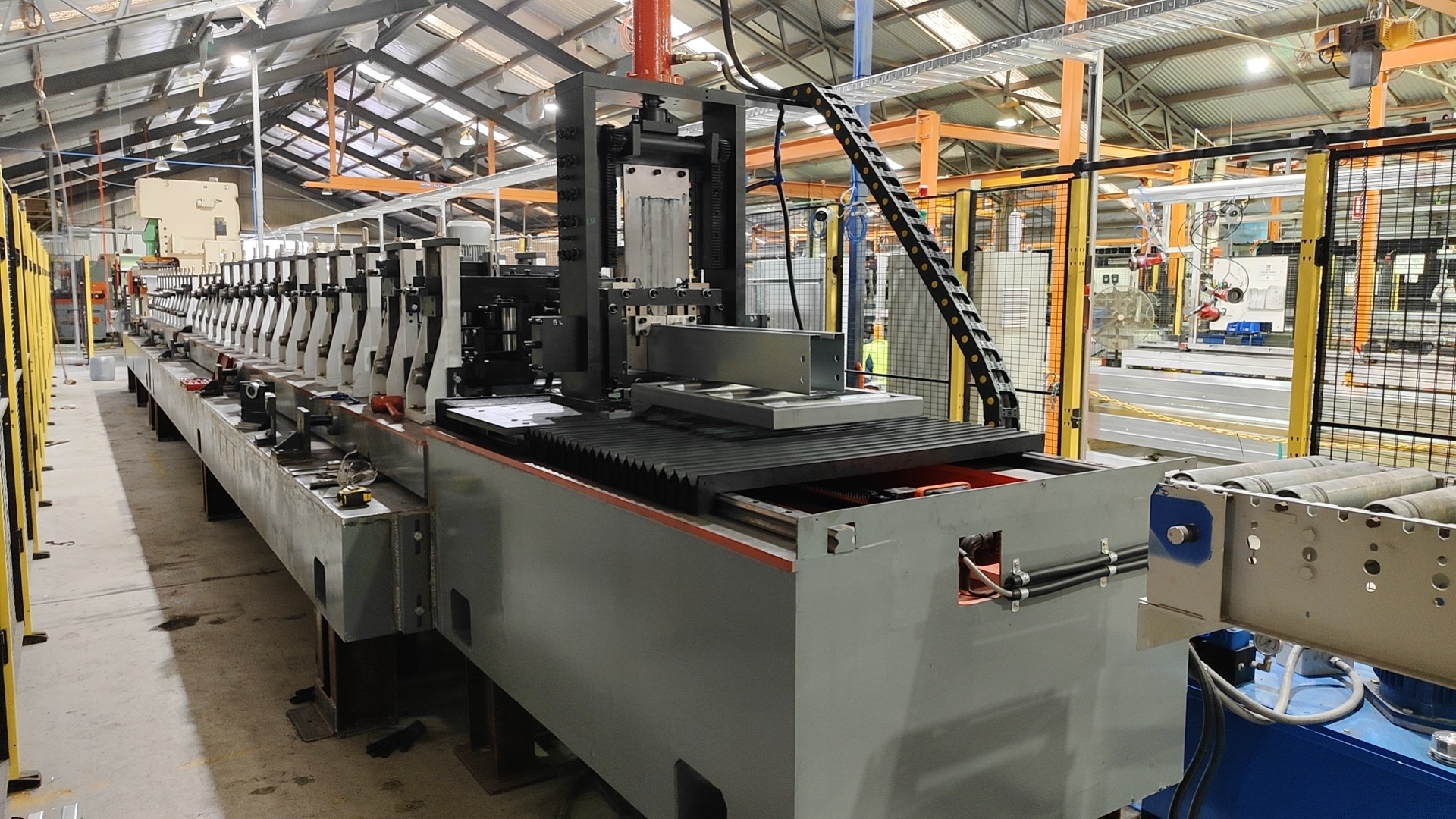

Strut Channel Roll Forming Machine is a high-efficiency and
reliable equipment for producing strut channels. It is driven by a
gear box drive and adopts a punching press system for punching
holes in the strut channel, allowing for a wide range of thickness
from 1mm to 3mm. The machine is also adjustable in width, ranging
from 70mm to 110mm, and has a working speed of 5-6 meters per
minute. With its advanced design and features, this Strut Channel
Roll Forming Machine is ideal for producing strut channels with
high precision and stability.
Features:
- Product Name: Strut Channel Roll Forming Machine
- Roller Material: 45# Steel
- Punching system: Punching Press
- Forming Steps: About 22 Stations
- Working Speed: 5-6 Meters /min
- Type: Strut Channel Roll Forming Machine
Technical Parameters:
| Parameters | Details |
|---|
| Type | Strut Channel Roll Forming Machine |
| Weight | 3T |
| Driven system | Gear Box Drive |
| Decoiler | Hydraulic Decoiler |
| Height | 150-180mm Adjustable |
| Working Speed | 5-6 Meters /min |
| Forming Speed | 0-12m/min |
| Punching system | Punching Press |
| Material | Galvanized Steel,45# Advanced Steel, |
| Control system | PLC Panasonic With Touch Screen |
Applications:
The Strut Channel Roll Forming Machine is produced by Sussman with the model number of RF-ST. It is
developed and manufactured in Wuxi, China and is certified with CE,
SGS and ISO. This machine is equipped with a PLC Panasonic touch
screen control system and a hydraulic station power of 5.5KW. The
adjustable height of the machine is between 150-180mm and the
adjustable width is between 70-110. Additionally, it is equipped
with a hydraulic decoiler. This strut roll forming machine is
suitable for forming a variety of strut channels with high accuracy
and high production efficiency. The strut channel forming machine
is ideal for producing high quality strut channels for
construction, building, and industrial use. Additionally, the strut
channel rolling forming machine is able to produce a wide range of
strut channels with adjustable size, length, shape, and thickness.
It is a reliable and cost-effective solution for forming strut
channels.
Support and Services:
We provide technical support and service for the Strut Channel Roll
Forming Machine. Our technical support team is available 24/7 to
answer your questions and provide assistance. We use only the
highest quality parts and materials to ensure the longevity of the
machine. Our services include on-site installation, maintenance,
and repairs. We also offer training for operators and technicians
to help them become familiar with the machine's functions and
features. We strive to provide the best customer service and
technical support to ensure the highest satisfaction with your
purchase.
FAQ:
Q1: What is Strut Channel Roll Forming Machine?
A1: Strut Channel Roll Forming Machine is a production line used
for forming cold-rolled steel plates into strut channels of
different shapes and sizes.
Q2: What is the brand name and model of Strut Channel Roll Forming
Machine?
A2: The brand name is Sussman and the model is RF-ST.
Q3: Where is Strut Channel Roll Forming Machine made?
A3: Strut Channel Roll Forming Machine is made in Wuxi, China.
Q4: Does Strut Channel Roll Forming Machine have any
certifications?
A4: Yes, Strut Channel Roll Forming Machine is certified by CE,
SGS, and ISO.
Q5: What materials can Strut Channel Roll Forming Machine produce?
A5: Strut Channel Roll Forming Machine can produce strut channels
out of cold-rolled steel plates.
