Product Description:

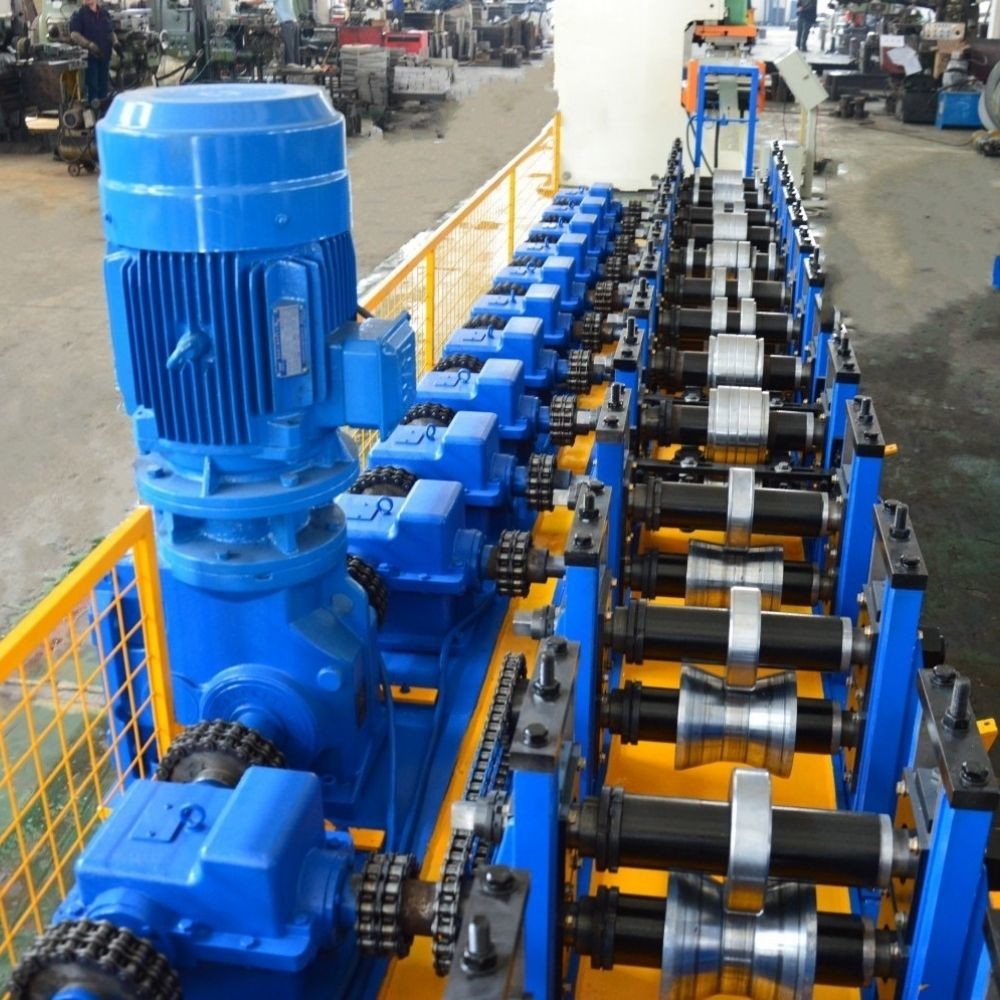

The Strut Channel Roll Forming Machine is a versatile and efficient
roll forming equipment, designed to craft strut channels with high
precision and speed. This roll forming machine is powered by a
5.5KW hydraulic station and controlled by a PLC Panasonic with
touch screen, allowing for a maximum forming speed of up to
12m/min. With a size of 7000*1000*1500mm, this machine is an ideal
choice for manufacturing strut channels with exceptional accuracy
and uniformity. Moreover, this Strut Roll Forming Machine is
equipped with an advanced rolling forming system, allowing for the
production of strut channels with superior quality and precision.
Features:
- Product Name: Strut Channel Roll Forming Machine
- Height: 150-180mm Adjustable
- Voltage: 380V/50Hz/3Phase
- Width: 70-110 Width Adjustable
- Size: 17000*1000*1500mm
- Weight: 15T
Technical Parameters:
| Parameter | Value |
|---|
| Roller Material | 45# Steel |
| Driven system | Gear Box Drive |
| Hydraulic Station Power | 5.5KW |
| Working Speed | 5-6 Meters /min |
| Material | Galvanized Steel,45# Advanced Steel |
| Decoiler | Hydraulic Decoiler |
| Main Motor Power | 18.5KW |
| Thickness | 1-3.0mm |
| Control system | PLC Panasonic With Touch Screen |
| Forming Speed | 0-12m/min |
Applications:
The Strut Channel Roll Forming Machine from Sussman is an ideal choice for your production needs. Model RF-ST is made from advanced materials, such as galvanized steel and 45#
advanced steel, and produced in Wuxi, China, with CE, SGS, ISO certification. The machine has a main motor power of 18.5KW and a forming speed of 0-12m/min, while the control system is PLC Panasonic with touch screen, allowing for a maximum working speed of 5-6 meters/min.
Support and Services:
Strut Channel Roll Forming Machine Technical Support and Service
We are committed to providing our customers with the best technical
support and service for our Strut Channel Roll Forming Machine. Our
team of experienced professionals is available to answer questions
and provide technical guidance to ensure you get the most out of
your machine.
We offer a range of services to meet your needs, including:
- Installation and training
- Troubleshooting and repair
- Maintenance and upgrades
- Spare parts and consumables
- Product care and support
- Software updates
If you have any questions or need assistance with your Strut
Channel Roll Forming Machine, please don’t hesitate to contact us.
Our team is here to help.
FAQ:
- Q: What is Strut Channel Roll Forming Machine?
- A: Strut Channel Roll Forming Machine, produced by Sussman, is a
roll forming machine designed for producing strut channel, which is
a kind of structural framing system.
- Q: What is the model number of Strut Channel Roll Forming Machine?
- A: The model number of Strut Channel Roll Forming Machine is RF-ST.
- Q: Where is the Strut Channel Roll Forming Machine made?
- A: Strut Channel Roll Forming Machine is made in Wuxi, China.
- Q: What certifications does Strut Channel Roll Forming Machine
have?
- A: Strut Channel Roll Forming Machine is certified with CE, SGS,
and ISO.
- Q: What materials can Strut Channel Roll Forming Machine make?
- A: Strut Channel Roll Forming Machine is mainly used for producing
strut channel, which is made of pre-galvanized steel, stainless
steel, aluminum, and other metal materials.
