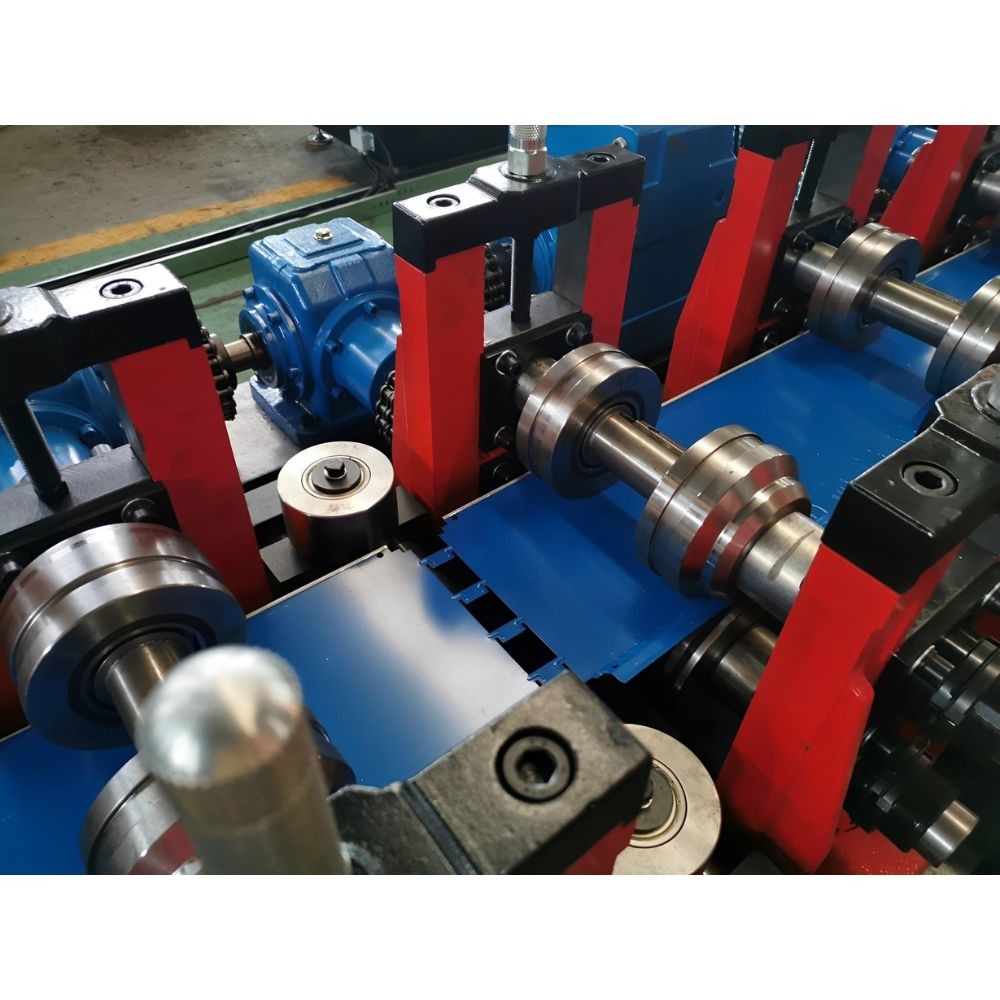

Product Description:
Our Rack Roll Forming Machine is a high-quality equipment specially
designed for rack forming. It is equipped with a gearbox drive
system, 5.5KW hydraulic cutting power, 14 stations forming station,
PLC control system and 45# steel rollers. It offers precise forming
and cutting with outstanding performance. This rack forming device
enables you to produce high-quality racks with no deformation or
damage. It is highly reliable and cost-effective, suitable for a
wide range of industries. With this rack forming machine, you can
achieve a fast and efficient production of racks with excellent
accuracy, making it ideal for both small-scale and large-scale
productions.
Features:
- Product Name: Rack Roll Forming Machine
- Forming Thickness: 0.5-1.0mm
- Drive system: Gearbox
- Power supply: 380V, 50Hz, 3Phase
- Forming Width: 100mm, 200mm
- Material: 0.5-0.9mm Galvanized Steel, PPGI
- Roll Forming Equipment: for creating custom-shaped metal parts
- Roll Forming Apparatus: highly accurate and precise
- Roll Forming Machine: for high speed production and maximum
efficiency.
Technical Parameters:
| Specification | Details |
|---|
| Roller Material | 45# Steel |
| Dirve system | Gearbox |
| Hydraulic Cutting Power | 5.5KW |
| Forming Motor Power | 7.5KW |
| Cutting Length | 3-6m |
| Control System | PLC |
| Material | 0.5-0.9mm Galvanized Steel, PPGI |
| Forming Station | 14 Stations |
| Power supply | 380V, 50Hz, 3Phase |
| Forming Width | 100mm, 200mm |
| Device | Rack Forming Device, Roll Forming Apparatus, Rack Forming Machine |
Applications:
Rack Roll Forming Machine, manufactured by Sussman Machinery (Model
Number: SM-SD-048), is a superior roll forming apparatus that
originates from Wuxi, China. It is certified by CE SGS ISO and
requires minimum order quantity of 1 SET. Price for this roll
forming equipment is discussed upon request. The packaging details
include naked packaging with steel, and it generally requires 60
days for delivery. The payment terms are TT/LC and it has a supply
ability of 20 sets. The forming width of this roll forming machine
is 100mm, 200mm, and it features 14 stations. It is able to process
0.5-0.9mm galvanized steel, PPGI materials. The control system is
PLC, and the cutting length is 3-6m.
Customization:
Customized Rack Forming Machine from Sussman Machinery (Model:
SM-SD-048)
Brand Name: Sussman Machinery
Model Number: SM-SD-048
Place of Origin: Wuxi
Certification: CE SGS ISO
Minimum Order Quantity: 1 SET
Price: Discussed
Packaging Details: Naked packaging with steel
Delivery Time: 60 days
Payment Terms: TT/LC
Supply Ability: 20 sets
Power Supply: 380V, 50Hz, 3Phase
Weight: 5T
Forming Motor Power: 7.5KW
Control System: PLC
Forming Width: 100mm, 200mm
We provide customized Rack Forming Machine from Sussman Machinery
(Model: SM-SD-048), with CE SGS ISO certification, minimum order
quantity of 1 SET. Price is discussed. Naked packaging with steel,
delivery time about 60 days. Payment Terms: TT/LC, Supply Ability:
20 sets, power supply: 380V, 50Hz, 3Phase, weight: 5T, forming
motor power: 7.5KW, control system: PLC, forming width: 100mm,
200mm.
Support and Services:
Rack Roll Forming Machine technical support and services include:
- 24/7 telephone support
- Remote diagnostics and troubleshooting
- On-site maintenance and repairs
- Spare parts and accessories supply
- Software and hardware upgrades
- Training and instruction
