10m/Min Long Grid Wall Hidden Joint Standing Seam Roll Former

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RP
Certification :	CE ISO SGS
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	75 days after deposit

Add to Cart

Product Details
Company Profile

10m/Min Long Grid Wall Hidden Joint Standing Seam Roll Former

0-10m/Min Long Grid Wall Decorative Hidden Joint Panel Machine

Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	0.3-1.0mm aluminium or galvanized coils
	Profile width	Customized
	Profile height	Customized
	Un Coiler	3 tons manual
Forming system	Rolling Speed	About 10m/min
	Roller Stations	About 16 stations
	Roller Material	Gcr15 coated with chrome
	Maim Motor Power	7.5 kw
	Motor cutting Power	4kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC (Panasonic) as list in the note
	Weight	About 3 tons
	Way Of Drive	1 inch chain

Machine List

3 ton passive de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
2 sets of embossing rolls	1 unit
Out table	2 units

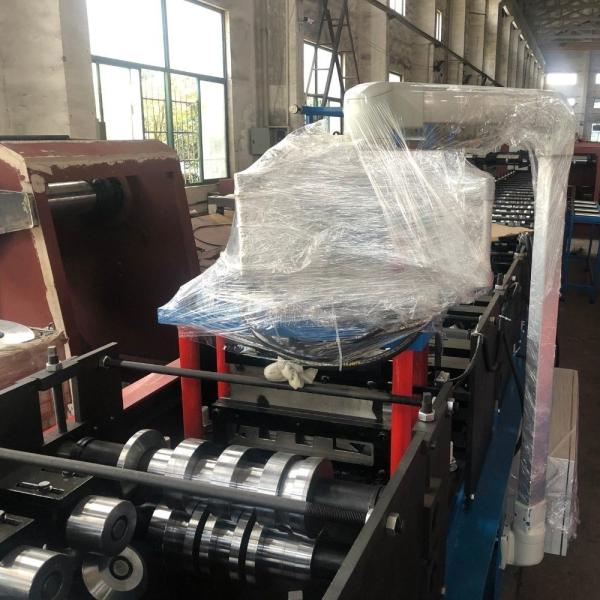

Machine Pictures

Glazed tile working flow

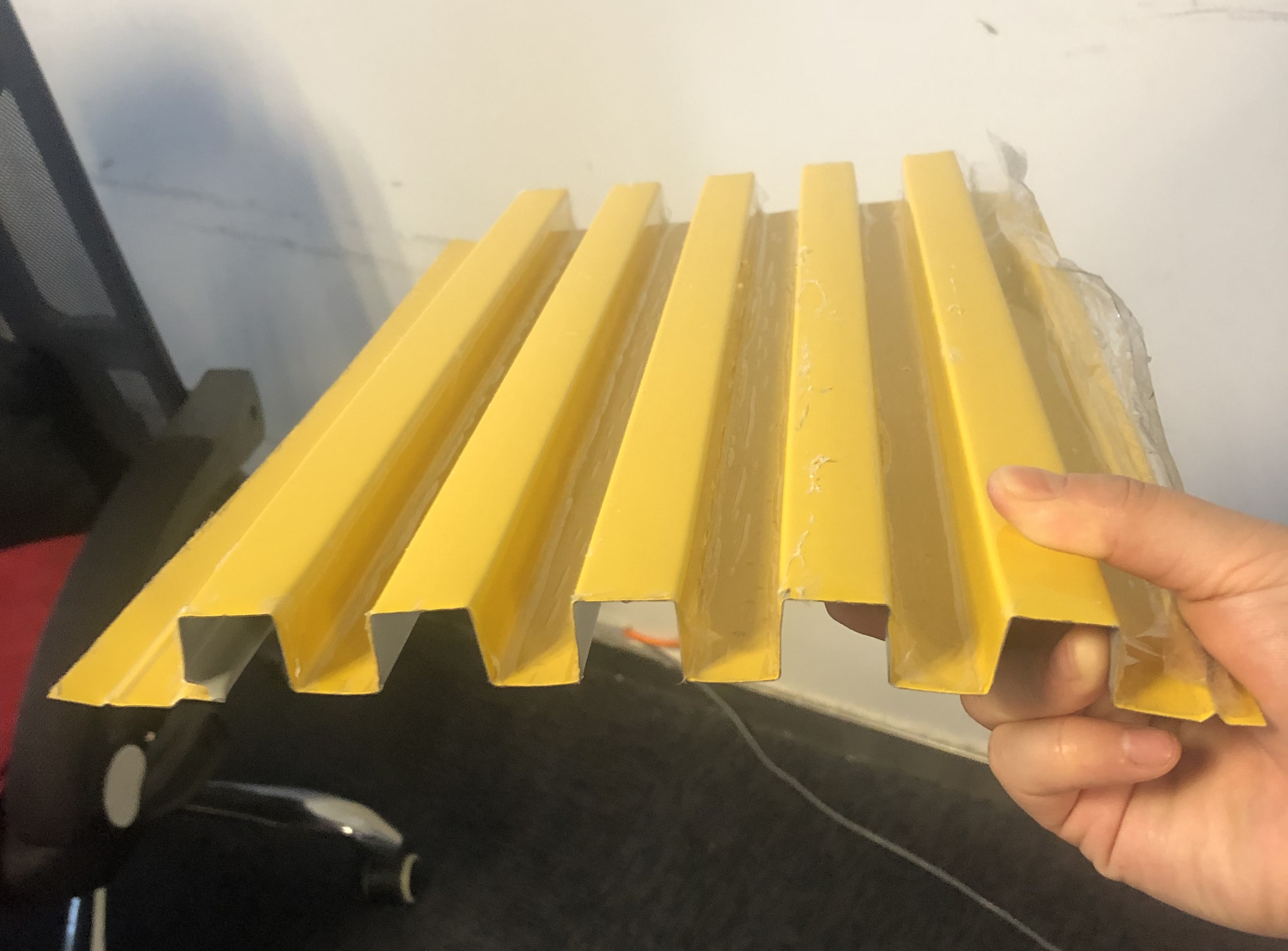

Profile Drawing

TANSPORTATION

All goods will be shipped to your country, containers number will be decided with how many machines you would choose.

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts.
