    13 Rollers 0.6mm Sliding Door C Channel Making Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-DR
    Certification : CE
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 60days after deposit
    • Product Details
    • Company Profile

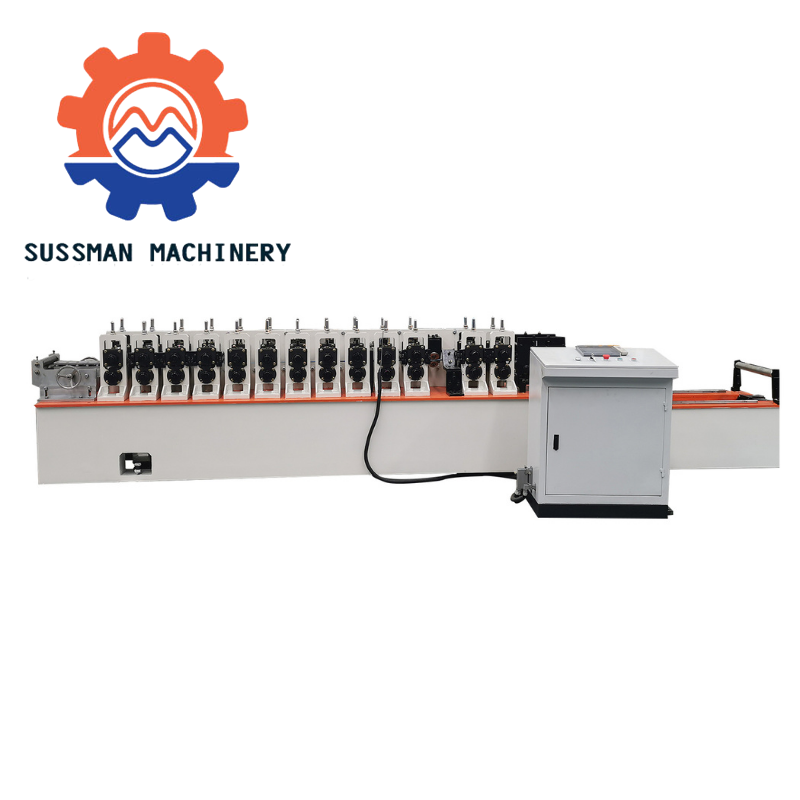

    13 Rollers 0.6mm Sliding Door C Channel Making Machine

    13 Rollers Stainless Steel 0.6mm Sliding Door Channel Roll Forming Machine With High Speed 30m/Min


    Door Rail Technical Parameter


    Suitable steel plate


    Type

    Stainless steel

    thickness

    0.6mm

    Feeding width

    As users needs

    Effective width

    As users needs

    Production speed
    0.-30m/min

    Roller stand

    13 rows

    Diameter
    60mm

    Main power

    5.5kw

    Pump power

    4kw

    Roller material

    Carbon Steel 45#

    Blade material

    Cr12, qunched, Cr-plating size 0.05mm

    Control system

    PLC Delta Inverter

    Main structure of the machine

    300mm H-Beam



    Door Rail Main Components


    S.N

    Equipment name

    Quantity
    1.

    3T passive un-coiler

    1 set
    2.

    Feeding and leveling device

    1 set
    5.

    Main roll forming machine


    1 set
    6.

    Hydraulic cutting

    1 set
    7.

    Control system (including control box)

    1 set
    8.

    Out tables

    2 sets
















    Working Flow of Door Rail

    Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables

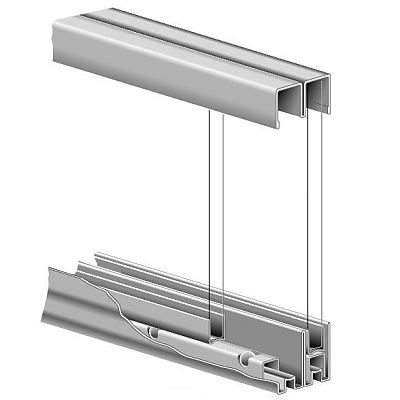

    Profiles of Door Rail
