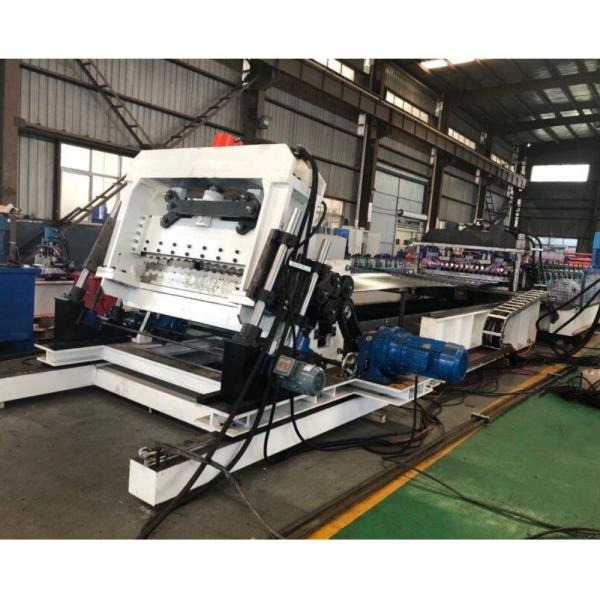

55KW Hydraulic Power 18 Stations Curving Steel Silo Panel Roll Forming Machine

Technique Data

1. Materials to form shutter door: 0.9-3.0mm galvanized coils, Feeding width: 1250mm
2. Forming steps: about 18 stations
3. Material of rollers: Gcr15 steel precision-machined, high frequency quenching HRC58-62,
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Cutting: hydraulic cutting; quenching HRC58-62
6. Electronic control: PLC control Siemens Brand
7. Dimension of machine: 13500mmX1650mmX800mm
8. Working speed:10m/min;
9. Drive system: gear box drive
10. main motor power: 45kw
11. Punching moulds: 3 sets of punching dies at one time
12. Curving machine: Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable.
13. Cutting: Hydraulic cutting
14. Hydraulic station power 37kw, the pressure 25-30Mpa.
15. Out table: lift auto stacker
16. Total Power 130kw

Machine Components

Advantage for roll forming machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Working Flow of produciton line

Decoiler--Feedingwithguide--Straighteningdevice--Mainrollformingmachine--Curving--Outputtable

Profile drawing of the product

Application

Loading Pics

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
