Servo Following Cutting 40mm 60mm 70mm Octagonal Tube Pipe Machine

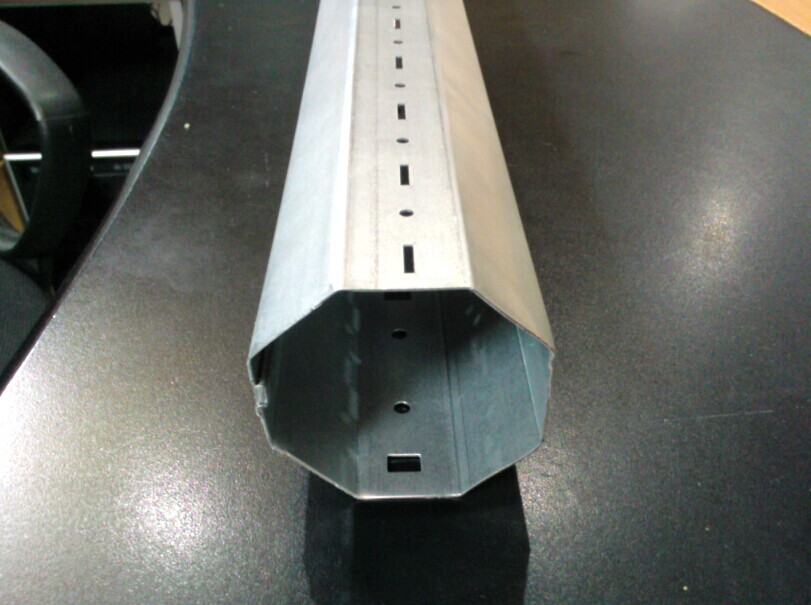

Octagonal tube is accesory of shutter slat door. Normally we can make size 40mm,60mm,70mm. Also we customized the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal tube. If you want to produce more size in one machine, we recommend cassettes to achieve profile change, they share one machine frame, save more space.

Sussman Machinery can provide 40mm, 60m, 70mm Roller Blind Octagon Shaft Forming Machine. The octagonal tube is a device for manufacturing the octagonal shaft of rolling shutter doors assembled from steel strips. Octagonal roller tubes are used to wind up curtains for horizontal roller blinds. It is one of the basic elements included in every shutter system.

Technical Parameter

Main Components

Working Flow

Decoiler—→feedingwithguide—→main roll forming machine—→fly saw cutting—→ run out table

Forming Machine Pictures

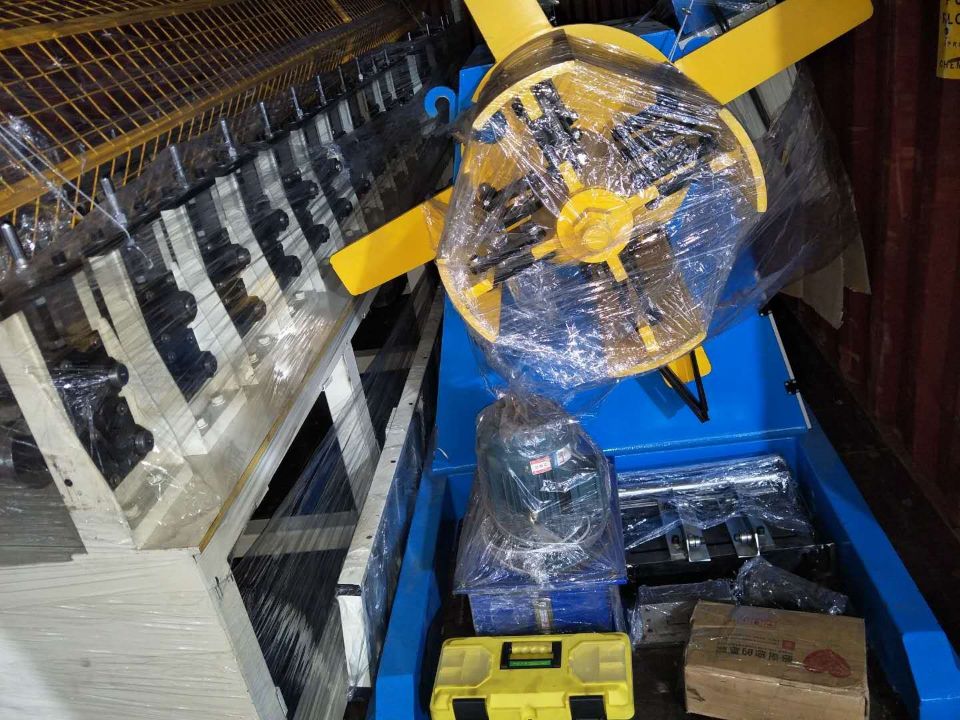

Packaging & Delivery

Packaging Details:

1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and uncoiler is naked (if you need we can also packed with water-proof plastic)
3.Roll forming machine PLC control system and moter pump are packed with water-proof plastic coverage.
Delivery Detail: 75 days after your pre-deposit

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
