    7.5KW 25 Stations PPGI Metal Facade Long Great Wall Decorative Hidden Joint Panel Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 65 days after deposit
    • Product Details
    • Company Profile

    7.5KW 25 Stations PPGI Metal Facade Long Great Wall Decorative Hidden Joint Panel Machine

    7.5KW 25 Stations PPGI Metal Facade Long Great Wall Decorative Hidden Joint Panel Machine


    Technical Parameter


    Item NO

    Description


    Offered specification

    1.0Roll forming machine
    1.1Rolling speed10-12m/min
    1.2Rolling thickness0.4-0.8mm
    1.3Raw materialGalvanized steel coils or PPGI
    1.4Main motor7.5kw
    1.5Hydraulic motor5.5kw
    1.6dimension7500×700×1000(mm)
    1.7Roller stationsAbout 25 stations
    1.8Roller material45#forge steel, coated with chrome
    1.9Shaft diameterΦ70mm,material is 45# forge steel
    1.10TransmissionBy chain 1 inch
    1.11Material of chain45# forged steel with frequency quenching, 12A
    1.12Material of cuttingCr12Mov with quench HRC58-62°
    1.13Tolerance6m+-0.5mm
    1.14FrameH type steel
    1.15Voltage380v, 50hz, 3phases



    Main Components


    NoNameTypeQuantity
    15 ton hydraulic de-coilerRF-GT15-3601 set
    2Main roll forming machineRF-GT15-3601 set
    3Control boxRF-GT15-3601 unit
    4Hydraulic stationRF-GT15-3601 unit
    5Out tablesRF-GT15-3602 units
    6Safety coverRF-GT15-3601 unit



    Glazed tile working flow

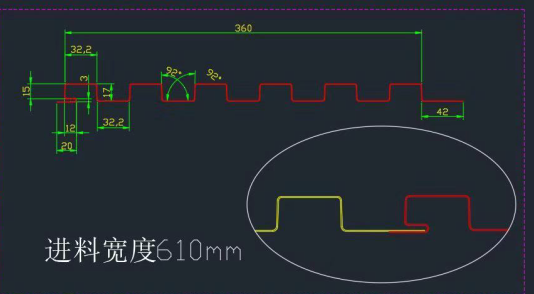

    Profile Drawing




    Application
