7.5kw Perforated Holes Shutter Slat Door Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-SD
Certification :	CE,SGS,ISO
Price :	negotiable
Payment Terms :	T/T L/C, Western Union, MoneyGram, D/P
Supply Ability :	10 sets per months
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

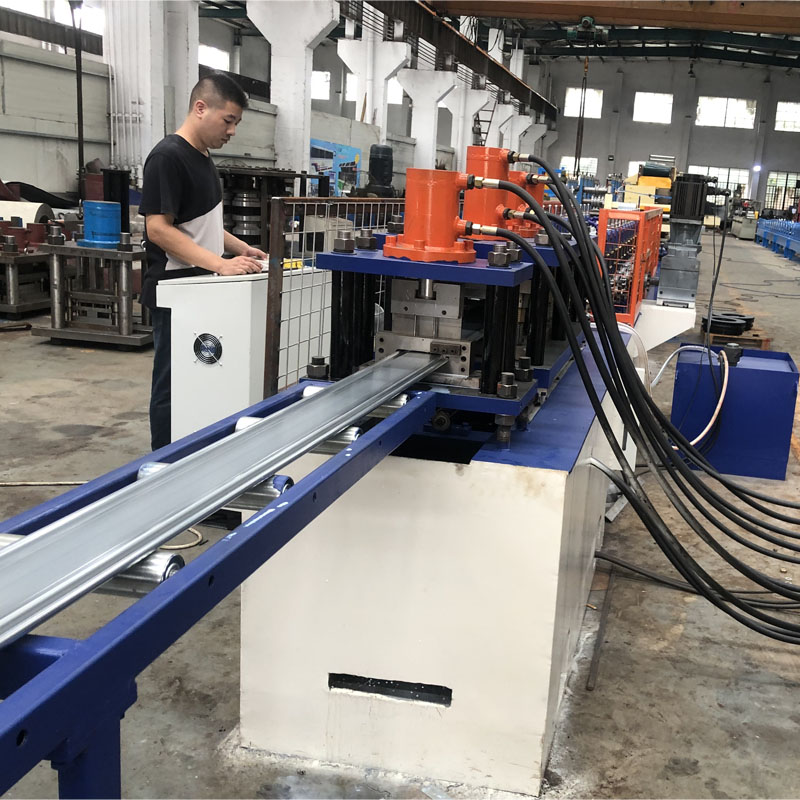

7.5kw Perforated Holes Shutter Slat Door Roll Forming Machine

7.5kw America Popular Type Perforated Holes Shutter Slat Door Roll Forming Machine

Shutter Door Technical Parameter

NO.	Item	Specification
Material	Raw material	Galvanized steel
Material	Thickness	0.7-1.2 mm
Puncher	Punching method	Hydraulic post punching
Machine	Roller station	12 rollers
	Shaft diameter	60 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material	Gcr15, hardness 55-58 HRC
	Machine size	About 5.80.81 m
	Machine weight	About 3.5 tons
	Machine color	As customer need
	Working speed	8-12 m/min
Cutter	Cutting tolerance	± 1mm
	Material	Cr12Mov
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	5.5 KW
	Pump motor for cutter	7.5 KW
	Voltage	380V/50HZ, 3 Phase or Customized as customer' request
Control system	PLC brand	Delta made in Taiwan
Control system	Language	Chinese and English or add customer need language
Decoiler	Operation	Manual
Decoiler	Weight capacity	3 Tons
Receive table	Operation	Manual
Receive table	Length	4 m

Shutter Door Main Components

S.N	Equipment name	Quantity
1	3 T passive un-coiler	1 set
2	Feeding and guide device	1 set
3	Main roll forming machine	1 set
4	Hydraulic station	1 set
5	Hydralic punching device	1 set
6	Control system (including control box)	1 set
7	Out tables	2 sets

Profiles of Shutter Door

Advantage for Shutter Door

1) We have about 12 years experience in steel machine line, experienced workers and engineers.
2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
3) On time delivery.Oversea engineers services available.
