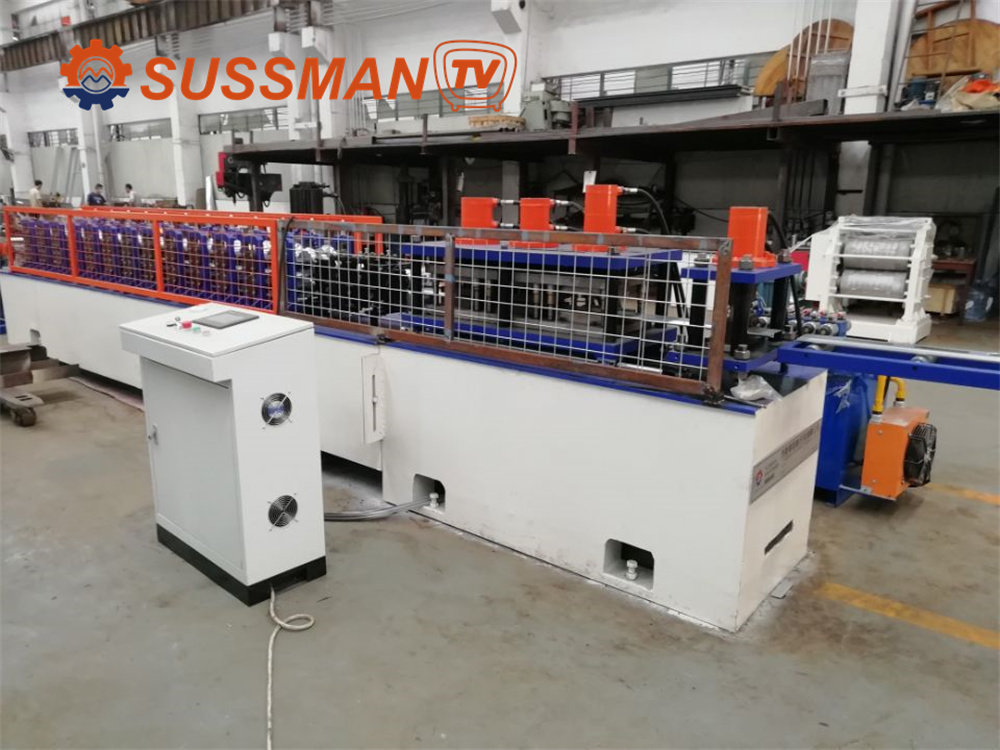

    1.2mm Galvanized Steel Metal Shutter Door Cold Roll Forming Machine With Water Cooling System

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-SD
    Certification : CE,SGS,ISO
    Price : negotiable
    Payment Terms : T/T L/C, Western Union, MoneyGram, D/P
    Supply Ability : 10 sets per months
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    1.2mm Galvanized Steel Metal Shutter Door Cold Roll Forming Machine With Water Cooling System

    0.7-1.2mm 115mm Galvanized Steel Metal Shutter Door Cold Roll Forming Machine With Water Cooling System


    Shutter Door Technical Parameter


    Part detailsItem NameSpecification
    MaterialRaw materialGalvanized steel
    Thickness0.8-1.2 mm
    MachineRoller station12
    Shaft diameter60 mm
    Shaft material45# steel with 0.05mm chrome
    Roller materialGcr15
    Machine sizeAbout 5.0×0.8×1.0 m
    Machine weightAbout 3 tons
    Machine colorAs customer' request
    Working speed8-12m/min
    CutterHardness50-55 HRC
    Cutting tolerance± 1 mm
    Material

    Cr 12Mov

    OperateHydraulic cutting
    PowerDriving wayChain 1 inch
    Main power7.5 kw servo motor
    Pump power5.5 kw
    Voltage

    380v/50HZ,3P or customize

    as customer' request

    Control systemPLC brandDelta
    ScreenTouch screen
    LanguageChinese and English or add language as customer need
    DecoilerOperationManual
    Weight capicatity3 tons
    Receiving tableOperationManual
    Length4 m
    Shutter Door Main Components

    S.N

    Equipment name

    Quantity
    1

    3T passive un-coiler

    1 set
    2

    Feeding device

    1 set
    3

    Main roll forming machine

    1 set
    4

    Hydraulic station

    1 set

    5

    Hydralic punching device1 set

    6

    Punching moulds4 sets
    7

    Control system (including control box)

    1 set
    8

    Out tables

    2 sets
    9

    Spare Parts

    1 packages


















    Profiles of Shutter Door




    Advantage for Shutter Door


    1) We have about 12 years experience in steel machine line, experienced workers and engineers.
    2) We have CNC process to produce the rollers,grinder machine to smooth the frame.make it's more precise.and less tollerance.and after assebling,inspect the whole machine by trail production before delivery.
    3) On time delivery.Oversea engineers services available.
    4) Adopt newest tech across the world to ensure our quality, provide customers good quality machines with best price.
    5) Favourtie price for machine parts all the life.
