    40-200mm Automatically Width Adjustable C U Profile Drywall Roll Forming Machine With Univeral Cutting

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : USD25000-USD35000 Per set
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    40-200mm Automatically Width Adjustable C U Profile Drywall Roll Forming Machine With Univeral Cutting

    40-200mm Metalcon Automatically Width Adjustable Univeral Cutting Stud Track Drywall Roll Forming Machine

    Technical Parameter


    Width adjustable by PLC automatically, height is adjustable by spacers


    ItemsSpecifications
    Material of coilMaterial Thickness0.85-1.6mm G550 Galvanized coils
    Punching deviceHydraulic punching device1 set
    Forming systemRolling Speed10 m/min with driven chain
    Roller StationsAbout 15 stations forming
    Roller MaterialGcr15 Steel with quenching
    Shaft Material

    45# Steel Diameter 75mm shaft


    Main Motor Power7.5 kw

    Cutting
    system

    Material Of CuttingCR12 with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blade2 sets of cutting blade
    Electrical control systemElectric Source380V, 50HZ,3 phase, according to buyer’s request
    Control SystemPLC with touch screen
    WeightAbout 5 tons
    Way Of Drive1 inch single chain
    Size of machineLength 7500mm* Width 800mm* Height 1000m


    Machine List

    3 tons hydraulic de-coiler1 set
    Main roll forming machine with logo1 set
    PLC Control box1 unit
    Hydraulic cutting device1 unit
    Hydraulic punching device1 unit
    6 meters Simple auto stacker1 unit

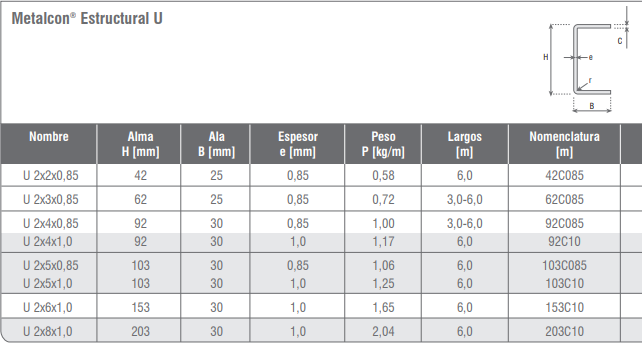

    Profile Drawing



    Technological process:


    Decoiler—feeding with guide—Hydraulic punching—Roll forming—Cutting—Products collecting

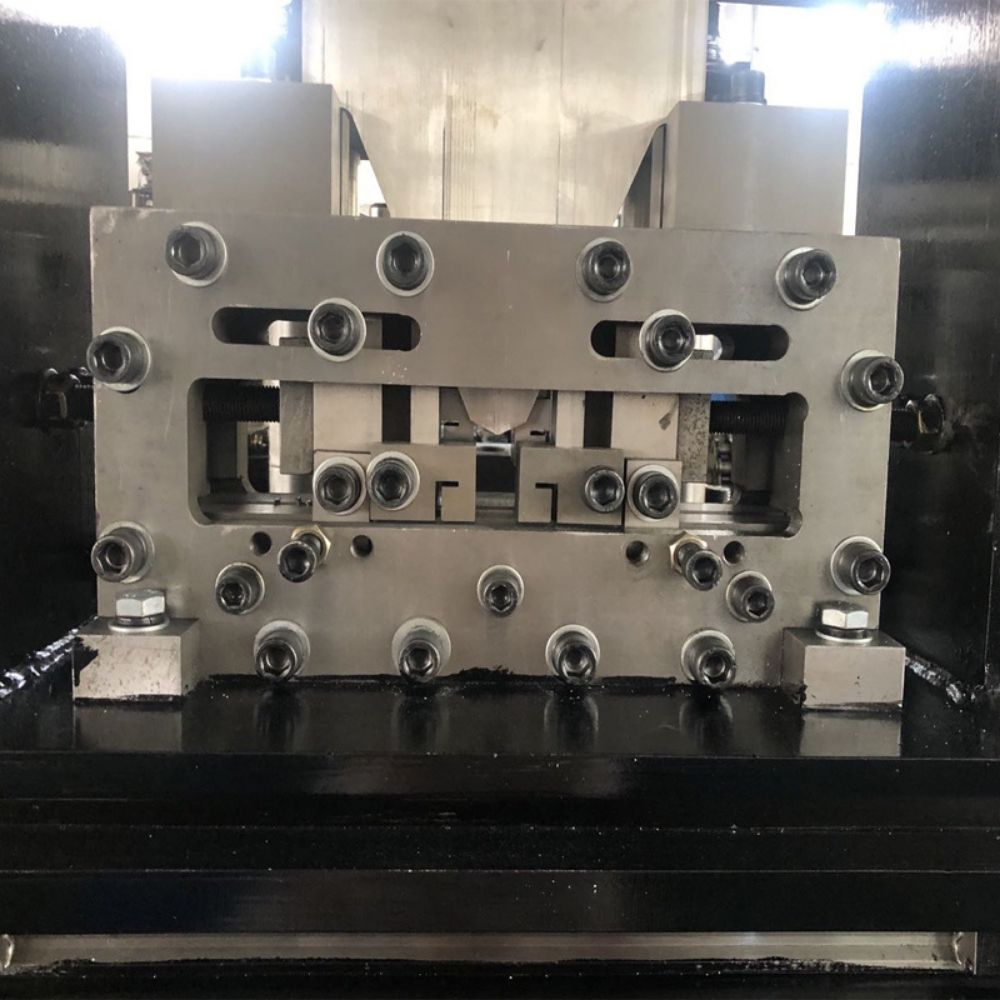

    Machine Pictures




    Quality 40-200mm Automatically Width Adjustable C U Profile Drywall Roll Forming Machine With Univeral Cutting for sale
