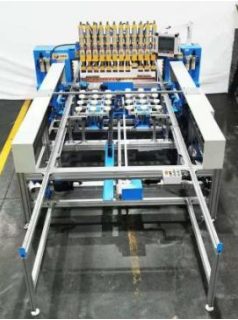

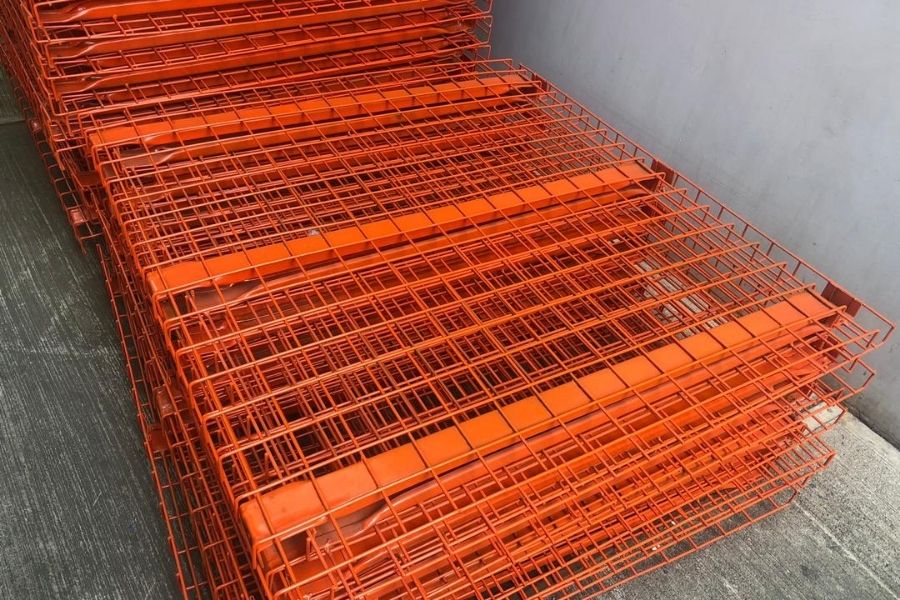

Automatic Servo Feeding Upright Mesh Welding Device

Model: ALZ350-14-1600 l

Welding power source: IF DC 350KVA*2 l

Maximum welding current: 43000A l

Maximum welding capacity: iron wire 7mm*7mm*10 points l

Pressurized cylinder: 80 times with 12 sets of power cylinder

Effective welding platform width: 1600mm 1520*1520mm max

Welding speed: 2 times/second

Main accessories

1. Intermediate frequency transformer: 350KVA*2,

2. Maximum welding current: 43000A/piece

3. The maximum short-circuit current is 53000A, the input power is 500V/1000HZ

4 the cooling water flow and temperature are 60L/min, and the temperature is 10-35℃. Intermediate frequency controller: model HBII-900A, maximum output current 500V/1000HZ/1600A.

Into the power supply three 220V/60Hz. Cooling water flow and temperature, 30L/min 10－35℃.

Servo Feeding device

Model: ATQ1600－1600

Feeding speed: 1 m/s, strive for 1.5 m/s.

Mold changing method: fully automatic with and demolding system

PLC: Mitsubishi of Japan

Servo motor: Taiwan TECO 1KW*2

Man-machine interface: Taiwan Weilun

Working mode: one-key automatic

The main frame of the workbench is made of 80*80 aluminum profile

Wire straightening device

Model: ABT5-9/3 meter gun l

Wire diameter range: 5.0mm-9.0mm l

Length range: 50mm-3000mm l

Length tolerance: ≤0.5mm l

Feeding speed: ≤25 m/min l

Automatic controller: Yes

1, Set the number and count, and the production is complete and stop and alarm.

2. It will automatically stop and alarm when there is no material, broken wire or running wire.
