1064mm Width Aluminum Zinc Roof Panel Roll Forming Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-DF
Certification :	CE, SGS, ISO
Price :	negotiable
Supply Ability :	10 sets per month
Delivery Time :	75 days after deposit

Add to Cart

Product Details
Company Profile

1064mm Width Aluminum Zinc Roof Panel Roll Forming Machine

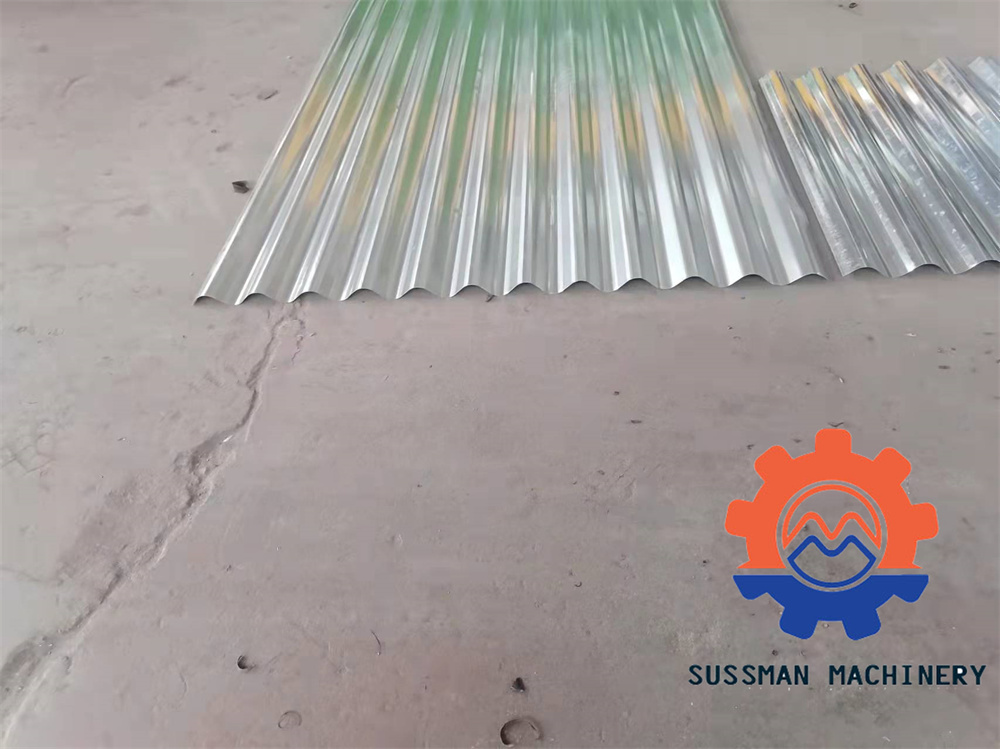

762mm 836mm 988mm 1064mm Width 0.11-0.4Mm Aluminum Zinc Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine

Product description

1	Suitable for	Galvanized Sheet
2	Forming rows	23 Rollers
3	Feeding width	1250mm
4	Sheet Thickness	0.11-0.4mm
5	Equipment shaft diameter	Φ70mm
6	Motor	7.5KW
7	Rolling speed	0-12m/min
8	Machine weight	Around 8 tons
9	Pumping station motor	4KW
10	Equipment rack	300H steel
11	Equipment transmission	Chain drive
12	Cut-off system	Automatic computer fixed length
13	Roll material	45 # steel forged parts
14	Shear blade heat treatment	HRC58 ° -62 °
15	Cut off method	Hydraulic shear
16	Shear blade material	Cr12Mov
17	Control System	Delta Brand PLC, Touch Screen
18	Tolerance	±1mm

Main Features

This corrugated machine can do thin material thickness from 0.13-0.4mm, from decoiler, roll forming, hydraulic cutting and receiving tables, we also can do mateiral thickness 0.25-0.8mm. The speed is up to 12m/min, we also can do high speed up to 30m/min.

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.

Machine Component

5T decoiler	1 set
Feeding with guide	1 set
Roll forming machine	1 set
PLC Control box system	1 set
Hydraulic cutting with station	1 set
4 meters passive table	1 set
Spare parts	1 package

Application

Tiles Making Machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on

Profile Drawing
