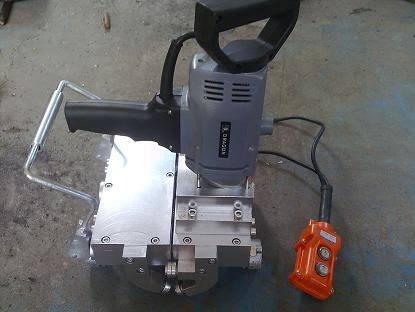

Bemo Standing Roll Forming Machine Seamer Self Lock Boltless Roof Machine

KR18 KR24 are the popular profile drawing in Mexico. The KR-24 jointed sheet is rolled with portable equipment, which facilitates its transfer and installation. Its fixing is hidden by means of clips and its longitudinal overlap can be clipped, this guarantees a low maintenance cost and great impermeability.The KR-24 sheet is of SSR type (Standing Seam Roof) ribbed and jointed on site.
The KR-24 Steel Sheet (SSR-24) has a hidden fixing system based on clips, it reduces the risk of possible leaks since it is not required to drill the sheet for its installation. The KR-24 has no limitations in its length since it is manufactured in a single piece from gutter to ridge. It also allows the installation of insulating materials. Hooked Roofs can be installed on roofs with low slopes up to 2%.

Technical Parameter


1.Passive uncoiler 5 ton
2.Main motor power:7.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 20 stands
5.Main machine size:8.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:355.6 mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.3-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Delta
14. Computer (PLC)
15.computer operation board: OP320A
Standing Beam Main Components

Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables




Profiles of Standing Beam




Customes Visiting




Loading Pic.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
