Galvanized Steel 0.3-0.9mm Thickness Wall Angle Roll Forming Machine With PLC Control

1. Technical Parameter

2. Working Flow

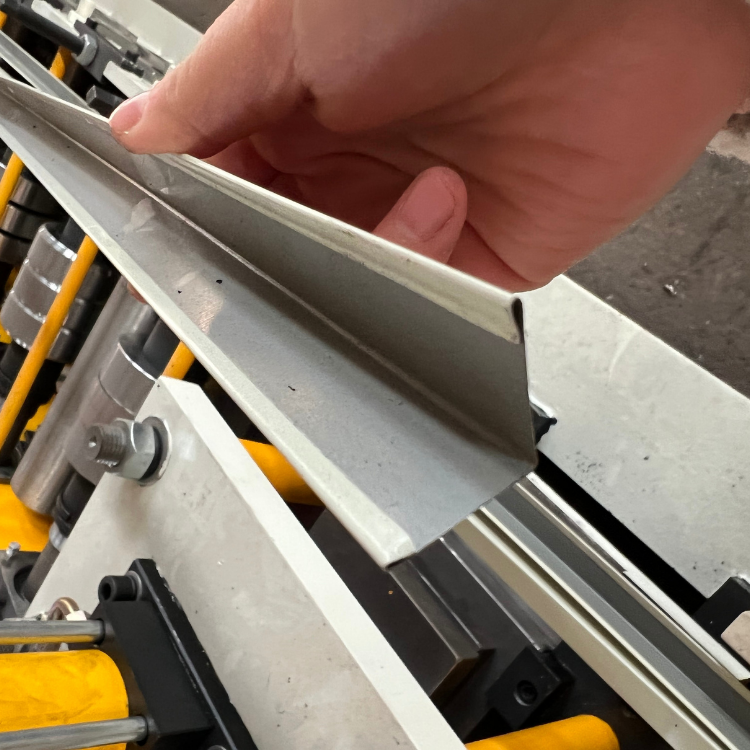

The wall angle machine can produc common size include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm, up to 100-100mm. Product thickness common between 0.3-1.0mm, also we can do thick material 4mm.

This line includes decoiler, hydraulic punching systems to make different holes, also we can design the machine size according to your profile drawing and requirements.

Feeding with guide——Pre-punching——Roll forming——Cutting—Products collecting

3. Machine Components

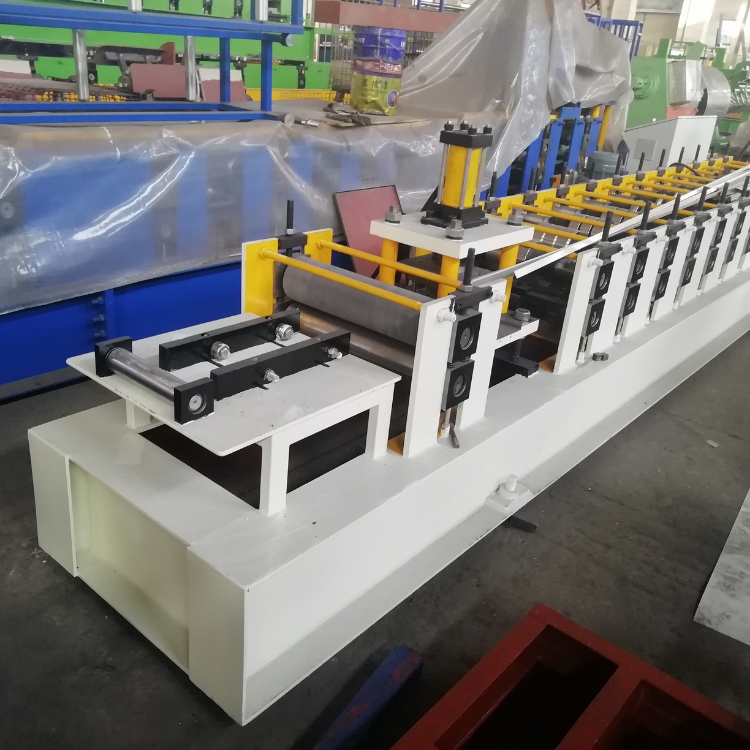

4. Machine Photo

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
