    40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : DL-RP-T
    Certification : ISO 9001 SGS
    Price : USD 30000 per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 sets per month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness


    40 Meters/Min Corrugated Roof Roll Forming Machine With 0.12mm-0.3mm Thickness


    Why the thin roof roll forming machine is hot sale?


    Because it can produce more roof panels under the same weight of steel coil.


    The speed of the machine is 10-12m/min, but it can also reach to 40m/min with servo following cutting.

    Rolling Speed: 0-40m/min,10-12m/min
    Feeding width: 1000mm
    Steel sheet Thickness: 0.12-0.3mm galvanized sheet
    Control System: PLC Siemens
    Roller Stations: about 20-22 stations
    Roller Material : 45# forge steel, coated with chrome
    Shaft Material and DIA: ¢75mm,material is 45# forge steel, Chrome with quenching
    Motor Power: 7.5kw main motor
    Hydraulic power: 3kw
    Hydraulic Pressure: 12Mpa
    Tolerance: +1.5mm
    Power supplier: According to Customer’s Requirements
    Way Of Drive:Gear Box Driven


    Machine List

    5 tons hydraulic de-coiler
    1 set
    Main roll forming machine
    1 set
    PLC Control box
    1 unit
    Hydraulic station
    1 unit
    Safety cover
    1 set
    Spare parts
    1 set

    Profile Drawings



    Technological Process

    Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

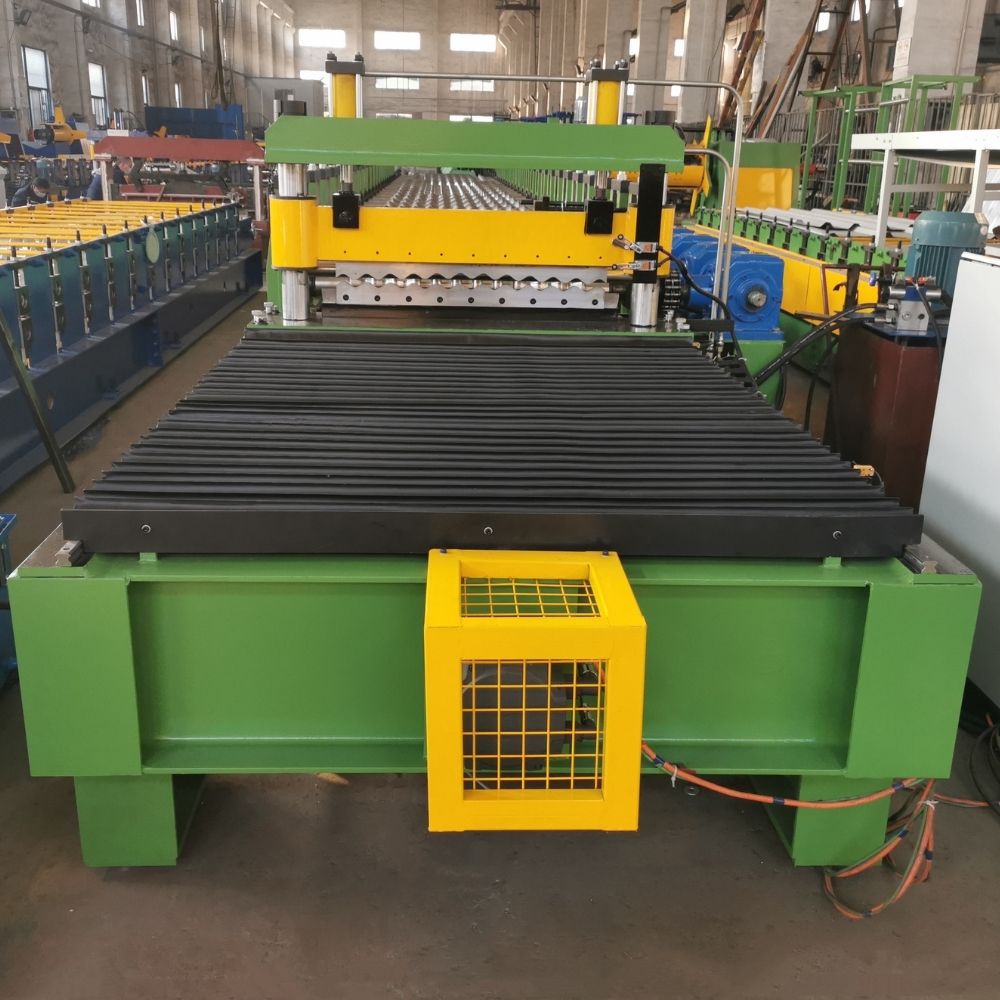

    Machine Pictures



    Loading Pictures:
