90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

Ask Lasest Price
Brand Name :	SUSSMAN
Model Number :	SS-RS
Certification :	CE.SGS.ISO
Price :	USD65000-85000 Per Set
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	Shipped in 90 days after payment

Add to Cart

Product Details
Company Profile

90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

90*70mm Storage System Shelf Upright Racking Metal Silo Roll Forming Machine

Technical Data:
Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or
blank steel
Working Speed: 12-15 meters / min
Forming Steps: 18 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal
refining
Driven system: Chain Driven 1.5 inches 20A double chain with longer
shafts
Main Power with reducer: 11KW WH Chinese Famous
Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider
Cutting holder: straight cutting by 3 pieces of blades
Machine List:

S.N	Equipment name	Quantity
1	3T hydraulic un-coiler	1 set
2	Leveling device 400mm	1 set
3	Servo feeding device 400mm	1 unit
4	Press machineJH21-80	1 unit
5	Main roll forming machine	1 set
6	Cutting holder	1 set
7	Hydraulic station	1 set
8	Control system ( including control box)	1 set
9	Out tables	2 units
10	Spare parts	1 package
11	Cutting dies	1 set
12	Punching die set	1 set

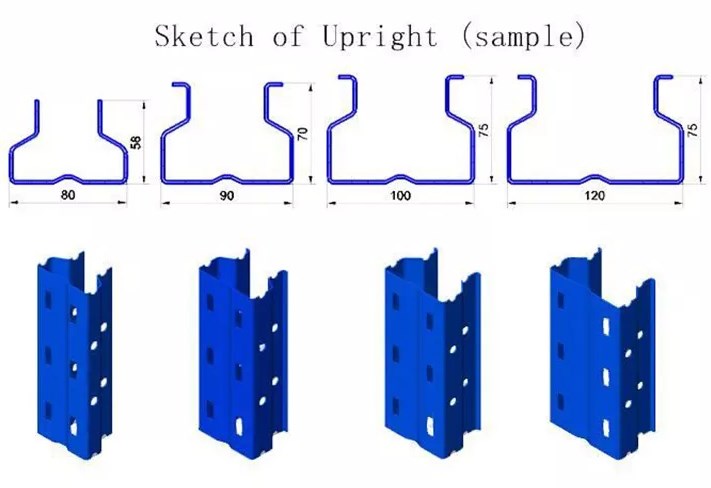

Profile Drawing

Machine Shows

Application

Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.
