    78mm Diameter Awning Pipe Tube Roll Forming Machine, Roller Blind Roll Forming Machine

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-OP
    Certification : CCC, SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 10 sets per month
    Delivery Time : 75days
    • Product Details
    • Company Profile

    78mm Diameter Awning Pipe Tube Roll Forming Machine, Roller Blind Roll Forming Machine

    65mm 70mm 78mm 80mm Awning Tube Roll Forming Machine


    Awning Tube Roll Forming Machine comprised of 3T manual uncoiler, feeding guiding, roll forming machine, straighten device, cutting equipment, electrical controlling system, output table.

    Technical Parameter:
    1. Machine specification: forming thickness9mm-1.2mm galvanized coils
    2. Forming speed: 0-10M/min (EXCLUDING CUTTING STOP TIME)
    3. Forming roller: about20 stations
    4. Main motor power: 7.5 KW
    5. Roller material: 45# forged steel, surface coated with chrome
    6. Main shaft material: 45# steel
    7. Main axis dia.: ¢60mm
    8. Hydraulic cutting pressure: 10-12Mpa
    9. Cutting method: hydraulic powered, cutting after roll forming.
    10. Cutting blade material: Cr12 quenching treatment
    11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
    12. Water cooling system
    13. Way of Drive: Gearbox
    14. welding
    Machine List:
    Serial No.Commodity & DescriptionQuantity
    13T manual un-coiler1 set
    2feeding guiding1 set
    3Main roll forming machine1 set
    4Output table1 set
    5Main drive1 set
    6Fly saw cutting1 set
    7Controlling system (including cabinet)1 set
    8Water cooling system1 set

    Working Flow:

    Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table

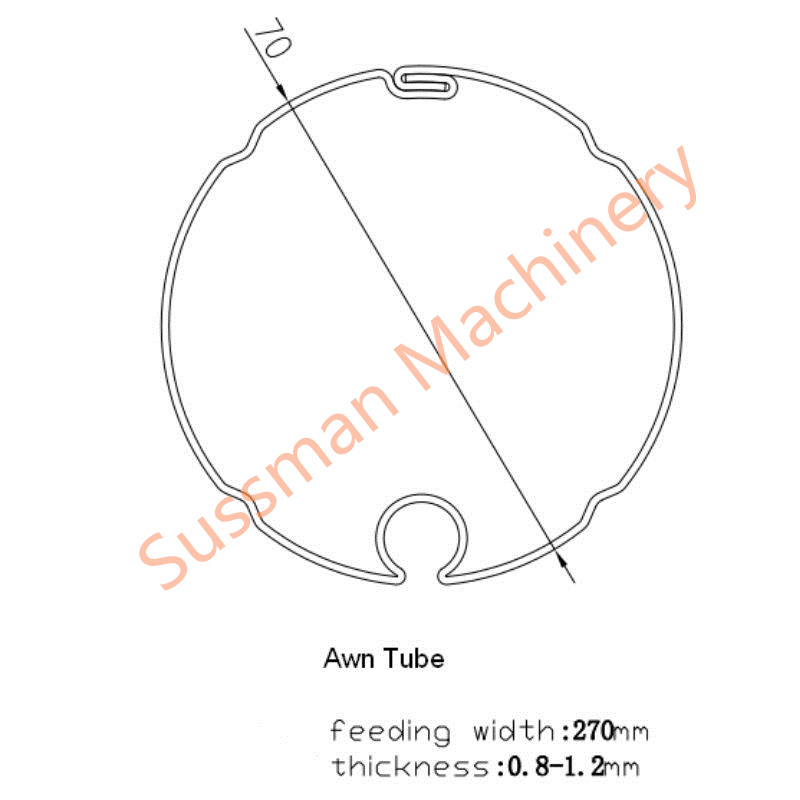

    Profile Drawings:
    Application:
