50*25mm Size 2.0mm Galvanized Steel C Post Profile Roll Forming Equipment for Electrical Cabinet

1. C Post Machine Technical Data

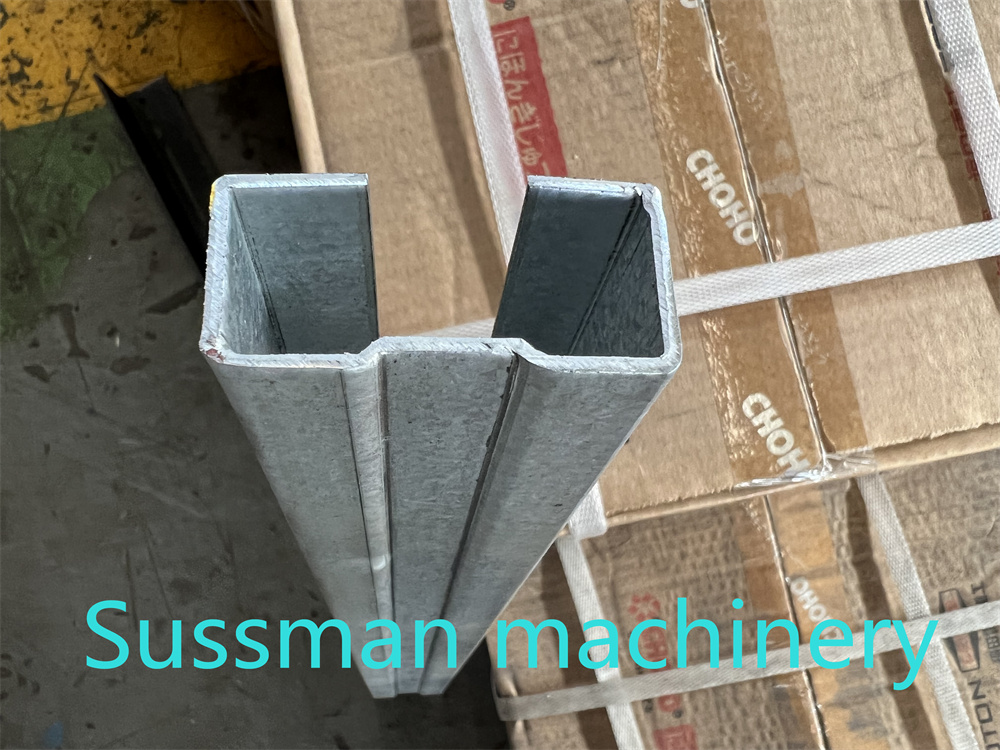

3. C Post Profile Drawing

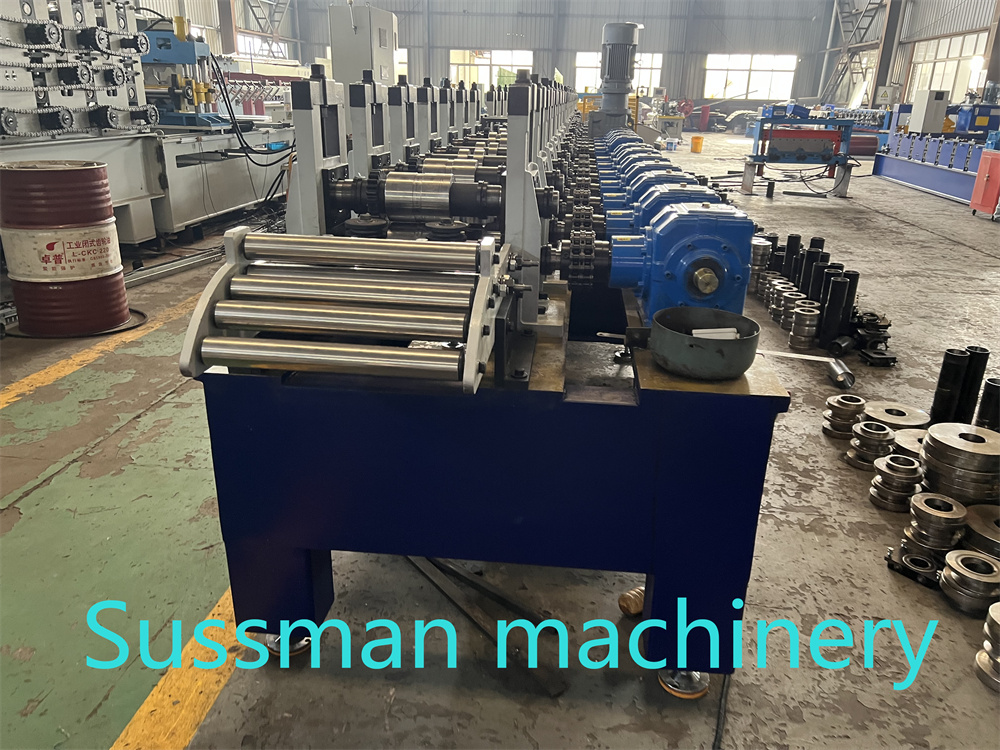

4. C Post Machine More details

(1) Automatic Ue-coiler

Max. Capacity: 2T

Suit for coil inner diameter: 460-520mm, suitable coil Max. out diameter: 800mm

Manual power expands the coil inner surface.

(2) Hydraulic Cutting

1) stop cutting;

2) Adopts welded frame for good rigidity.

3) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

4) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.

When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.

(3) PLC Control System

1) This system uses Delta PLC to control the all working actions.

Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

4) Encoder count, having function of count and measuring length.

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
