Automatically Racking Box Beam Roll Forming Machine Locking Box
Beam Machine
Box beam are made from two identical channel sections nested
together to form a box. Box beam is the most widely used beam, as
the structure is the most strong compare with other type of beam.
Box beam Roll Forming Machine is the essential for its production.
This is the box beam roll forming machine, the sizes are
adjustable, C shape from 80mm-160 mm, manual lock joint.
Roller Former Machine Specification:
Product speed: 8~10M/min
Roller material: GCR15 bearing steel, quench treatment
Forming stations: 15 stations + 4 folded machine
Shaft diameter: 75mm
Forming structure: Guiding column,chrome-plated
Machine base frame: tube welding structure
Transmission type: Chain
Motor power of main machine: 7.5KW*2sets
Bearing: HRB brand ,needle roll bearing, taper bearing
Voltage: 380V, 50 Hz, 3phase.
Bolt: 8.8 grades
Weight: about 8 tons
Machine List
| Name | Quantity (set) |
| 3 ton passive De-coiler | 1set |
| Level device | 1set |
| Hydraulic cutting machine | 1set |
| Main roll forming machine | 1set |
| Run out table | 2 sets |
| Control panel | 1set |
| Safety cover | 1 set |
| Spare parts | 1 package |
| Joint machine | 1set |
Machine working flow:
Manual decoiler---->leveling machine ----> roll forming
machine ---->cutting device ---->Product Stand Tables---->
folded machine

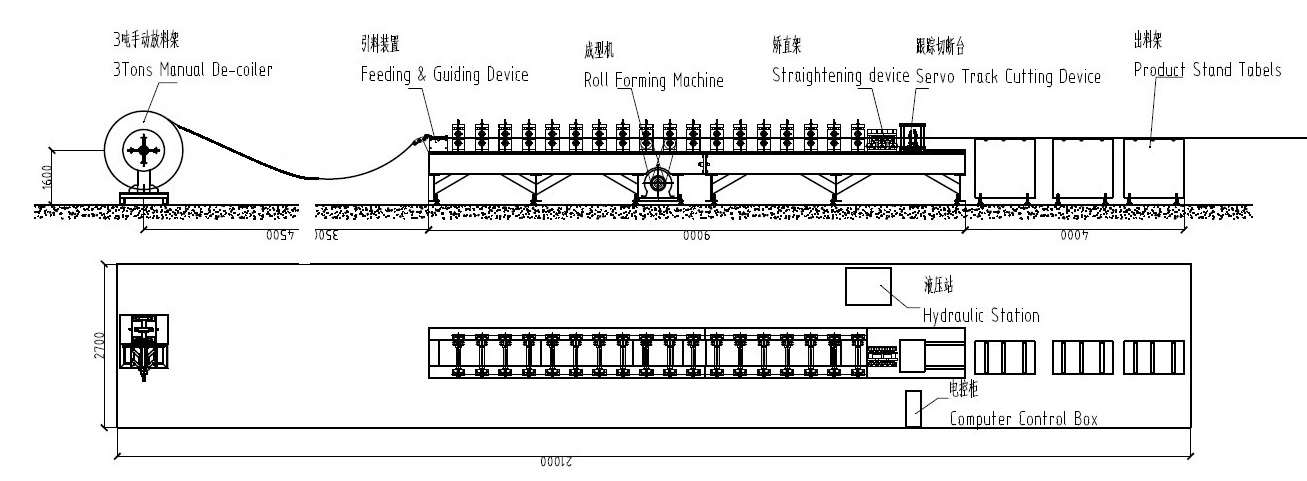

Profile Drawings:

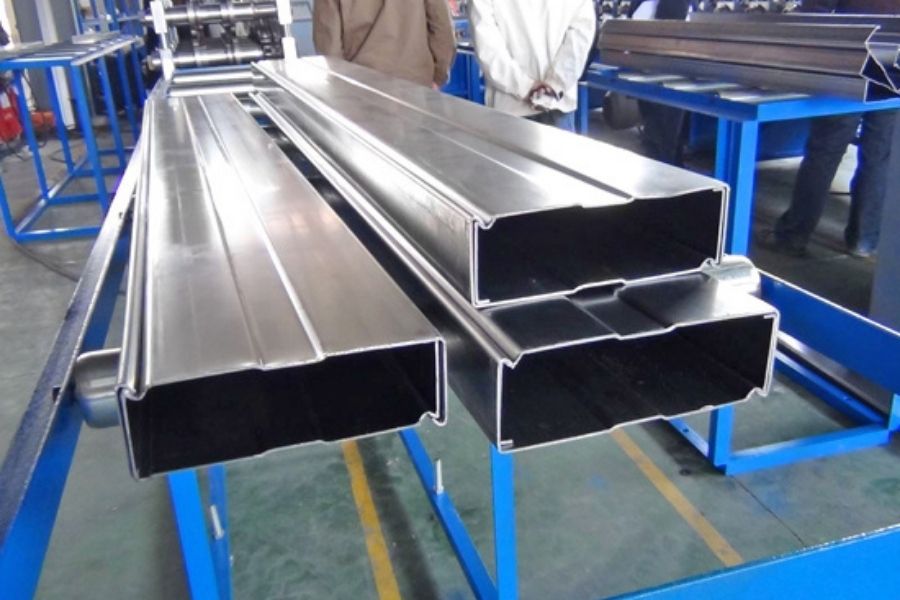

Finished Samples:
Application:
Advantage:
1.Produce different box beam size by changing spacers.
2.Easy operation, low maintenance cost
3.Infinite sizing(any size within machine range),help to save
material
After-sale Serive
- The seller take responsibility to installation and commissioning
of the equipment and free training. After machine arrive the
destination, by the request of the buyer , the seller will provide
1 technical engineer to guide installation and training , and the
buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation
by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should
pay for installation and commissioning fee 100$/day to the point
account of the seller. The two-way ticket,visa, food, hotel , the
translator and insurance are all should provide by buyer with full
responsibility.
-The seller supply technical data (including forming mould drawing,
electrical elements drawing and equipment drawing etc.)
