Thickness 1.2mm-2mm Galvanized Steel 76/102/127x70 Racking Upright
Roll Forming Machine With Press Punching
1. Upright Rack Roll Forming Machine Technical Parameter
No. | Item | Specification |
1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
| Thickness(mm):1.5-2.0,1.5-3.0 |
|
| Yield strength: 250 - 550MPa |
|
| Tensil stress( Mpa):G350Mpa-G550Mpa |
2 | Nominal forming speed(m/min) | 10-20 |
3 | Forming station | 18 |
4 | Decoiler | Hydraulic Decoiler 3 Ton de-coiler with brake device Outside diameter of coil: 550mm Inside diameter of the coil: 450mm |
5 | Main machine motor | Wuxi Brand |
6 | PLC brand | Panasonic |
7 | Inverter brand | Yaskawa |
8 | Driving system | Gearbox drive |
9 | Rollers’ materail | GCr15 |
10 | Station structure | Casting iron structure |
11 | Punching system | Punching press |
12 | Cutting system | Post-cutting |
13 | Power supply requirement | 380V 50Hz |
14 | Machine color | Blue |
2. Upright Rack Machine’s Components
Item | Components Name | Quantity |
1 | 3T hydraulic Decoiler | 1 set |
2 | Leveling machine | 1 set |
3 | 80T punching press | 1 set |
4 | Punching mould | 3 sets |
5 | Roll Forming Machine | 1set |
6 | Flying shear | 1 set |
7 | Hydraulic Station | 1set |
8 | PLC control cabinet | 1set |
9 | Safety cover | 1 set |
10 | Outables | 2 pcs |
11 | Cutting blade | 3 sets |

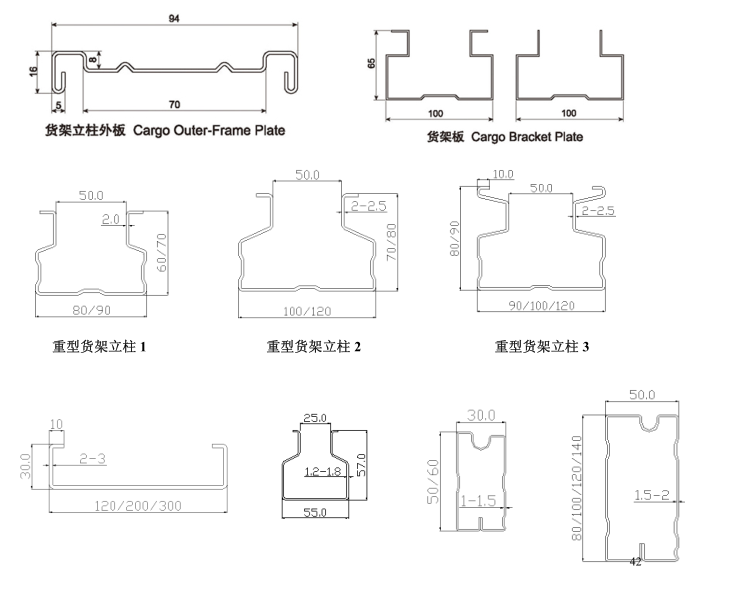

3. Upright Rack Profile drawing
1.Finished products:76/100/120x70 racks with holes punching
2.Raw material request: galvanized steel
3.Material thickness:1.2mm-2mm
4. We have experience of exporting our pallet racking roll formers
to Mexico, Peru, Costa Rica, India, etc.
5. We make different solutions according to customers’ drawing,
tolerance and budget, offering professional one-to-one service,
adaptable for your every need.
6. In warehouse pallet racking system, we are able to manufacture
more machines like upright section roll forming machine and shelf
panel roll forming machine etc.
4.Application
Pallet racking roll forming machine is widely used in producing
upright frame, box beam and step beam. Our intelligent roll forming
machine could make wide range of sizes using cantilever type
structure, and automatically change by motors from one size to the
other not only at width but also at height. The one and only step
is to put your required data into our touch screen and wait for few
seconds. Machineable thickness is from 1.5-3.0mm with raw material
Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless
Steel and Aluminum. Our produced profile meet ISO, CE , FEM
standards, and our machine is applied to Warehouse ,supermarket
,industry or home.
