Full-Automation High Speed 30m/Min Steel Rolling Shutter Door
Octagonal Tube Pipe Roll Forming Machine
Machine Technical Data
1)Suitable raw material: | 0.5---1.2mm colored steel sheet or galvanized steel |
2)Main motor power: | 15Kw |
3)Forming speed: | 20-30m/min |
4)Number of forming stations: | 24 |
5)Shafts diameter: | Ф75mm |
6)Rollers manufacture: | 45#steel, machine tooling on the surface and polished
HRC48-52,chromed on the surface |
7) Holes punching: | As profile |
8) Punching mould material: | Cr12 Mov,HRC58-62 |
9) We adopt | press punching |
7)way of cutting: | saw cutting |
8)Cutting length tolerance: | ≤±1.5mm |
Production Line Machine List
Serial No. | Commodity & Description | Quantity |
1 | 3T automatic uncoiler | 1 set |
2 | feeding guiding | 1 set |
3 | Main roll forming machine | 1 set |
4 | Output table | 1 set |
5 | Main drive gear box | 1 set |
6 | Fly saw cutting | 1 set |
7 | Controlling system (including cabinet) | 1 set |
8 | Water cooling system | 1 set |
9 | Safety cover | 2 sets |
Standard Profile
The shutter door octagon pipe roll forming machine is used to
produce octagon pipe for PU shutter door
Normally we can make size 40mm,60mm,70mm shaft. Also we customized
the size as the client's requirement.
Normally one roll forming machine produce one size of octagonal
tube. If you want to produce more sizes in one machine, we
recommend cassettes to achieve profile change, they share one
machine frame, save more space.
Application
Octagon Pipe Shutter Door Roll forming Machine Applicable to
commercial facade, garage, shopping malls, hospitals, factories and
mines enterprises and so on public place or residence. Especially
it was large and inconvenient installation ground body place
convenient and quick open..

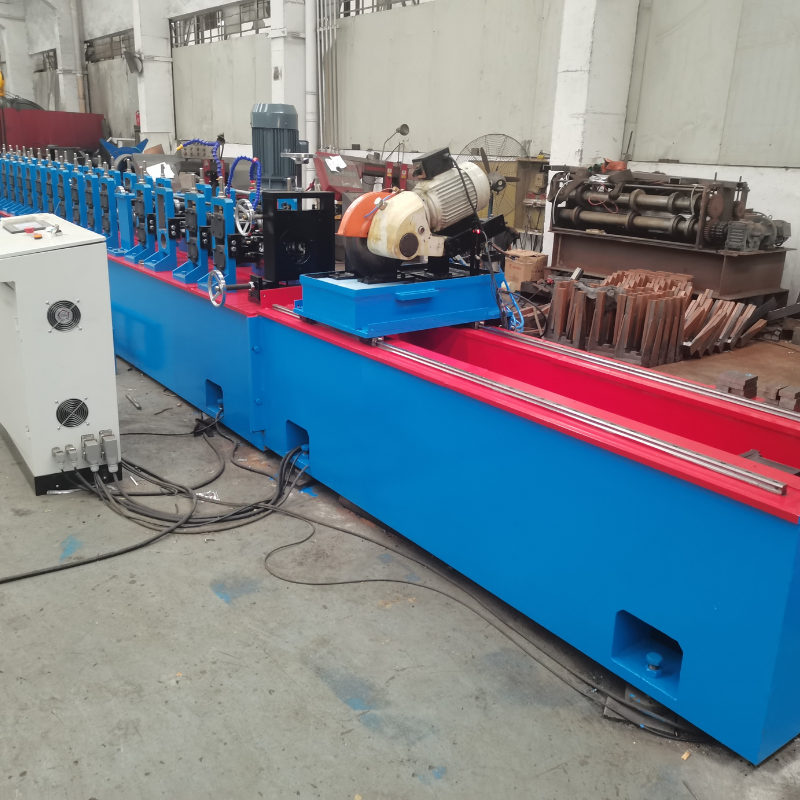

Octagonal pipe machine photo
Our Service
1. We can produce the special machine,send your drawing to us,we
can design for you.
2. We provide a one year warranty and lifelong technical support,
we can send our technicians to you to give you on-site training.
3.The training period would be for no more than one week with the
customer paying for the visa, return ticket, food, accommodations.
