Automatic Rain Spout Gutter Roll Forming Machine Aluminium Gutter Profile Making Machine

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RG
Certification :	CE, SGS, ISO
Price :	negotiable
Supply Ability :	10 sets/month
Delivery Time :	60 days after deposit

Add to Cart

Product Details
Company Profile

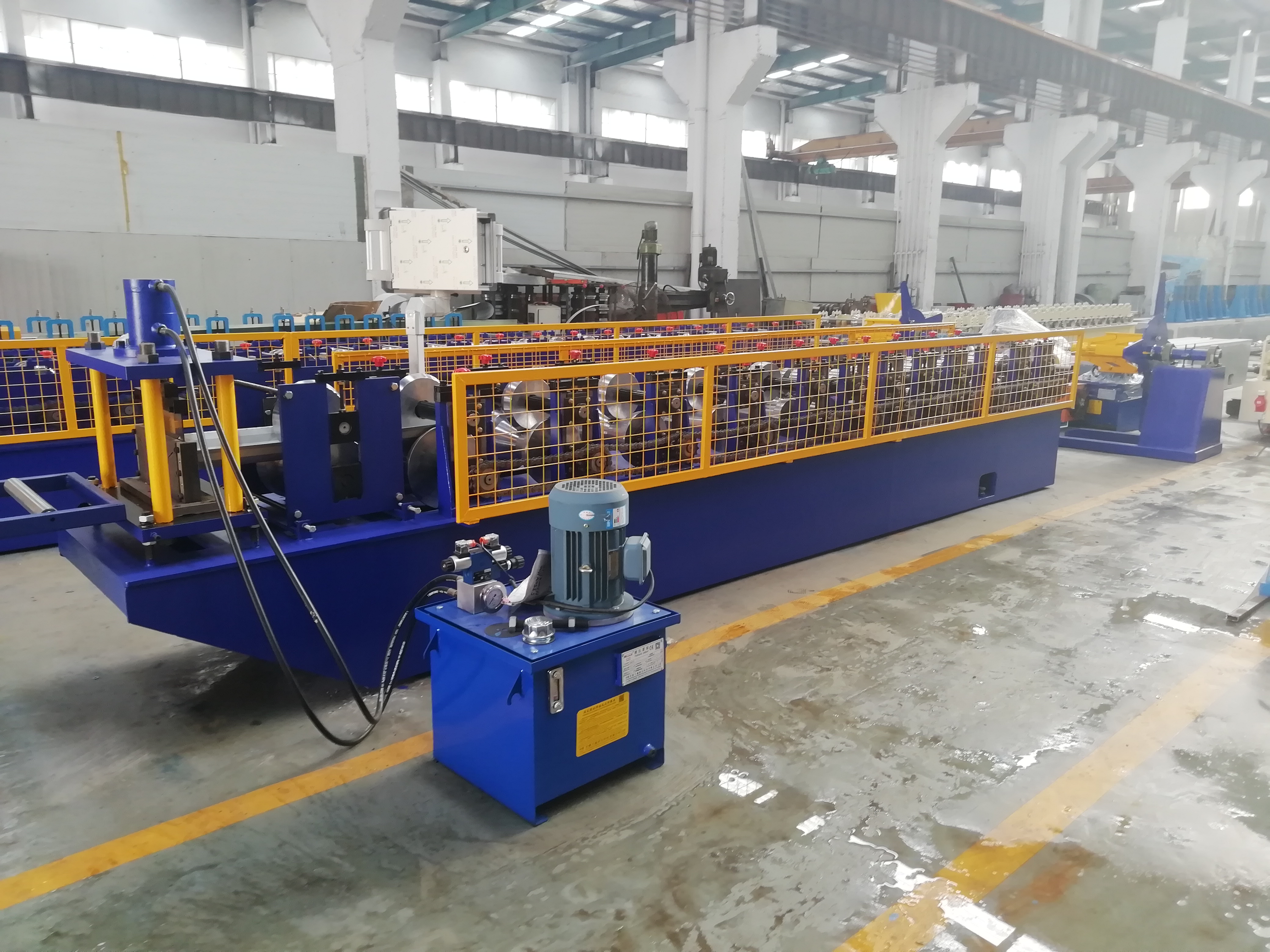

Automatic Rain Spout Gutter Roll Forming Machine Aluminium Gutter Profile Making Machine

Automatic Customized Rain Spout Gutter Roll Forming Machine Aluminium Gutter Profile Making Machine

1. Technical Parameter

Gutter roll forming machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):0.3-0.8
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	8-10	Or according to your requirement
3	Forming station	16	According to your profile
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	China famous brand	Siemens
6	PLC brand	Delta	Siemens/Panasonic
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers’ materail	Steel #45	GCr15
10	Station structure	Wall plate	Forged Iron station Or Wall panel structure
11	Punching system	No	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Or according to your requirement
14	Machine color	Industrial blue	Or according to your requirements

2. Flow Chart

The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.

3. Gutter profile drawing

4. Gutter Machine Description

1) 3 Ton Mannual Decoiler:one set

Mannual Decoiler steel coil inner bore shrinkage and stop

Max Feeding Width:300mm

Coil ID Range:508±30mm

Outside Diameter:1200mm

2)Hydraulic cutting device

Leveling device will make the product more beautiful

Hydraulic motor: 3KW ;Cutting pressure: 0-16Mpa Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree The cutting power is provided by the main engine hydraulic station

3)PLC Control System

Control the quality and cutting length automatically input the production data(Production batch,pcs, length,etc.)on the touch screen,

It can finish the production automatically.

Combined with:

PLC,Touch screen,Inverter ,Encoder,etc

4) 4Meters Out put table

Un-powered,Two units,with rollers on it for easy movement
