2.0mm Galvanized Steel Rack Roll Forming Machine 30m / Min Speed Upright Mesh Deck

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-DR
Certification :	CE
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	60days after deposit

Add to Cart

Product Details
Company Profile

2.0mm Galvanized Steel Rack Roll Forming Machine 30m / Min Speed Upright Mesh Deck

1.5-2.0mm Galvanized Steel 0-30m/Min Speed Upright Rack Mesh Deck U Channel Roll Forming Machine

U channel machine Technical Parameter

Name	Items	Specifications
Material of coil	Material Thickness	1.5-2mm Galvanized steel
Forming system	Rolling Speed	0-30m/min
	Roller Stations	About 11 stations
	Roller Material	Gcr15 Steel with quenching 60mm shaft
	Shaft	60mm
	Maim Motor Power	11kw
	Hydraulic cutting Power	7.5kw
	Electrical parts	Schneider
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase or 380V
	Control System	PLC Delta
	Weight	About 4.5 tons
	Way Of Drive	2 inches single chain
	Size of machine	Length 8000mm* Width 800mm* Height 1000m

U channel machine components

S.N	Equipment name	Quantity
1.	3T automatic un-coiler	1 set
2.	Feeding with guide	1 set
3.	Main roll forming machine	1 set
4.	Hydraulic non stop cutting	1 set
5.	Control system (including control box)	1 set
6.	4 meters out table	1 set

Working Flow of U channel machine

Decoiler----Feeding with guide--Roll forming--- hydraulic cutting---Run out tables

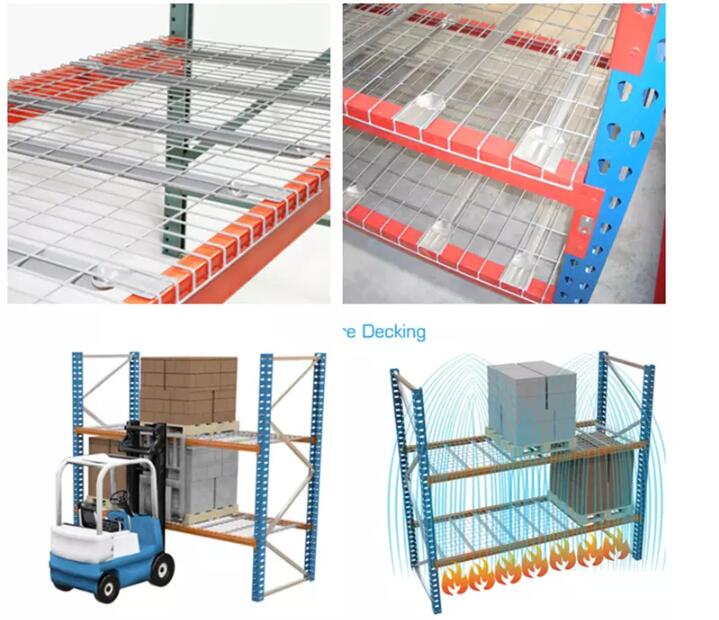

Profiles of U channel
