MP89 MP100 Tunnel Corrugated Steel Silo Roll Forming Machine



Technique parameter

1 Materials: 1.8-3mm galvanized coils, Max Feeding width: 1220mm

2 Forming steps: about 20 stations/ about 20 stations

3 Material of rollers: Gcr15 steel precision-machined, high frequency quenching HRC58-62,

4 Material of main shaft : 45# high quality steel (diameter＞￠50)

5 Cutting: hydraulic cutting; quenching HRC58-62

6 Electronic control: PLC control Siemens Brand

7 Dimension of machine: 11500mmX1350mmX800mm

8. Working speed:2-10m/min;

9 Drive system: gear box drive

10 Main motor power: 55kw

11. Punching moulds: 3 sets of punching dies at one time

12. Curving machine: Curving continuously to make the sheets straight, the min Radius 1.8m, the Radius can be adjustable.

13. Cutting: Hydraulic cutting

14. Hydraulic station power 65kw, the pressure 25-30Mpa.

15. Out table: lift auto stacker

16. Total Power 150kw

17. Voltage: 220V, 60HZ, 3phases

Machine List

Advantage for Steel Silo

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable




Working Flow of Steel Silo

Decoiler--Feedingwithguide--Straighteningdevice--Mainrollformingmachine--Curving--Outputtable

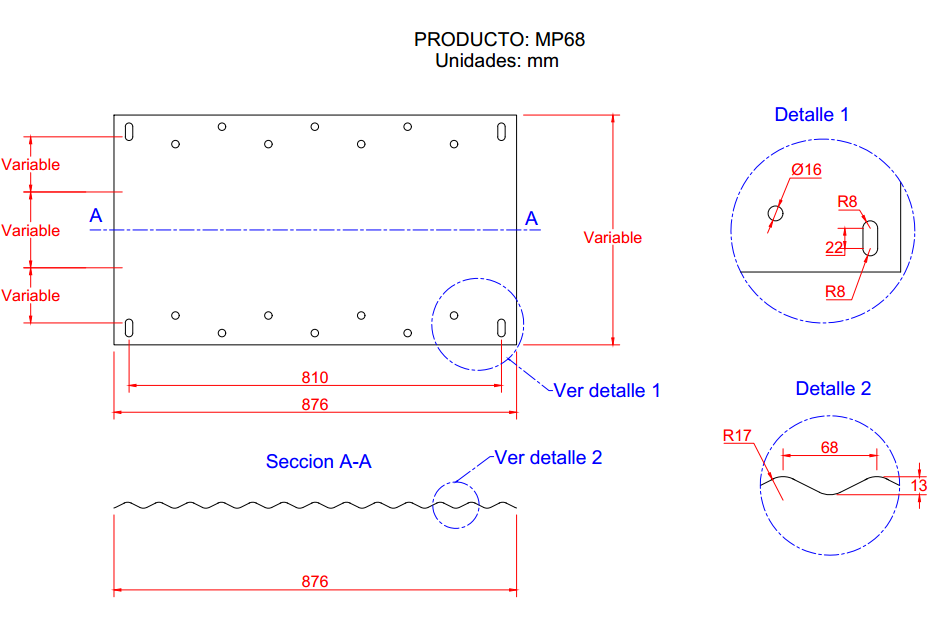

Profiles drawing of product

Application

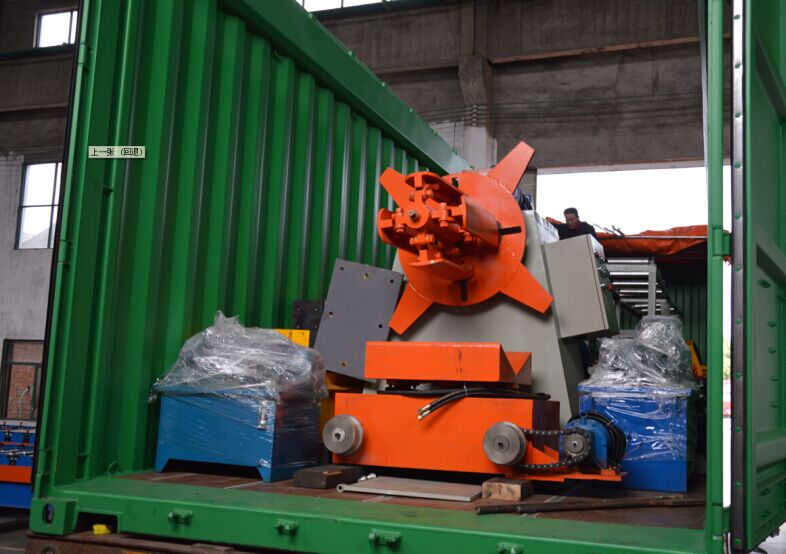

Loading Pics



Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipment:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
