60mm 90mm 150mm Strip Width Adjust Drywall Ceiling Systems Metal
Stud And Track Roll Forming Machine
1. Technical Parameter
The keel machine uses strip steel as raw material, through
continuous cold rolling, to produce complex cross-section profiles,
using PLC control, simple operation, integrated machine equipment,
saving space
| 3 tons manual decoiler | 1 set |
| Servo feeder | 1 set |
| Press punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Electric Control box system | 1 unit |
| 4M Passive out table | 1 unit |
| Safety cover | 1 unit |
| Spare parts | 1 package |
2. Machine Components
1. Main roll forming machine
A. Machine main motor power: 5.5kw
b. Number of forming wheel rows: 12 rows
c. Forming wheel material: Cr12Mov heat treated surface with hard
chrome plating
D. Spindle diameter: 60mm
E. Main shaft material: 45# steel, heat treated (quenched and
tempered)
F. The thickness of the vertical plate of the discharge rack: 40mm
g. chain drive system
H. Forming machine base: 30mm steel plate welding
i. Punching and shearing die material: Cr12Mov heat treatment
2. Electrical control
A. plc[Delta]
b. Inverter [Delta]
c. Length Encoder [OMRON]
D. Remote control host
3. Hydraulic system
A. Hydraulic pump station: 4w
b. The electromagnetic valve
c. hydraulic cylinder
3. Application
Typically used in corridors, bathrooms, kitchens and fire tunnels a
spanning system can overcome a lack of supporting structure above
by providing a ceiling joist to which plasterboard or other lining
materials can then be fixed.
4. Working flow
Decoiler--servo feeding- press punching for the holes and
notch--roll forming-- hydraulic cutting- out put tables

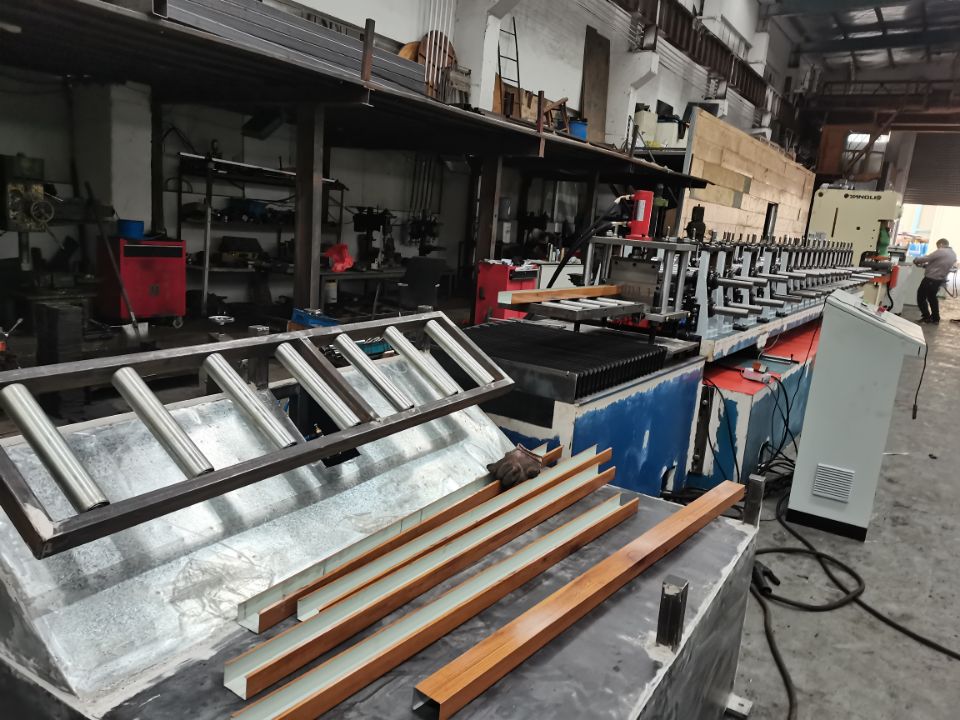

5. Machine picture
Light steel frame machine is to make the wall strcuture or ceiling
system, it is used to plaster board, gypsum board and other
decorative finishes lightweight board.
Products made by this machine are suitable to use in hotels,
theaters, shopping malls, factories, office buildings, old building
renovation, interior decoration settings, roof and other places.
Material for this machine is galvanized steel plate, snowflake
plate and cold steel plate,we can according to customer design,
manufacture different specifications of cold-formed.
