0.5mm Aluminum Rack Roll Forming Machine PLC Control Automation Box Cover

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RS
Certification :	CE ISO 9001
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	5 set per month
Delivery Time :	75 days

Add to Cart

Product Details
Company Profile

0.5mm Aluminum Rack Roll Forming Machine PLC Control Automation Box Cover

0.3-0.8 Mm Color Coated Coil Aluminum PLC Control Customized Automation Box Cover Roll Forming Machine

1. Rolling material material: material for color coated coil, steel plate, aluminum plate. 2.
2. Rolled material thickness: 0.3-0.8mm
3. Rolled material width: 350-1250mm
4. Inside diameter of rolled material: φ500-620mm
5. Production line production speed: 3-4pcs/min (about 6m finished products)
6. product drawings see both sides signed drawings
7. precision and technical requirements of the manufactured parts: length ±1.0mm, port distance ±1.0mm, straightness 0.5mm/m, width tolerance ±1mm, punching notch position degree error: ≤0.3mm;
8. Production line covers an area of approximately 25m x 3m wide x 1.8m high
9. Production line labor: 2 people
10 production line power: about 7.5KW

Box Cover Machine Components

Main Components
De-coiler	1 set
Pre-cutting	1 set
Roll forming machine	1 set
Punching device	2 sets
Hydraulic cutting and bending device	1 set
Hydraulic station	1 set
PLC control box	1 set
Safety cover	1 set
Ran out table	2 sets
Control box system	1 set

Working flow of Rack Shelf Machine

De-coiler—→Hydrauli -pre-cutting—→ Hydraulic punching notch—→Main roll forming machine—→Hydraulic cutting&Bending—→ Run out table

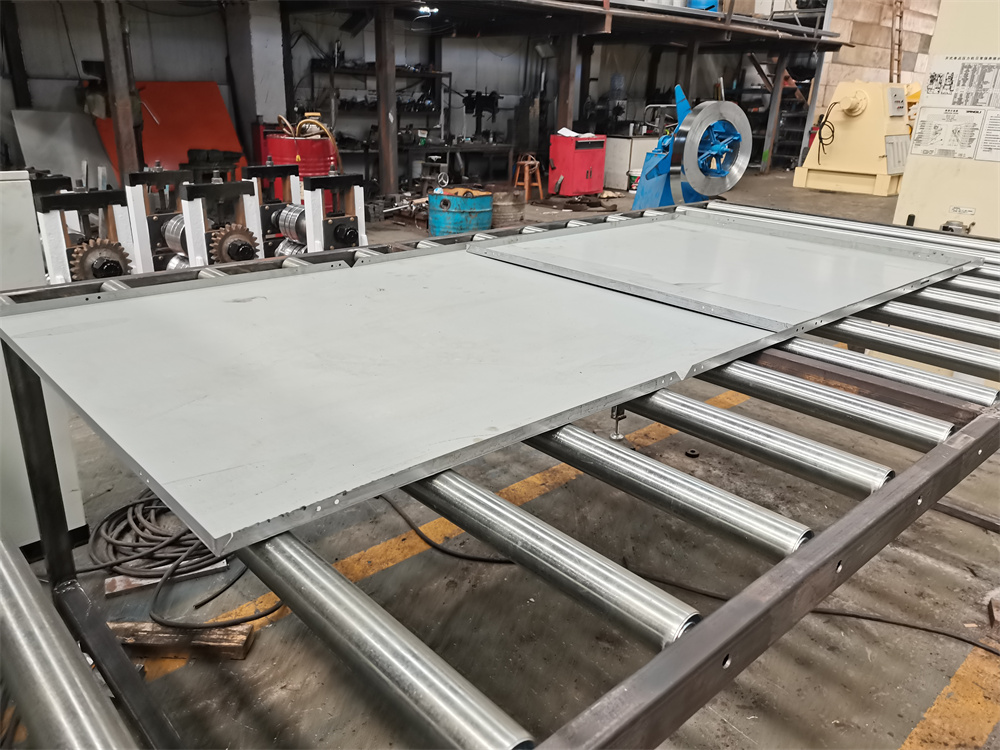

Rack Shelf Machine Picture

1. The machine adopts PLC full-range intelligent control, and the automation program is high, safe and efficient.

2. The forming frame is welded using high strength channel steel. High strength and long service life.

3. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.

4. The material of the molding die is Cr12, quenching treatment, hardness: HRC 56-62 °C.

5. The transmission structure is chain transmission.

FAQ

1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
5. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi station), half an hour.
6. What's the warranty period?
18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
