2.0 Mm Steel M Purlin Roll Forming Machine Profile Sigma Speed 10Meters/Min

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-CP
Certification :	SGS.CE.ISO
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	60 days

Add to Cart

Product Details
Company Profile

2.0 Mm Steel M Purlin Roll Forming Machine Profile Sigma Speed 10Meters/Min

10-12 Meters/Min Working Speed Automatic 1.0 - 2.0 Mm Steel Profile Sigma M Purlin Roll Forming Machine

Voltage	220V/380V/415V/440V
Dimension(LWH)	95008001200MM
Weight	8000kg
Certification	ISO9001
Warranty	2 years
Rolling thinckness	1.2-2.0mm
Feeding width	Other
Core Components	Motor, Gear, Pump, PLC
Product name	Steel Frame Purlin Machine
Advantage	Easy Operation
Capacity	12-15M/MIN
Power	11KW
Material	glavanzied steel or black steel

2. M Purlin Technical Parameter

Equipment name	Quantity
3T passive uncoiler	1 set
Hydrulic pre-punching device
Roll forming machine	1 set

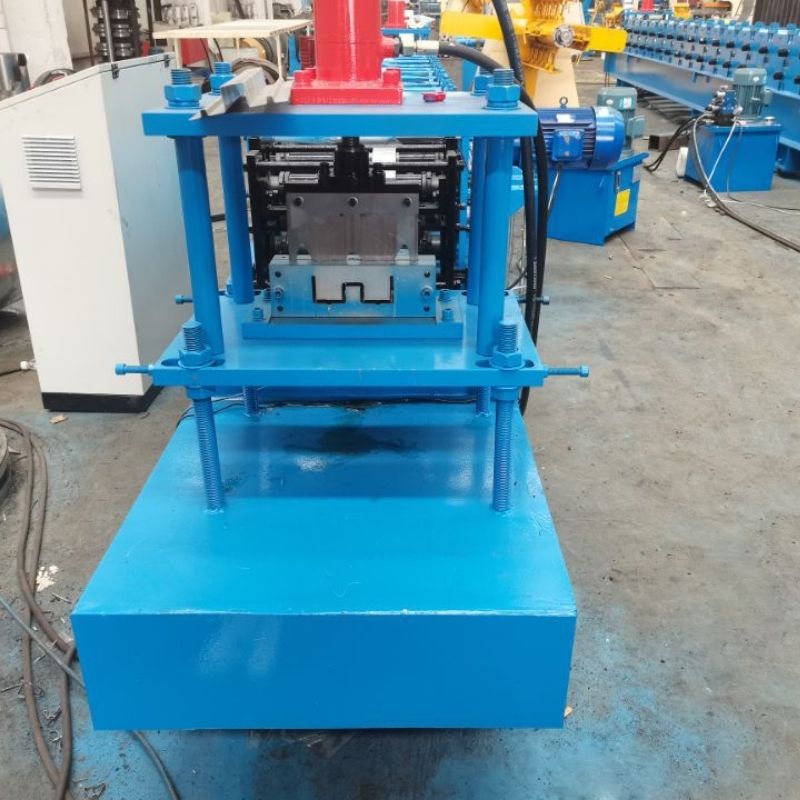

Hydraulic cutting	1 set
4 meters receiving tables	1 set
Control box	1 unit
Spare parts	1 package

3.Each part of C Purlin Machine

1. 3T passive De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm

2. Leveling device

Put the raw material(steel plate) through the beach to manufacture and process

Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi

3. Control Box

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
