    1250mm Steel Coil Cut To Length Machine 5 Tons Weight Decoiler Automatic Hydraulic

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : RF-ST
    Certification : CE, SGS, ISO
    Price : negotiable
    Supply Ability : 10 sets/month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    1250mm Steel Coil Cut To Length Machine 5 Tons Weight Decoiler Automatic Hydraulic

    1250 Mm Width 5 Tons Weight Decoiler Automatic Hydraulic Steel Coil Cut To Length Line Machine

    1. Technical Parameter


    Coil weight from 200 kg (440 Lbs) to 5 tons (11023 Lbs)
    Strip size from 200 mm (8”) to 2000 mm (80‘’)
    Material thickness from 0.2 mm up to 1.0 mm


    0.2-1.0mm*1250mm simple metal sheet coil cut to length line machine

    1.Formed Material

    PPGI,GI,AI

    Thickness:0.2-1.0mm Width:1250-1500mm(customized)

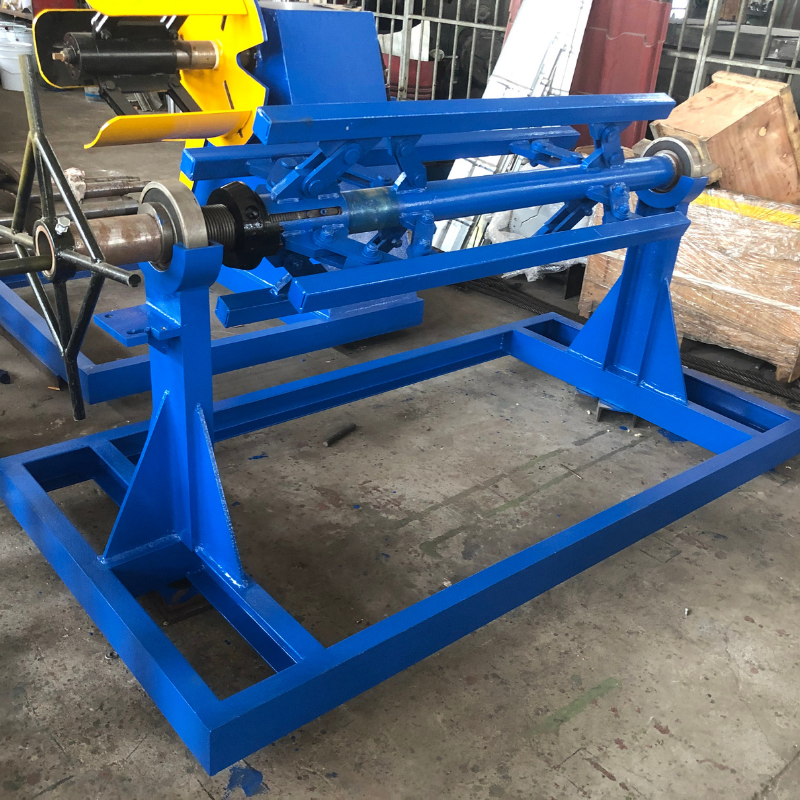

    2.Decoiler

    Hydraulic automatic decoiler

    Manual decoiler(will give you as free)

    3.Main body

    Leveling roller

    11pcs,up 5 down 6,depends on request too

    Diameter of shaft

    70mm solid shaft

    Slitting blade

    4 pcs or as request

    Machine frame

    350 H steel

    Drive

    Gear transmission

    Cutting type

    Hydraulic cutting

    Cutting blade material

    Cr12mov with quenched treatment

    4.Power

    Motor Power

    5.5KW

    Hydraulic power

    5.5KW

    5.Voltage

    380V 50Hz 3Phase

    As your requirement

    6.Control system

    Electric Box

    Customized(famous brand)

    PLC

    Automatic production of the whole machine. Can set batch, length, quantity, etc.

    18.Forming Speed

    0-20m/min

    The speed depends on the shape of the tile and the thickness of the material.



    2. Cut to length line Work Process:

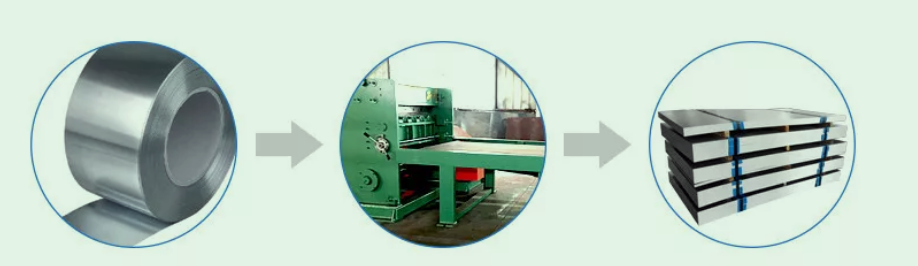

    How does coil cut-to-length line work?
    Coil cut-to-length lines work by taking metal coils or rolls from a metal mill and turning them into flat metal sheets of your specifications. These rolls are fed into the coil cut-to-length line which unspools, flattens, cuts, and then stacks them as flat metal sheets. Coil cut-to-length lines are an effective tool for producing sheet metal for your business.We offer light, medium, and heavy cut-to-length lines, each suited for your specific workloads.






    3. Cut to length line machine description

    The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance.

    We can customize the Cut-To-Length line according to your requirement, there are several variables you should provide: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.

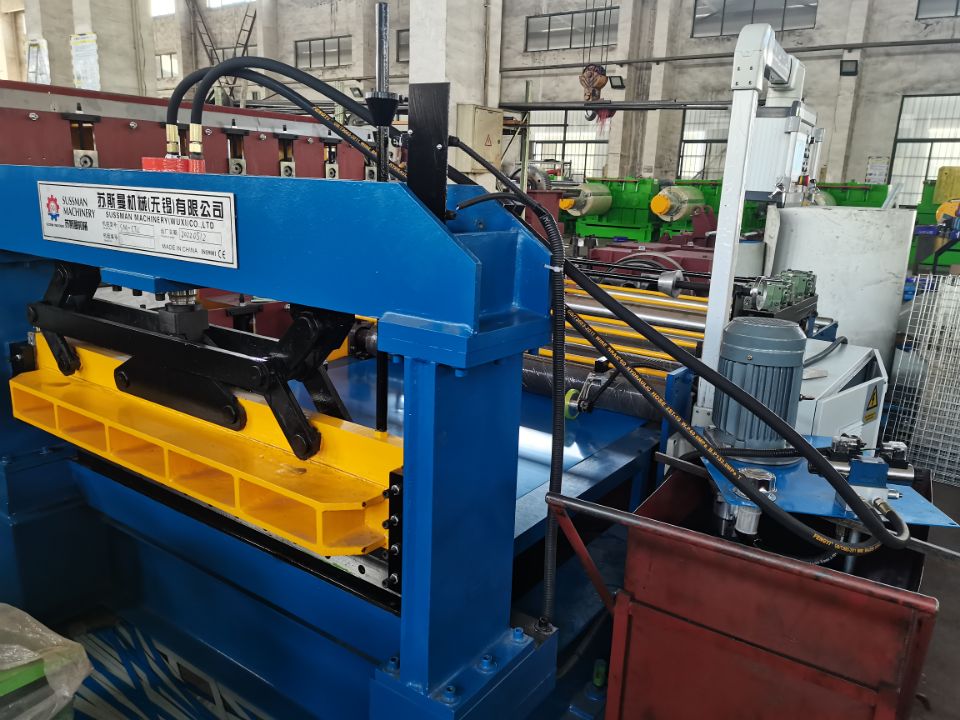

    4. Composed Device


    1. Manual decoiler


    2. Hydraulic cutting


    3. Out put table


    5.Sussman Machinery


    Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it's always design and produce various type profile of roll forming machine. The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects.

    Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand. Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is coving in 30 provinces of China and worldwile.

    The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better. The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles. Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
