    Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE ISO SGS
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 90 days after deposit
    • Product Details
    • Company Profile

    Double Layer Roof Sheet Roll Forming Machine 0.3mm For Columbia

    0.12mm-0.3mm Thickness Double Layer Roll Forming Machine for Columbia​


    This machine is made for a customer from Columbia


    Technical Parameter:


    Number
    Items
    UnitType
    RF-DL
    1
    Steel Thickness
    mm
    0.17-0.45mm, coil width 1220 and 1000mm
    2
    Forming Speed
    m/min
    0-10m/min
    3
    Roller stands
    stand
    19 stands bottom layer; 17 stands top layer
    4
    Roller Material
    mm
    45# steel, coated with chrome quenching
    5
    Shaft material and diameter
    mm
    Ф76 45# steel, coated with chrome
    6
    Main Motor Power
    Kw
    7.5
    7
    Hydraulic cutting Power
    Kw
    4
    8
    Hydraulic pressure
    Mpa
    12
    9
    Power Supply
    380V, 50HZ,3 phase(according to customer)
    10
    Tolerance
    mm
    1.5
    11
    Material of cutting
    Cr12mov HRC60-62
    12
    Control system
    PLC with touch screen


    Working Flow:


    Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting


    Profile Drawing

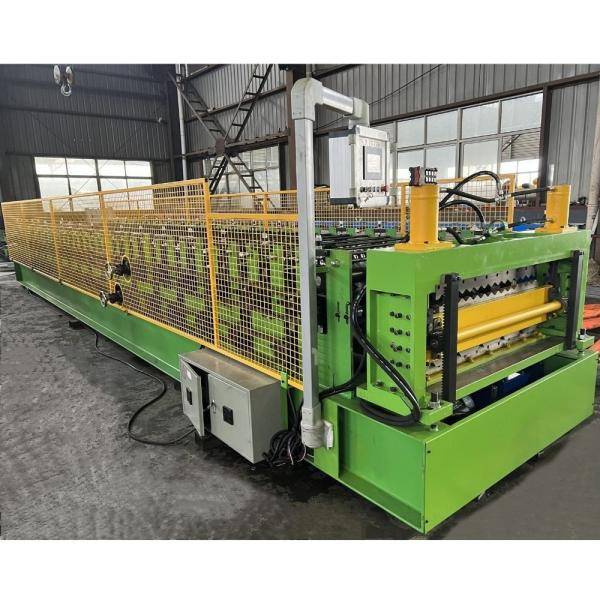

    Machine Shows

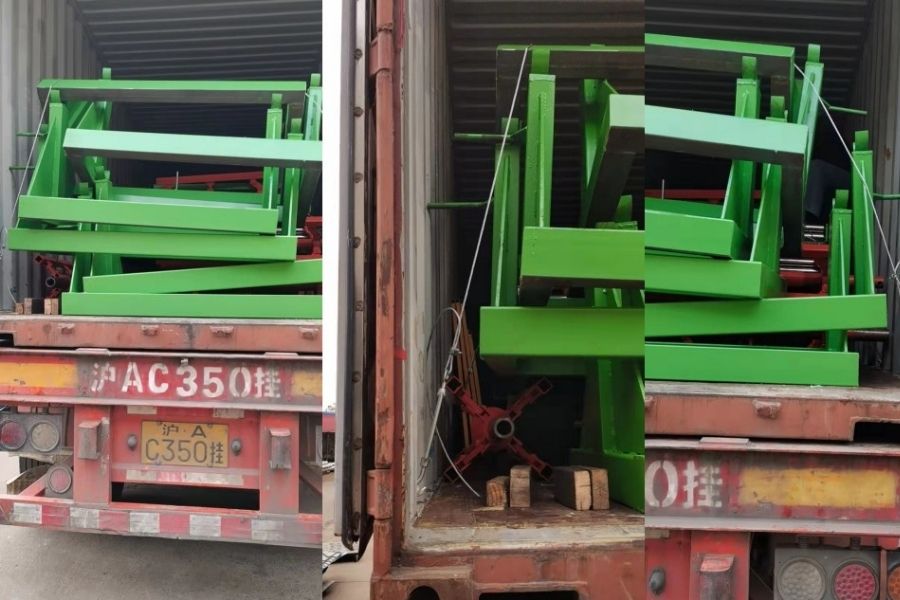

    Loading Pictures
