0.3mm - 0.8mm Roof Panel Roll Forming Machine 5.5Kw Clip Lock

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RP
Certification :	CE ISO SGS
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	65 days after deposit

Add to Cart

Product Details
Company Profile

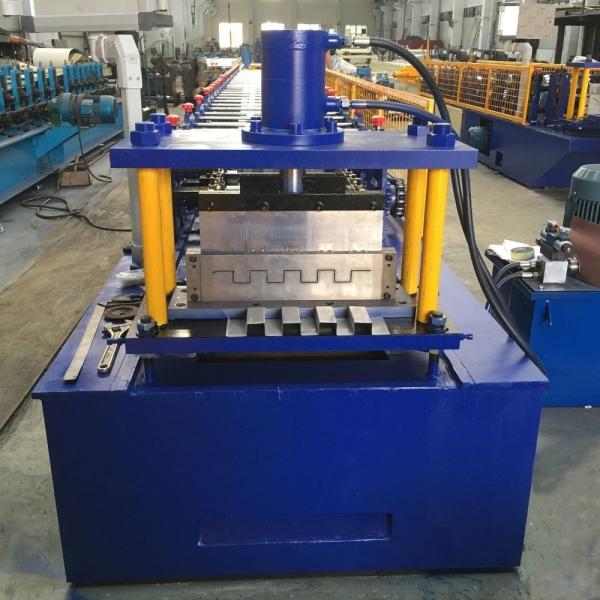

0.3mm - 0.8mm Roof Panel Roll Forming Machine 5.5Kw Clip Lock

0.3mm-0.8mm Klip Lock Clip Lock Roof Panel Roll Forming Machine

Technical Parameter

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	10-12m/min
1.2	Rolling thickness	0.4-0.8mm
1.3	Raw material	Galvanized steel coils or PPGI
1.4	Main motor	7.5kw
1.5	Hydraulic motor	5.5kw
1.6	dimension	7500×700×1000(mm)
1.7	Roller stations	About 25 stations
1.8	Roller material	45#forge steel, coated with chrome
1.9	Shaft diameter	Φ70mm,material is 45# forge steel
1.10	Transmission	By chain 1 inch
1.11	Material of chain	45# forged steel with frequency quenching, 12A
1.12	Material of cutting	Cr12Mov with quench HRC58-62°
1.13	Tolerance	6m+-0.5mm
1.14	Frame	H type steel
1.15	Voltage	380v, 50hz, 3phases

Main Components

No	Name	Type	Quantity
1	5 ton hydraulic de-coiler	RF-GT15-360	1 set
2	Main roll forming machine	RF-GT15-360	1 set
3	Control box	RF-GT15-360	1 unit
4	Hydraulic station	RF-GT15-360	1 unit
5	Out tables	RF-GT15-360	2 units
6	Safety cover	RF-GT15-360	1 unit

Glazed tile working flow

Profile Drawing

Application

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
