    Stainless Steel Coil Metal Embossing Machine 10m/Min Speed 0.05 - 0.25Mm Automatic

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RM
    Certification : SGS, ISO9001, CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    Stainless Steel Coil Metal Embossing Machine 10m/Min Speed 0.05 - 0.25Mm Automatic

    10m/Min Speed 1250 Mm Width 0.05-0.25 Mm Thickness Automatic Stainless Steel Coil Metal Embossing Machine


    Characteristic


    The metal sheet emsbossing machine can help you emboss different pattens on the metal which could be used for many building, such as: wall, panel or others.

    The steel sheet embossing rollers fuctions main by the two big rollers, there are patterens on the rollers, so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.

    Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing, and also be formed by the full automatic by PLC controling box.


    1.Uncoiling Machine


    1.Outline data:About 2000×900×1350mm(Length× Width× Height)

    2.coiled material mode:Φ200×1200mm air swelling shaft

    3.support the weigh: ≤1000kg

    4.Side with brake systems: Magnetic powder brake


    2.Embossing Machine


    Product Name

    Metal embossing machine

    Material Specification

    stainless steel

    Thickness

    0.05-0.25 mm

    Max. Coil Width

    1250mm

    Working Speed

    0-8m/min

    Run Direction

    Both directions

    Power Requirement

    Main motor power:4kw

    Machine Dimension

    About 2400mm*900mm*1300mm

    Total Weight

    About 1500kg

    Voltage

    380v/3phase/50HZ or as customer's requirement

    Roller Material

    45# steel

    Width of Roller

    1200mm

    Embossing Pattern

    As per the samples or the customer’s requirement


    3.Recoiling Machine


    1.Outline data: 2600×900×1350mm(Length× Width× Height)

    2.coiled material mode:Φ200×1200mm air swelling shaft

    3.support the weigh: ≤1000kg

    4.Motor power: 240V 60Hz 3Phase 100 Nm torque motor,Speed: 0-18m/min

    5.Gas rising axis side can be fine-tuned before and after


    4. Flower Pattern


    5.Applications


    Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations, wall cladding, ceilings, bathrooms, kitchens and balconies.

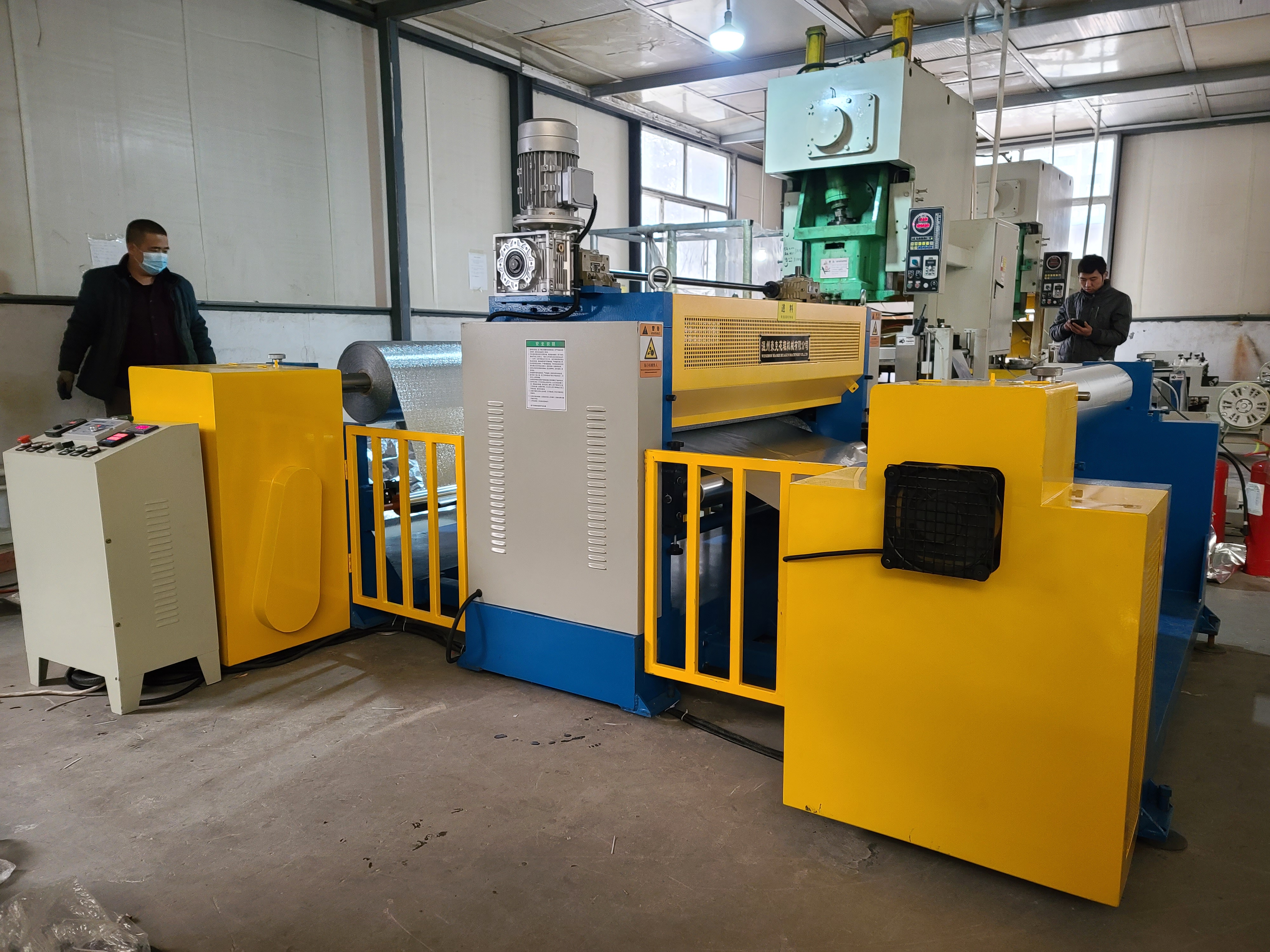

    6. Embossing Machine Photo
