12 Meters/Min Garden Fence Rail Roll Forming Machine 7.5KW Motor Power

10-12 Meters/Min Garden Fence Rail Roll Forming Machine

The fence system includes fence post, fence rail track and fence panel. It needs 3 sets of roll forming machines.

The fencing post roll forming machine is a complete production line
for the manufacture of metal fencing profiles with notched edge or
slotted holes for supporting on a metal fencing system. The fencing
post and rail are basic elements of a fencing security system,
widely used for house garden, school, factory, etc.

The fencing post consists:

Uncoiling-Feeding with guide-Hydraulic punching-Roll
Forming-Cutting-Products Collecting

Technical Data

	Items	Specifications
Material of coil	Material Thickness	0.5-0.7mm galvanized, G235-350Mpa
	Un Coiler	3 tons manual
Forming system	Rolling Speed	About 10-20 m/min
	Roller Stations	About 19 stations
	Roller Material	45# Steel with quenching 60mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	3 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC with touch screen
	Weight	About 3.5 tons
	Way Of Drive	1 inch single chain

Machine List:

3 ton manual de-coiler	1 set
Feeding with guide	1 set
Main roll forming machine	1 set
Hydraulic cutting device	1 set
PLC Control box	1 set
Hydraulic station	1 set
4m out table	1 set
Safety cover	1 set

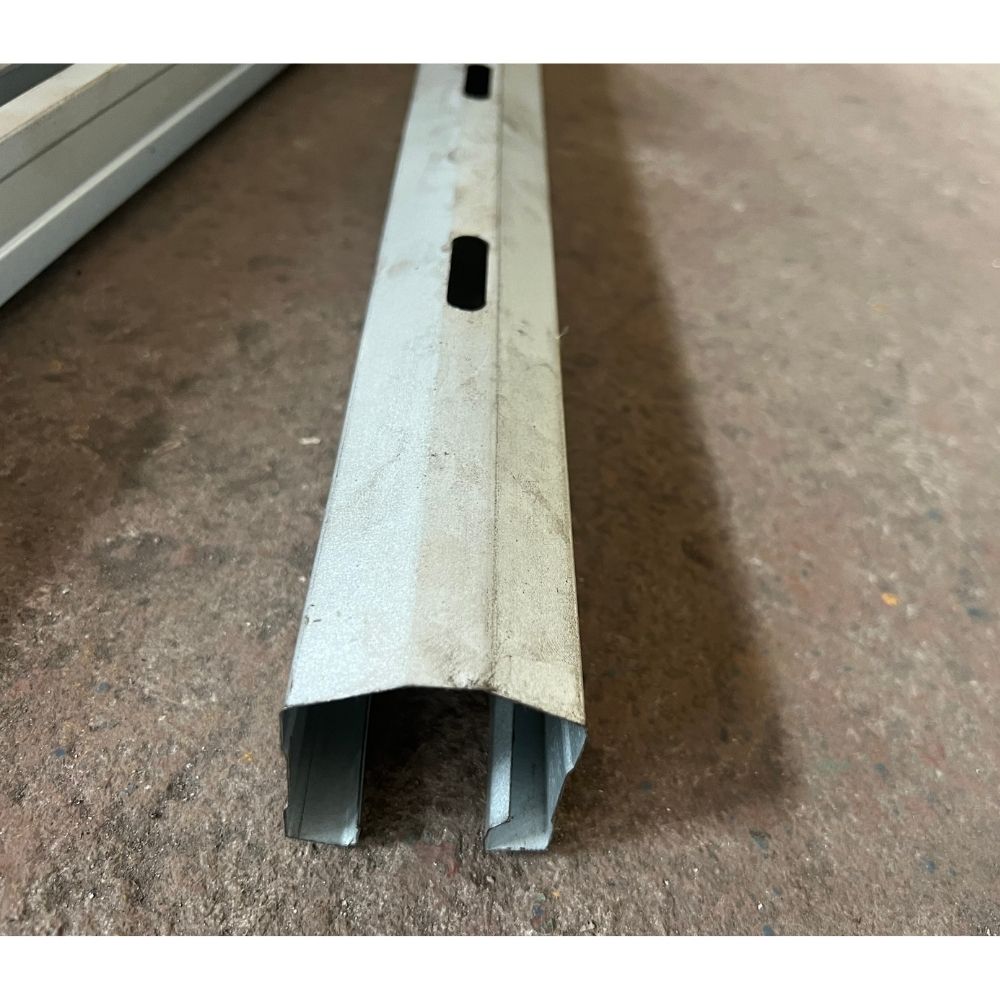

Profile Drawing:

Application:

Advantage

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
