0.3mm - 0.8mm R Panel Roll Forming Machine PPGI Metal Sheet Roof Tile

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RP
Certification :	CE ISO SGS
Price :	negotiable
Payment Terms :	T/T L/C
Supply Ability :	10 sets per months
Delivery Time :	90 days after deposit

Add to Cart

Product Details
Company Profile

0.3mm - 0.8mm R Panel Roll Forming Machine PPGI Metal Sheet Roof Tile

0.3mm-0.8mm Thickness R Panel Roll Forming Machine, PPGI Metal Sheet Roof Tile Making Machine

R Panel profile drawing is the hottest sale in America. It is widely used in roofing system.

Technical parameter:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	12-15m/min(not include cutting time)
1.2	Rolling thickness	0.3mm-0.8mm
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.6	Dimension	About 8000×1600×1200(mm)
1.7	Effective width	1025mm
1.8	Feeding Coil width	1220mm
1.9	Roller stations	About 20 stations
1.10	Roller material	45#forge steel, coated with chrome
1.11	Shaft diameter	Φ76mm
1.12	Transmission	By chain 1.2 inch
1.13	Material of chain	45# forged steel with frequency quenching, 12A
1.14	Material of cutting	Cr12Mov with quench HRC58-62°
1.15	Tolerance	10m+-1.5mm
1.16	Hydraulic station	4kw

working flow

Profile Drawing

Machine Shows

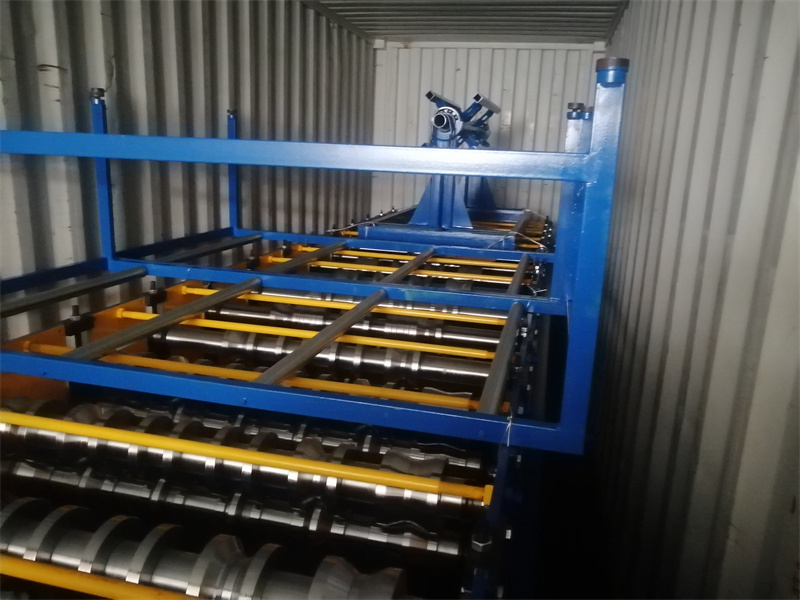

Loading Pictures:

Our After-Sales Service Commitments

Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipments:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;

2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.

3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;

4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
