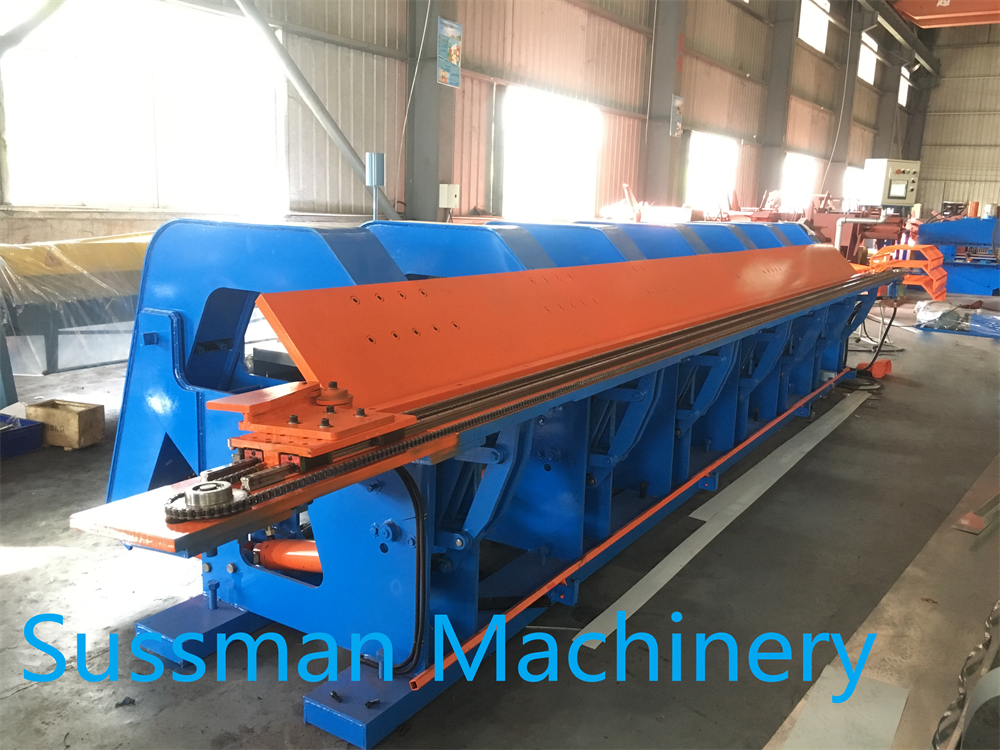

Bending Thickness 1.0 Mm Cnc Slitting Folding Machine Roof Sheet Bending Machine Bending Angle 125 Degree

Technical Parameter

1) Thickness: Max.1.0mm Aluminum, steel

2) Max. Bending length: 8000mm

3) Driven by Servo motor

4) Working length: 4000mm, 6000mm

5) Press clamp:7 units

6) Weight:About 5000 Kg

7) Motor for hydraulic station:11KW

8) Bending range:0-125 degree

9) Depth of throat:800 mm(Max. working width of material in clamp)

10) Act component of worktable: hydraulic double oil cylinder

11) Circle time: Max. bending limit take about 12 seconds

12) Outline dimension length×width×height:9395×1842×1375mm

Parameter of folding and slitting capability

PLC Control System

1)System:Siemens PLC Control

2)Numerical control locating system:Siemens PLC Control

3)Operating table:Touch Screen

4)Angle programmer:Encoder test

5)Slitting control:Manual

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
