    6 Meters Metal Bending Machine Roof Sheet Folding Thickness 1.0 Mm

    Ask Lasest Price
    Brand Name : SUSSMAN
    Model Number : SM-RH
    Certification : SGS.CE.ISO
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    6 Meters Metal Bending Machine Roof Sheet Folding Thickness 1.0 Mm

    4 Meters 6 Meters Metal Bending Machine Roof Sheet Folding Machine Bending Thickness 1.0 Mm


    Technical Parameter


    The numerical-control folder&slitting machine is designed for processing the metal panels, it is suit for the long workpiece.

    The bending angle is made by the rotation of lower beam.
    This rotation is measured by Encoder sensor and accurately operated by PLC control system automatically.
    You can set angle what you want to do on touch-screen and accurately formed by PLC-intelligent control system.

    METAL FOLDING MACHINE


    Machine specification

    Main power

    kW

    11 kW

    Machine Weight

    Tons

    5 tons

    Machine Dimensions


    m

    9.0m x 1.8mx1.4m


    Raw material

    Bending Thickness

    mm

    0.8-1.0mm

    Length

    mm

    9m

    Material Strength


    G300-G550


    Production specification

    Bending degree


    15º-125º

    Tolerance of bending step


    < 2 º

    Control System


    PLC

    Bending system

    Hydraulic system with proportional valves
    Bending automatically follow the installed angles on touch-screen


    PLC Control System

    1)System:Siemens PLC Control

    2)Numerical control locating system:Siemens PLC Control

    3)Operating table:Touch Screen

    4)Angle programmer:Encoder test

    5)Slitting control:Manual



    Working Flow of Roll Forming Machine


    Program ----- set workpiece ------ back fender locating ------ workpiece clamping ----- bending ----- loose workpiece ---- overturn ---- back fender locating ---- workpiece clamping ----- loose workpiece ---- unload


    Profile we can make

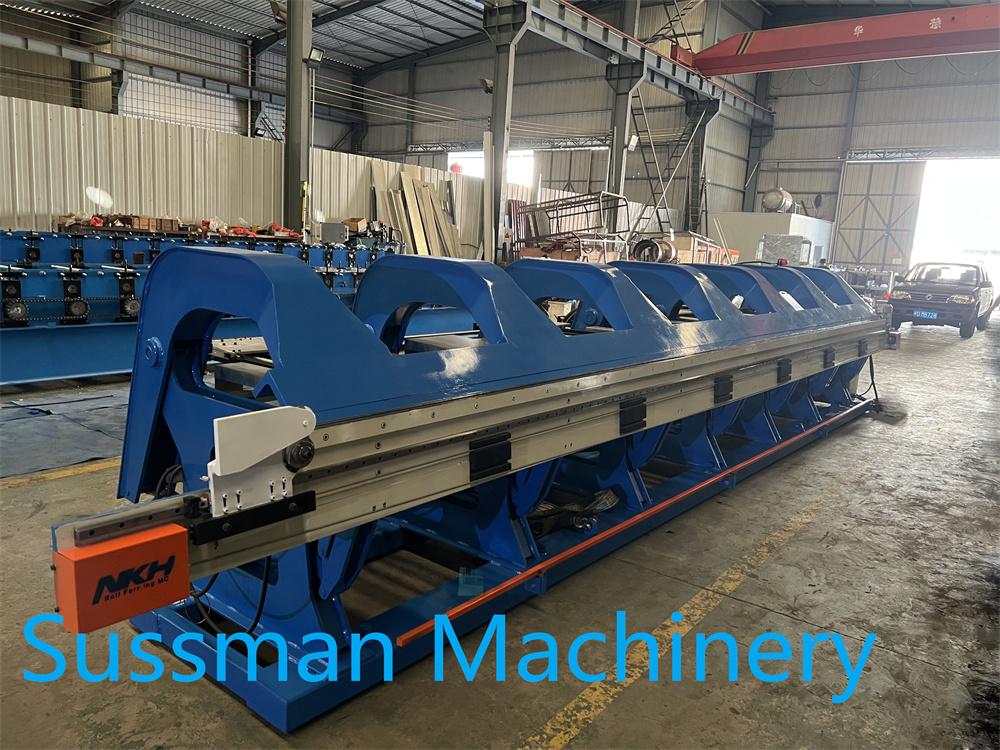

    Machine Photo
