2.5mm Thickness Checkered Plate Embossing Machine 1250mm Width Metal Steel

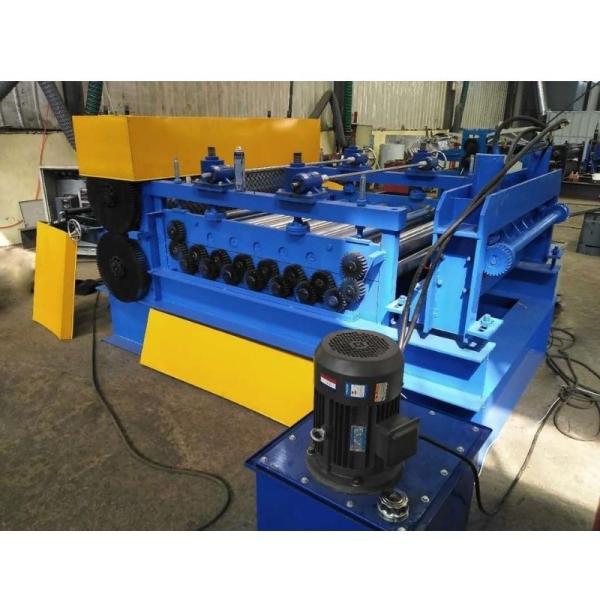

1.0- 2.5mm Thickness 1250mm Width Metal Steel Checkered Plate Embossing Machine With Leveling Device

Features for metal embossing machine

Metal sheets steel plate diamond checker pattern embossing machine is for producing embossed pattern sheets (Pattern can be customized).The common materials used for this machine are carbon steel,middle-steel ,or galavnized material,etc
Metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension.

Model	S1000	S1400	S1600	S1900
Overall size(mm)	290012001500	330012001500	350012001500	380012001500
Roller size	φ350*1000mm	φ380*1400mm	φ400*1600mm	φ450*1900mm
Material of roller	42CrMo	42CrMo	42CrMo	42CrMo
Roller hardness	HRC55-58	HRC55-58	HRC55-58	HRC55-58
Way of embossing	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same
Embossing regulation	By screw	By screw	By screw	By screw
Motor power(KW)	7.5	11	15	15
Line speed	0-18m/min	0-30m/min	0-40m/min	0-45m/min

The parameters of metal sheets steel plate checker pattern embossing machine

Item	Data
Roller size	400 x 1300mm
Suitable embossing sheet	Thickness: 1.0- 2.5mm Width: less than 1250mm
Material of roller	Alloy steel solid forging 42CrMo
Hardness of roller	HRC53-55
Embossing type	Male-Female type
Pressure control	Reducer pressure
Transmission type	Precision gear
Motor power	15kW, 380V, 50Hz.
Machine size	About 4000 x 1500 x 1500mm
Machine weight	5000kg

Flower Pattern
