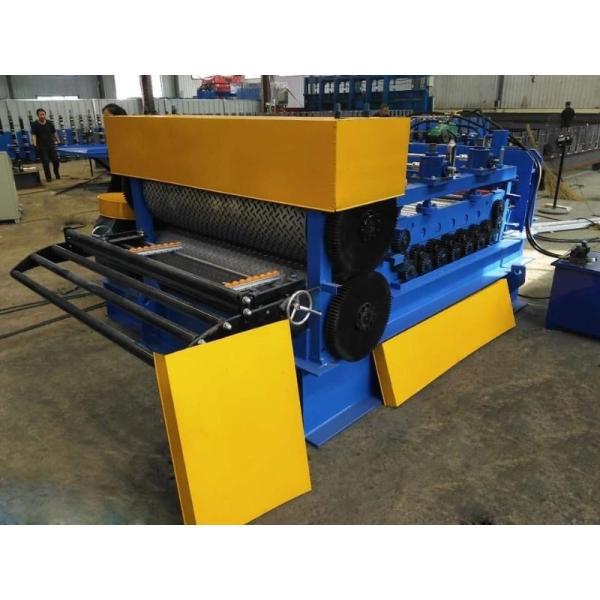

1.0- 2.5m Metal Steel Sheets Steel Plate Checker Pattern Metal Coil Embossing Machine

Features for metal embossing machine

Metal sheets steel plate diamond checker pattern embossing machine is for producing embossed pattern sheets (Pattern can be customized).The common materials used for this machine are carbon steel,middle-steel ,or galavnized material,etc
Metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension.

The parameters of metal sheets steel plate checker pattern embossing machine

· Coil Width: 1300mm maximum;

· Coil Thickness: 2.5mm maximum;

· Working Speed: 8-15m/min;

· Material of Rollers: 42CrMO alloy steel;

· Hardness of Roller: HRC58-60;

· Roller Size: 440mmx1600mm (subject to final designing);

· Main Power: 15KW;

· Depth of Patterns: Adjustable;

· PLC Control: Delta;

· Electricity: 380V/50HZ/3phase

Flower Pattern

Customer Feedback

The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises’s growing demand.
